BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor

BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor photo-1
US$ 44 - 68 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM787M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Mcmaster
Place of Origin Jiangsu, China
Model Number BMM787M
Type Micro Motor
Certification CCC, ROHS
Torque 2 N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Totally Enclosed
Output Power 500W
Continuous Current(A) 15 A
Speed(RPM) 2500 rpm
Commutation Brushless

BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



                                                  BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor

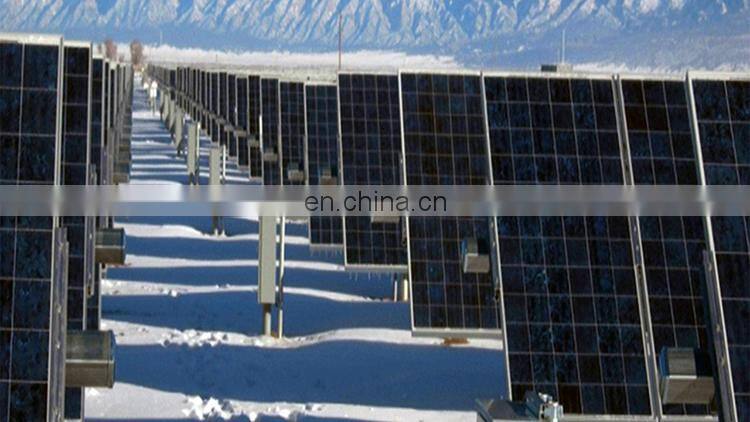

 Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC MotorBMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



Model

Voltage

(VDC)

No Load

Rated Load

Toque

(N.m)

Cogging

Torque

(Nm)

Moment of Inertia

(Kg.cm2)

Torque Constant

(N.m/A)

Power

(W)

Length

(mm)

Current

(A)

Speed

(r/min)

Current

(A)

Speed

(r/min)

BMM787M-1

48

2.47

2941

14.54

2500

2

0.16

2.8

0.166

524

96

BMM787M-2

150

1.19

2941

6.98

2500

3

0.24

4.2

0.518

785

121



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor



BMM787M Customizable 12V 24V 36V 48V 50W Up to 800W DC Brushless Motor, BLDC Motor





For more information, you can visit our website
