Product:OD 70 mm 110v 2000 rpm 3500 rpm 4000 rpm brushed high speed permanent magnet dc motor 24v
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
SPECIFICATIONS |
| VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | O.D. (mm) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
BMM309-1 | 110 | 0.09 | 4117 | 0.51 | 3500 | 0.1 | 37 | 70 | 94 |
BMM309-2 | 110 | 0.09 | 4117 | 0.51 | 3500 | 0.1 | 37 | 70 | 94 |
BMM309-3 | 110 | 0.07 | 2500 | 0.44 | 2000 | 0.15 | 31 | 70 | 110 |
BMM309-4 | 110 | 0.1 | 4375 | 0.62 | 3500 | 0.12 | 44 | 70 | 94 |
BMM309-5 | 24 | 0.85 | 5000 | 4.99 | 4000 | 0.2 | 84 | 70 | 110 |

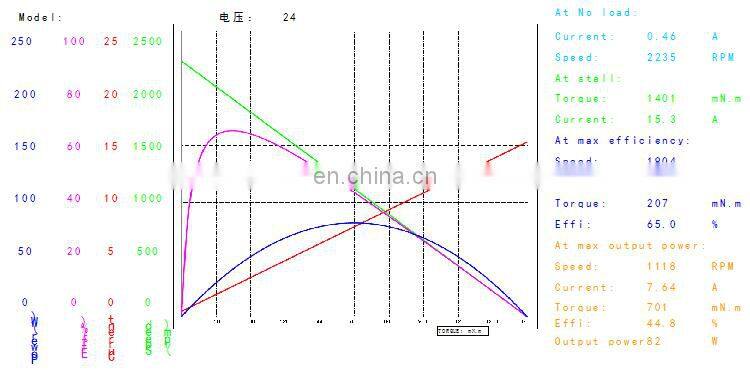

PERFORMANCE CURVE |

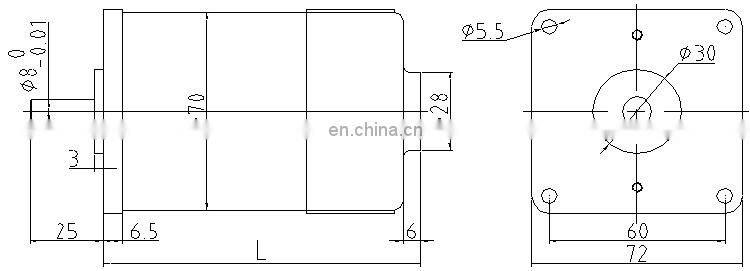

OUTLINE DRAWING |
SIMILAR PRODUCT |
| ||||||
Similar Power | BMM305 | BMM306 | BMM310 | BMM311 | BMM313 | BMM357 |
| ||||||
| BMM365 | BMM368 | BMM383 | BMM389 | BMM391 | BMM394 |
| ||||||
Similar Torque | BMM304 | BMM305 | BMM306 | BMM309 | BMM310 | BMM365 |
| ||||||
| BMM368 | BMM372 | BMM375 | BMM383 | BMM384 | BMM386 |
| ||||||
| BMM388 | BMM389 | BMM405 | BMM406 | BMM407 |
|
| ||||||
Similar OD | BMM383 | BMM384 | BMM386 | BMM388 | BMM389 |
|
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
