Home > Electrical & Electronics > Electric Motor > DC Motor > OD 120 mm 1650 Rpm Brushed Electric High Speed Permanent Magnet 48v 200 Watt dc Motor 48v BMM336

OD 120 mm 1650 Rpm Brushed Electric High Speed Permanent Magnet 48v 200 Watt dc Motor 48v BMM336

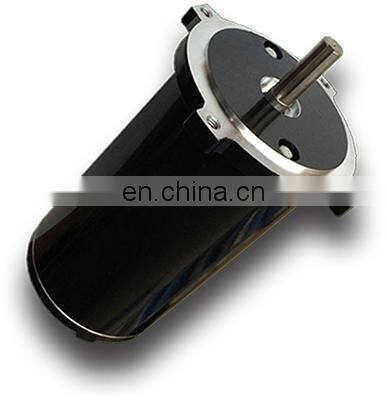

OD 120 mm 1650 Rpm Brushed Electric High Speed Permanent Magnet 48v 200 Watt dc Motor 48v BMM336 photo-1
US$ 70 - 116 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
BMM336
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name McMaster
Place of Origin Jiangsu, China
Model Number BMM336
Type Micro Motor
Certification CCC, ROHS
Torque 2 N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Totally Enclosed
Continuous Current(A) 10 A
Speed(RPM) 1650 rpm
Commutation Brush
Product Description

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336



OUR PRODUCTS



OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336

Product:OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v

 Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment, etc.

 OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336



SPECIFICATIONS





VOLTAGE

(V DC)

NO LOAD

RATED LOAD

Torque

(N.m)

Torque Constant

(N.m/A)

Power

(W)

O.D.

(mm)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

BMM336

48

1.44

1941

9.6

1650

2

0.245

200

120

222



PERFORMANCE CURVE

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336

OUTLINE DRAWING

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336



SIMILAR PRODUCT



Similar Power









BMM397











Similar Torque







BMM329

BMM351

BMM401

BMM402





Similar OD







BMM329

BMM337

BMM338







For more information, you can visit our website
Packaging & Shipping

Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336

Our Services

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336

Company Information

OD 120 mm 1650 rpm brushed electric high speed permanent magnet 48v 200 watt dc motor 48v BMM336

McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.



FAQ

1. Q: Can you provide detailed technical data and drawing?

A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

2. Q: Can I visit your factory before we place an order?

A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

3. Q: How to control the products quality in your company?

A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
