High Speed Low Torque brushless dc electric motor 3000rpm 24v bldc motor BMM707
- 10000 Piece / Pieces per Month
- Shanghai Ningbo
- T/T Credit Card
You May Like
-
High Speed Low Torque brushless dc electric motor 3000rpm 24v bldc motor BMM707
-
High Speed Low Torque brushless dc electric motor 3000rpm 24v bldc motor BMM708
-
12v brushless dc motor 4000rpm high speed bldc motor BMM727
-
12v brushless dc motor 5000rpm bldc motor BMM728
-
brushless dc electric motor 3000rpm 24v bldc motor BMM731
-
brushless dc electric motor 24v bldc motor BMM732
Product Details
Brand Name | McMaster | Place of Origin | Jiangsu, China | |
Model Number | BMM707 | Type | Micro Motor | |
Certification | CCC, ROHS | Torque | 0.36 N.m | |
Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
Continuous Current(A) | 6.5 A | Speed(RPM) | 3000 rpm | |
Commutation | Brushless |
Product Description
OUR PRODUCTS |
Product:High Speed Low Torque brushless dc electric motor 3000rpm 24v bldc motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
SPECIFICATIONS |
Model | Voltage (VDC) | No Load | Rated Load | Torque (N.m) | Cogging Torque (N.m) | Moment of Inertia (Kg.cm2) | Torque constant (N.m/A) | Power (W) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | ||||||||
BMM707 | 24 | 1.06 | 3488 | 6.54 | 3000 | 0.36 | 0.08 | 0.41 | 0.066 | 113 | 75 |

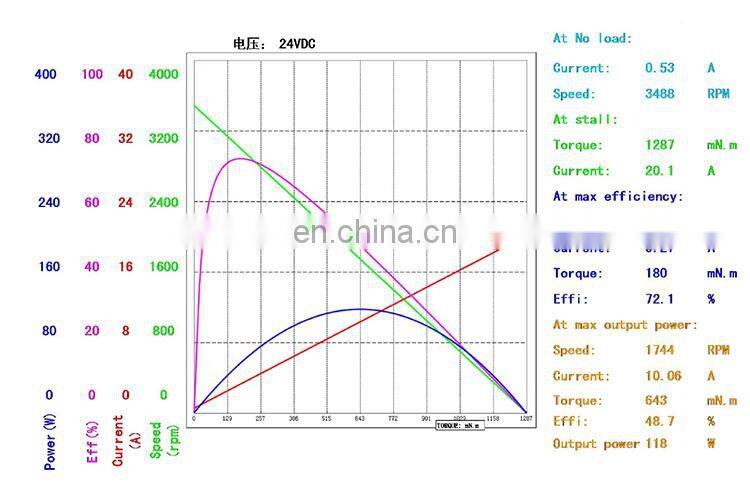

PERFORMANCE CURVE |

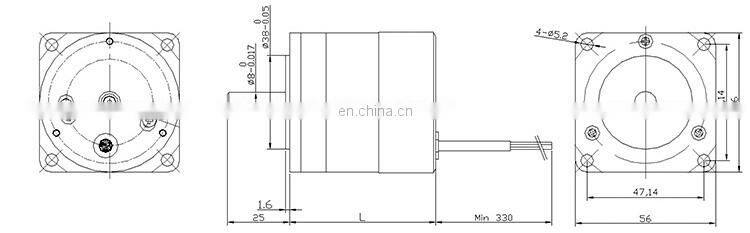

OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power |
| |||||
| BMM711 | BMM735 | BMM738 | BMM739 |
|
|
Similar Speed | ||||||
| BMM704 | BMM705 | BMM706 | BMM708 | BMM720 | BMM725 |
| MM731 | BMM738 | BMM739 | BMM740 | BMM745 | BMM776 |
Similar Torque | ||||||
| BMM720 | BMM738 | BMM739 | BMM742 | BMM747 |
|
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
