Product Details
Brand Name: | McMaster | Place of Origin: | Jiangsu, China | Model Number: | S767 |
Type: | Gear Motor | Certification: | CCC, ROHS | Torque: | 5 N.m |
Usage: | Boat, Car, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 2 |
Protect Feature: | Totally Enclosed | Continuous Current(A): | 12 A | Speed(RPM): | 370 rpm |
Commutation: | Brushless |
Product Description

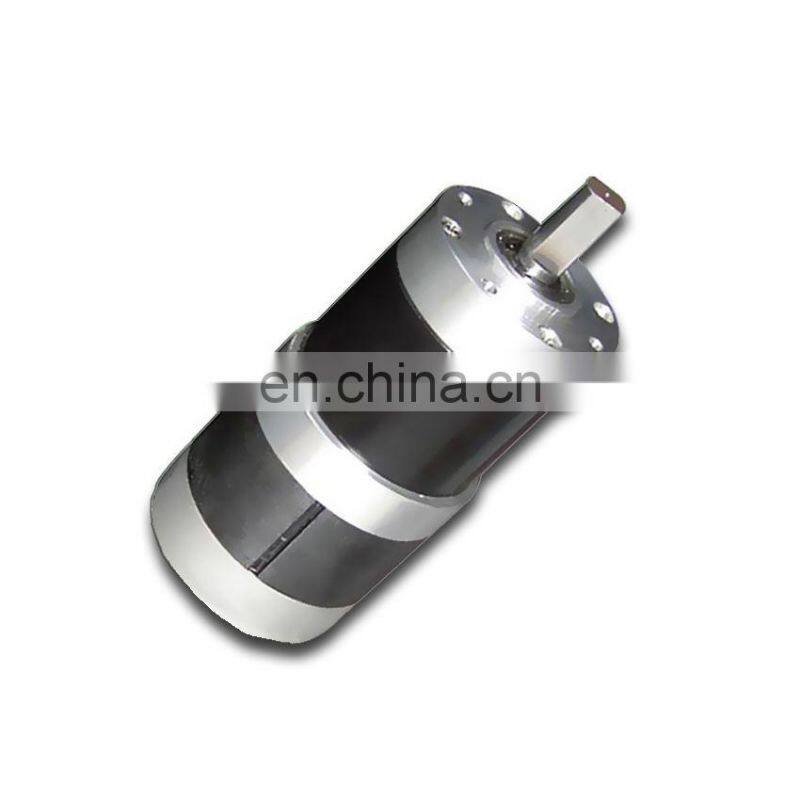

Product: S767 BLDC type 12v 24v 48V brushless 150 watt dc electric motor with planetary gearbox for robot
Brushless DC Motor 24V BLDC Moto Planetary Reduction Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Ratio | Stage | Power (W) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
S767 | 24 | 1.97 | 436 | 11.79 | 370 | 4.9 | 6.75 | 1 | 188 | 140.5 |
Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Moment of Inertia (Kg.cm2) | EMF constant (V/rpm) | torque constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | ||||||
24 | 1.77 | 2941 | 11.79 | 2500 | 0.8 | 1.414 | 0.0083583 | 0.0798 | 86 |
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
