Home > Electrical & Electronics > Electric Motor > DC Motor > 2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons

2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons

2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons thumbnail-1
2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons thumbnail-2
2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons photo-1
2020 Cheap but Good Quality 10mm Micro Linear Motor Stepping for Smart Lock,injection, Pressing Buttons photo-2
US$ 4.21 - 8.06 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
China
Model Number:
MM10-816G
Contact Supplier Request Quote Chat Now
Changzhou Mcmaster Electrics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mcmaster
Place of Origin China
Model Number MM10-816G
Certification CE
Product Description

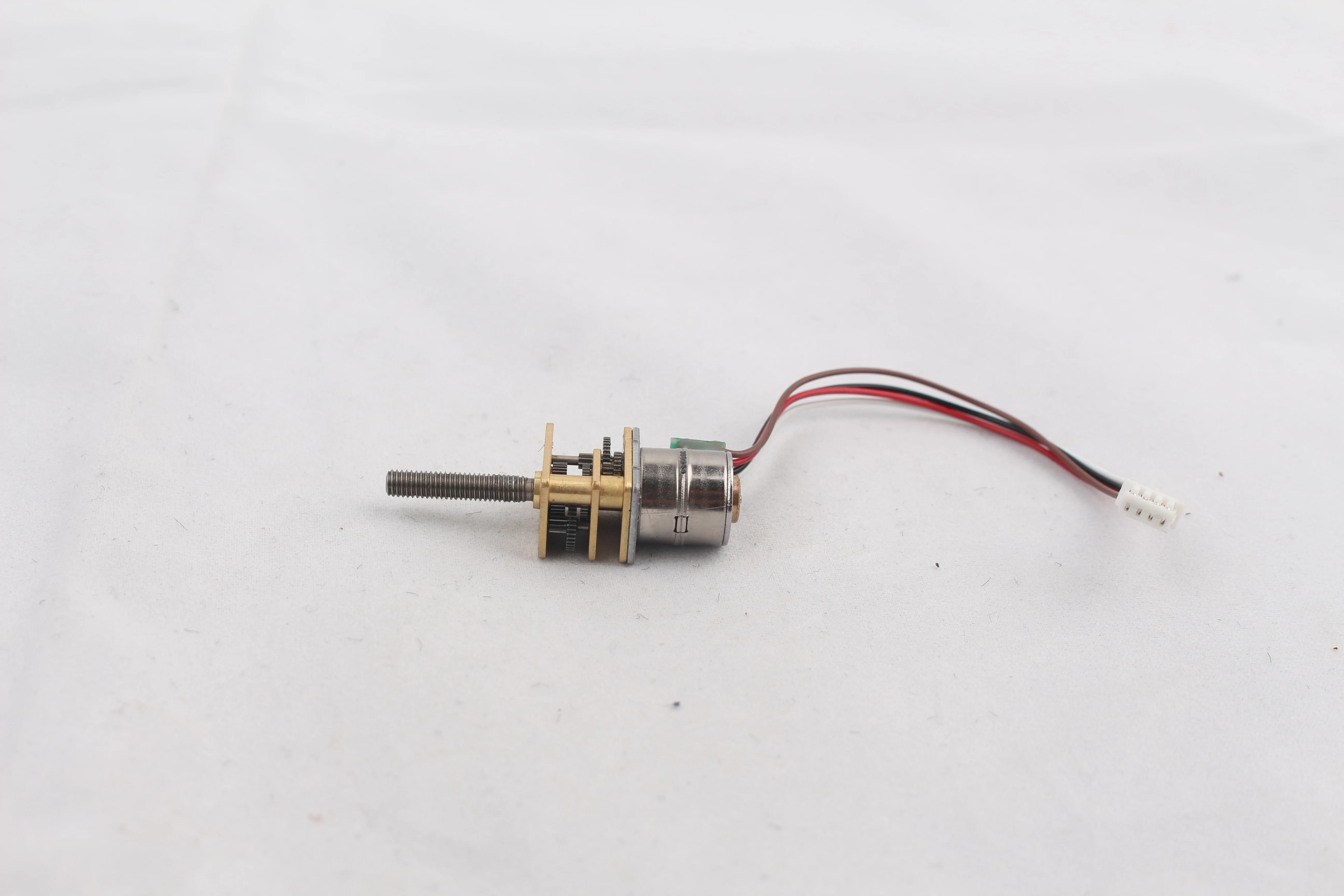

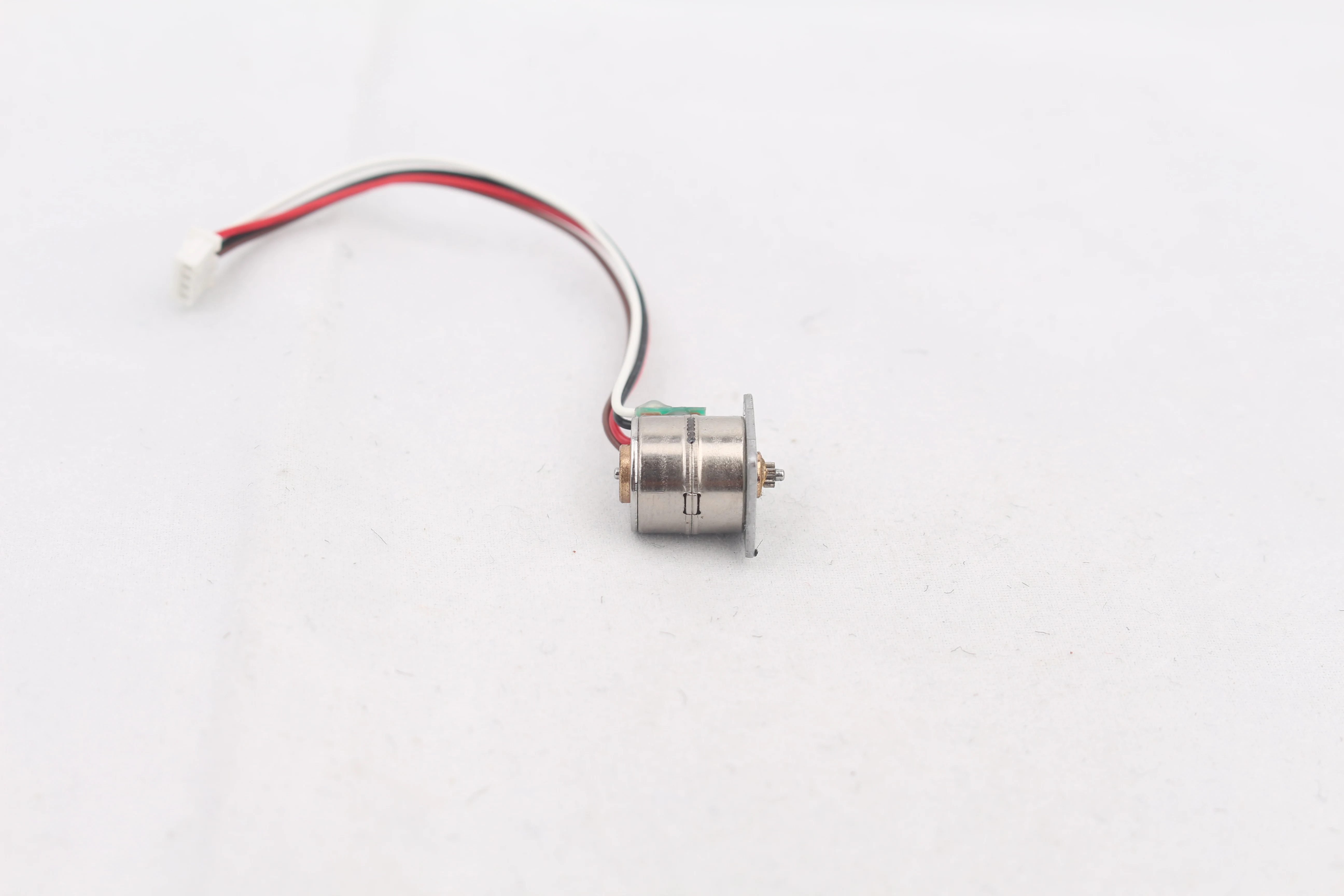

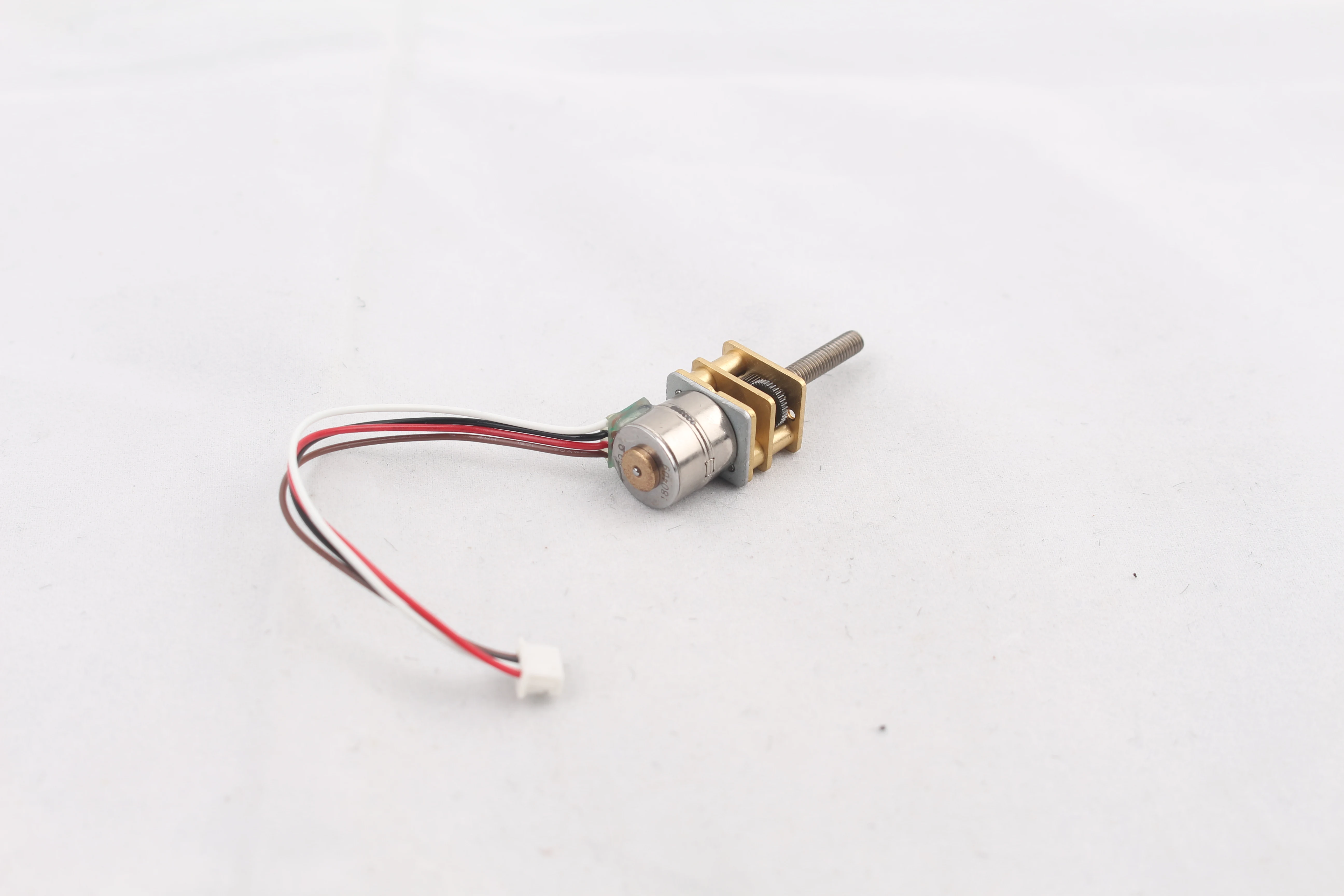

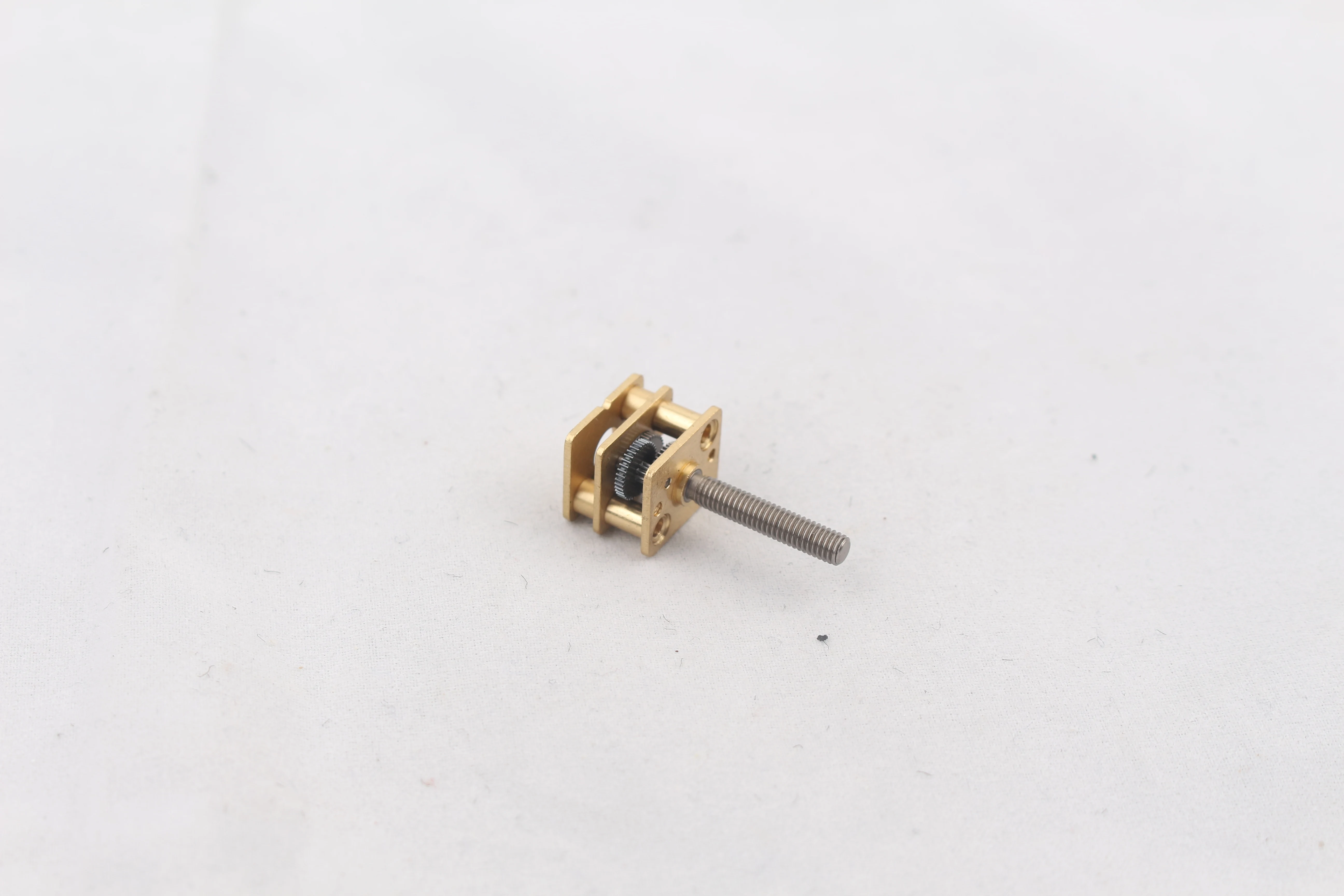

This product is a combination of 10MM outer diameter stepper motor and 10*12 precision metal gearbox. The reduction ratio can be customized according to customer needs.   The basic stepping angle of the motor is 18 degrees, that is, 20 steps per revolution. In addition, the deceleration effect of the reduction gearbox, the final motor rotation angle resolution can reach 0.05~6 degrees, which can be used in many rotating positions requiring precise control. field.   The current standard reduction ratio is 1:3 1:5 1:10 1:20 1:30 1:50 1:63 1:150 1:298 1:380, etc., the customer can choose the deceleration according to the different torque speed requirements. Compared with the appropriate drive frequency of the stepper motor, the determined speed and torque can be achieved.   This product gearbox adopts internationally advanced equipment processing related parts, so it has high precision, high efficiency and low noise. At the same time, due to the reasonable and reliable process, the modified product has better reliability.   The power input section is the same as the standard stepper motor, and can be used in various forms such as optical pin structure, FPC, FFC, PCB connection line.   The output part of the motor can be used with various output structures such as a circular shaft, a D-axis, and a screw.   Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!
ITEM SPECIFICATION
SM10-816G
Rated Voltage
5V dc
Phase number
2Phase
Excitation method
2-2Phase exciting
step angle
18°
temperature
25±2℃
resistance
39Ω±7%
Maximum self-starting cycle number
1000PPS Min
Maximum number of response cycles
1600PPS Min
holding torque
10gf-cm Min
