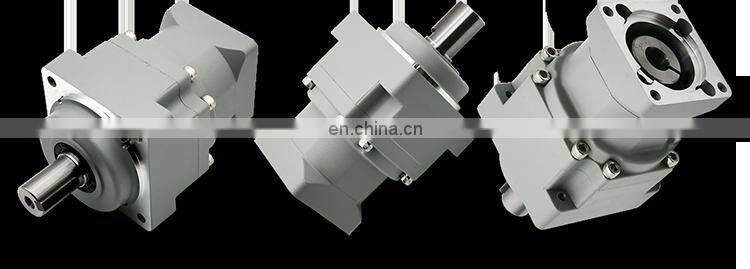

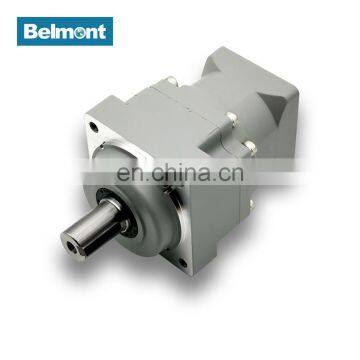

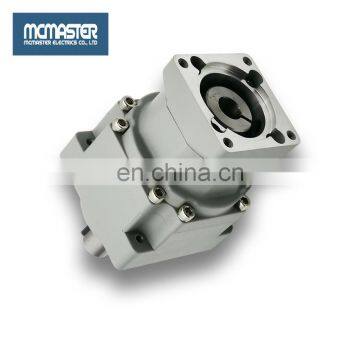

High Precision Planetary Reducer Motor Speed Reducer Gearbox For BLDC Motor EMM546
US$ 62.1 - 102.5
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Output Speed:
600rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BMM787 Specification 12v 24v 36v 48v 50w 800w Customized BLDC Motor, Dc Brushless MotorUS$ 44 - 68MOQ: 2 Pieces -
12S 3KW 190KV to 270KV Brushless dc Motor 6354 Hall Sensors Airplane Motor Brushless DC Motor BMM786US$ 25.5 - 31.97MOQ: 1 Piece
-
6354 rc Bldc Motor Outrunner rc Electric Skateboard BMM785US$ 25.5 - 31.97MOQ: 1 Piece
-
2020 190KV to 270KV Hot Sale Brushless dc Motor 6354 for for Diy Electric SkateboardUS$ 25.5 - 31.97MOQ: 1 Piece
-
McMaster EMM718 24V 48V 310V 3000rpm High Speed Brushless DC Motor, BLDC MotorUS$ 37.18 - 61.34MOQ: 1 Piece
Brand Name
McMaster
Place of Origin
Jiangsu, China
Output Speed
600rpm
Input Speed
3000rpm
Output Torque
32.1Nm, 2.35 - 18.5Nm
Gearing Arrangement
Planetary
| Reduction Ratio |
Output Shaft Speed (rpm) |
Standard Output Torque (N.m) |
Instantaneous Max. Output Torque (N.m) |
Permissible Radial Load (N) |
Permissible Axial Load (N) |
Internal Moment Ofinertia Of Input Shaftconversion (×10-4Kg.m2) |
Permissible Output Torque (N.m) |
Instantaneous Max. Permissible Output Torque (N.m) |
| 5 | 400 | 3.82 | 11.5 | 1120 | 560 | 0.363 | 6.57 | 19.7 |
| 5 | 400 | 8.35 | 25.1 | 1120 | 560 | 0.713 | 11.5 | 34.3 |
| 9 | 222 | 2.35 | 7.04 | 1340 | 670 | 0.275 | 9.7 | 29.2 |
| 9 | 222 | 6.64 | 19.9 | 1340 | 670 | 0.275 | 9.7 | 29.2 |
| 15 | 133 | 3.91 | 11.7 | 1670 | 833 | 0.3 | 16.2 | 48.6 |
| 15 | 133 | 11.1 | 33.2 | 1670 | 833 | 0.3 | 16.2 | 48.6 |
| 20 | 100 | 5.73 | 17.2 | 1790 | 895 | 0.294 | 21.1 | 63.3 |
| 20 | 100 | 14.8 | 44.4 | 1790 | 895 | 0.294 | 21.1 | 63.3 |
| 25 | 80 | 7.16 | 21.5 | 1670 | 833 | 0.288 | 21.7 | 64.9 |
| 25 | 80 | 18.5 | 55.4 | 1670 | 833 | 0.288 | 21.7 | 64.9 |
| 35 | 57 | 4.43 | 13.3 | 1900 | 950 | 0.262 | 15.5 | 46.6 |
| 35 | 57 | 12.7 | 38.1 | 1900 | 950 | 0.262 | 15.5 | 46.6 |
| 45 | 44.4 | 5.8 | 17.4 | 1670 | 833 | 0.0285 | 9.5 | 28.6 |
| 81 | 24.6 | 9.7 | 29.2 | 1670 | 833 | 0.027 | 9.7 | 29.2 |
|

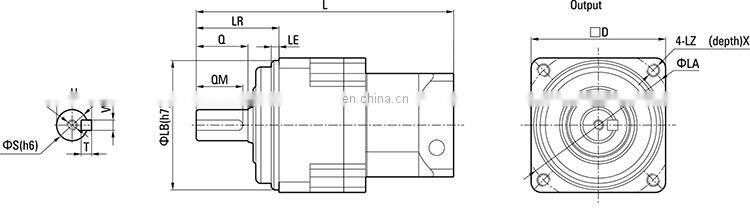

model |
Output |
Flange |
Total Length L |
|||||||||||
|
LR |
S |
Q |
QM |
QM |
W×U |
T |
D |
LB |
LE |
LA |
LZ |
X |
||
|
EMM546 |
50 |
19 |
30 |
26 |
M5(depth)15 |
6×21.5 |
6 |
80 |
70 |
3 |
60 |
M6 |
20 |
139.5-150 |
