Home > Electrical & Electronics > Electric Motor > DC Motor > BMM515M 80mm 24V 300W High Torque Low RPM DC Planetary Gear Reducer Motor for Packing Machine

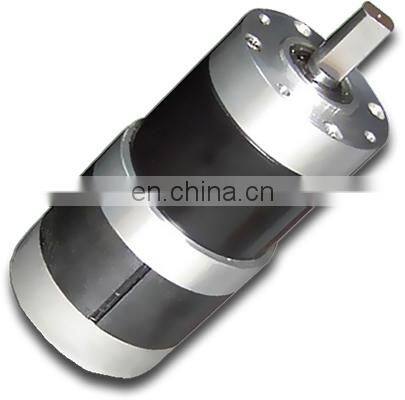

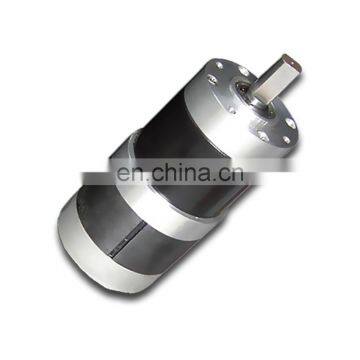

BMM515M 80mm 24V 300W High Torque Low RPM DC Planetary Gear Reducer Motor for Packing Machine
US$ 106 - 136
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM515M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BDDS01S-S Hot Sale Single Motor Electric Height Adjustable Standing Table Desk Converter FrameUS$ 218 - 240MOQ: 1 Piece -
82MM Diameter 12V 24V 70W DC Motor High Speed Brushed Gear Motor for Robot BMM407M1US$ 34 - 61MOQ: 2 Pieces
-
BDEH02R-D Good Quality Motors Electric Height Adjustable Standing Table Converter FrameUS$ 137 - 150MOQ: 1 Piece
-
24V 150W High Torque DC Planetary Gear Reducer Motor for Cleaning Machine BMM507MUS$ 186 - 325MOQ: 2 Pieces
-
BDSEH02R-S Single Motor Electric Adjustable Height Sit Stand Up Office Computer DeskUS$ 118 - 140MOQ: 1 Piece
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMM515M
Type
Gear Motor
Certification
CCC, ROHS
Torque
5N.M
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Totally Enclosed
Continuous Current(A)
18A
Speed(RPM)
580RPM
Commutation
Brush
|
VOLTAGE (V) |
NO LOAD |
RATED LOAD |
Torque (N.m) |
RATIO |
STAGE |
Power (W) |
LENGTH (mm) |
|||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
|||||||
|
BMM515M |
24 |
3.12 |
698 |
18.7 |
579 |
4.7 |
5.18 |
1 |
283 |
271 |
|

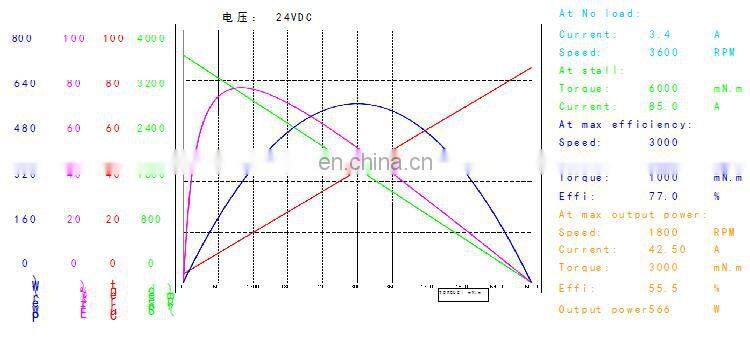

Voltage (VDC) |
No Load |
Rated Load |
Toque (N.m) |
EMF constant (V/rpm) |
torque constant (N.m/A) |
Length (mm) |
||
|
Current(A) |
Speed(r/min) |
Current(A) |
Speed(r/min) |
|||||
|
24 |
2.80 |
3614 |
18.7 |
3000 |
1 |
0.0065887 | 0.0629 | 108 |
