Home > Electrical & Electronics > Electric Motor > DC Motor > 150W 24V High Torque Planetary DC Reduction Gear Motor BMM507M1

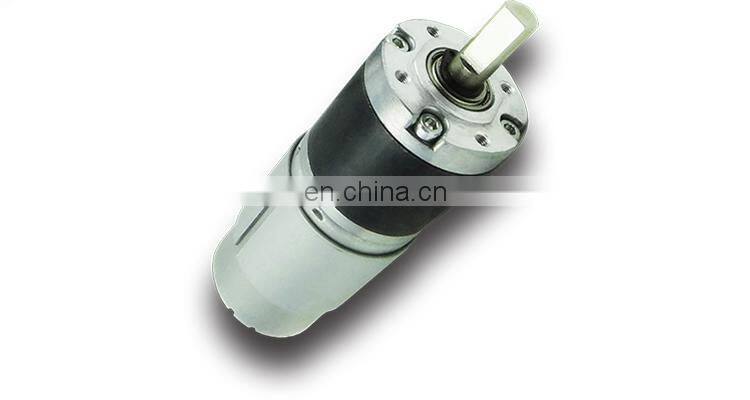

150W 24V High Torque Planetary DC Reduction Gear Motor BMM507M1
US$ 186 - 325
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM507M1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OD 82mm 12V 70W 300rpm DC Electric Motor BMM407M2US$ 34 - 61MOQ: 2 Pieces -
86rpm 24V High Torque DC Planetary Reduction Gear Motor BMM509M1US$ 73 - 103MOQ: 2 Pieces
-
OD 80mm 170rpm High Torque DC Reducer Motor 24V Planetary Reduction Gear Motor for Robot BMM505MUS$ 85 - 139MOQ: 2 Pieces
-
BMM750W BLM-5065-124V1820W 5000rpm High Speed Brushless Motor for Belt Electric Skateboard Motor Propeller Electric SurfboardUS$ 22.94 - 29.12MOQ: 2 Pieces
-
BMM227W 24V 65W Low Rpm Electric Reducer DC Gear MotorUS$ 53 - 75MOQ: 2 Pieces
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMM507M1
Type
Gear Motor
Certification
CCC, ROHS
Torque
2N.M
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Protect Feature
Totally Enclosed
Continuous Current(A)
9A
Speed(RPM)
7 - 700 RPM
Commutation
Brush
| VOLTAGE (V) |
NO LOAD | RATED LOAD | Torque (N.M) |
RATIO | STAGE | Power (W) |
LENGTH (MM) |
|||
| CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
|||||||
| BMM507M1-1 | 24 | 1.56 | 850 | 9.35 | 706 | 1.9 | 4.25 | 1 | 141 | 181 |
| BMM507M1-2 | 24 | 1.56 | 504 | 9.35 | 418 | 3.2 | 7.17 | 1 | 141 | 181 |
| BMM507M1-3 | 24 | 1.92 | 9 | 9.35 | 7 | 154 | 422 | 3 | 115 | 218 |
| BMM507M1-4 | 24 | 1.56 | 707 | 9.35 | 587 | 2.3 | 5.11 | 1 | 141 | 181 |
|
Voltage (VDC) |
No Load |
Rated Load |
Toque (N.m) |
EMF constant (V/rpm) |
torque constant (N.m/A) |
Length (mm) |
||
|
Current(A) |
Speed(r/min) |
Current(A) |
Speed(r/min) |
|||||
|
24 |
1.40 |
3614 |
9.35 |
3000 |
0.116 |
0.0065887 | 0.0629 | 124 |
