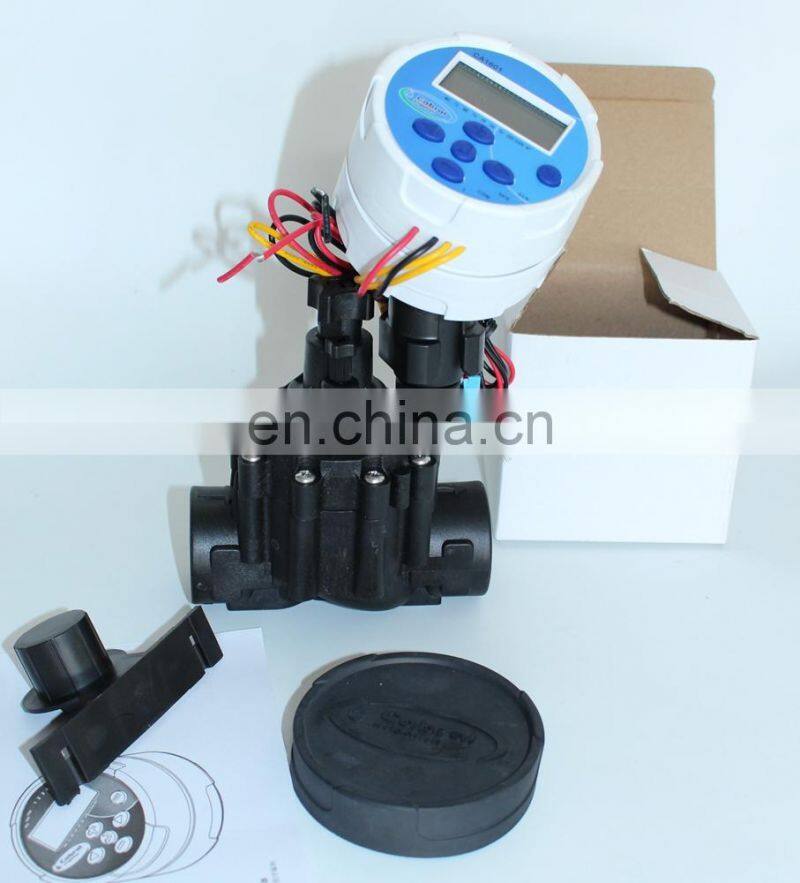

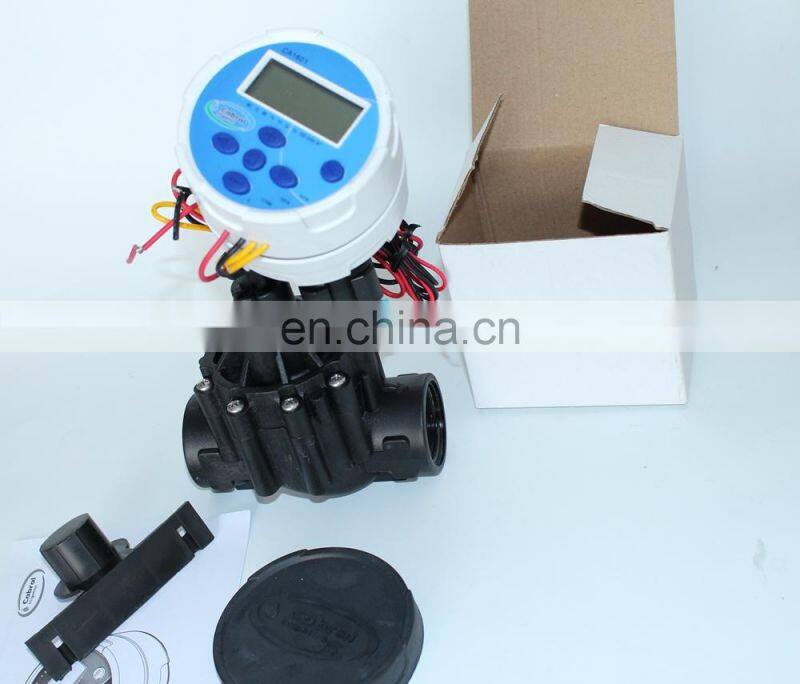

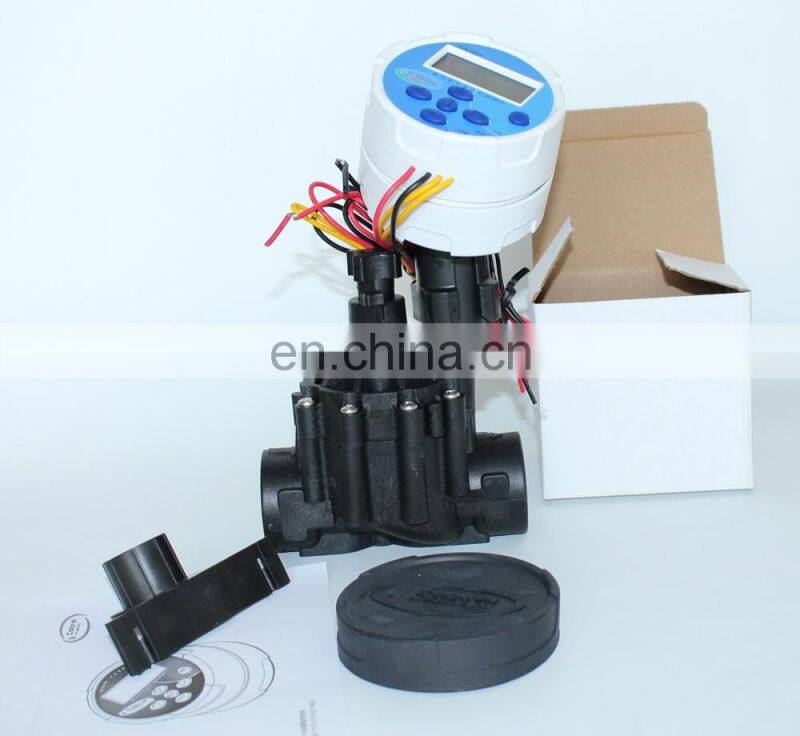

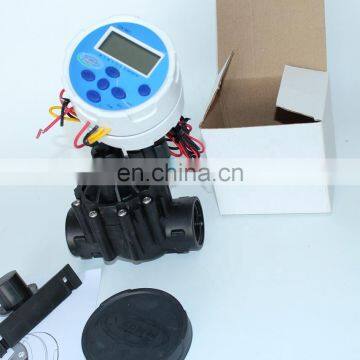

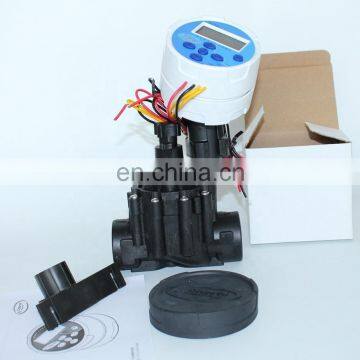

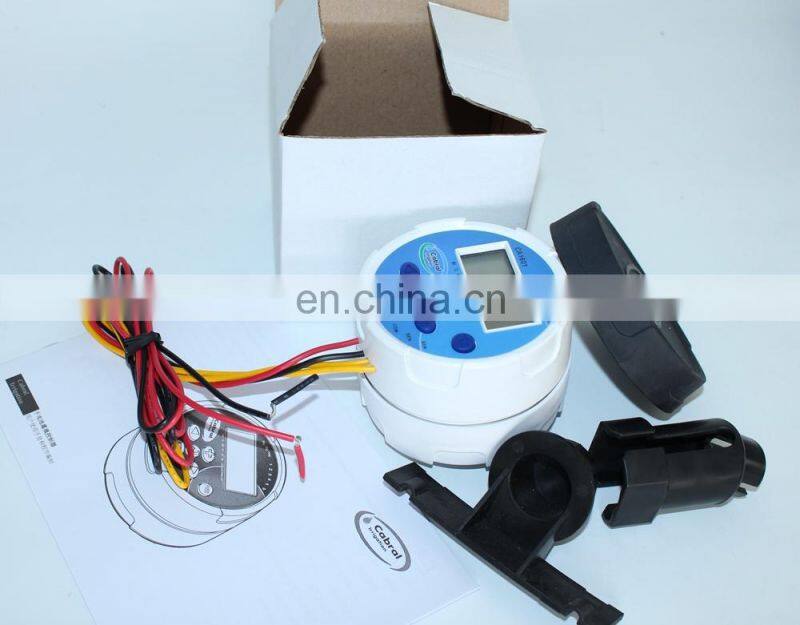

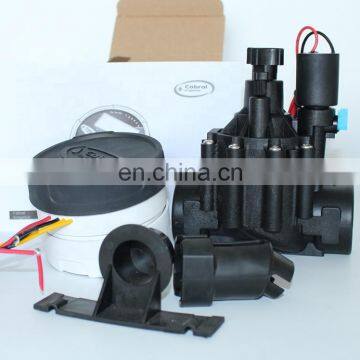

Help CenterZanchen Sprinkler Ca1601 Single Station Controller With 3/4inch DC Latching Solenoid Valve 9V Battery Operated
Related Products
-
CA1601 Controller Irrigation Valve Solenoid Controlled Single Station One Zone DC Latching Remote Control Water ProofUS$ 5 - 50MOQ: 1 Piece -
Irrigation Water Timer Solenoid Valve Controller 9V Battery OperateUS$ 38 - 50MOQ: 1 Piece
-
Irrigation Timer Valve Controller CA1601 One Single Station Zone Latching Remote Control 9V 12VUS$ 5 - 80MOQ: 1 Piece
-
Water Timer for Irrigation Valve Control 9V CA1601US$ 38 - 50MOQ: 1 Piece
-
Water Timer Irrigation Valve Controller 9V Battery Operate Remote Wireless Latch PulseUS$ 38 - 50MOQ: 1 Piece
9V Battery-Operated irrigation Controller
Features
Controller Features
Waterproof case ensures long life even when installed in a valve box
Dual-sealed battery chamber with rubber insert and O-ring keeps water out
IP68 certified for protection against dust and water intrusion

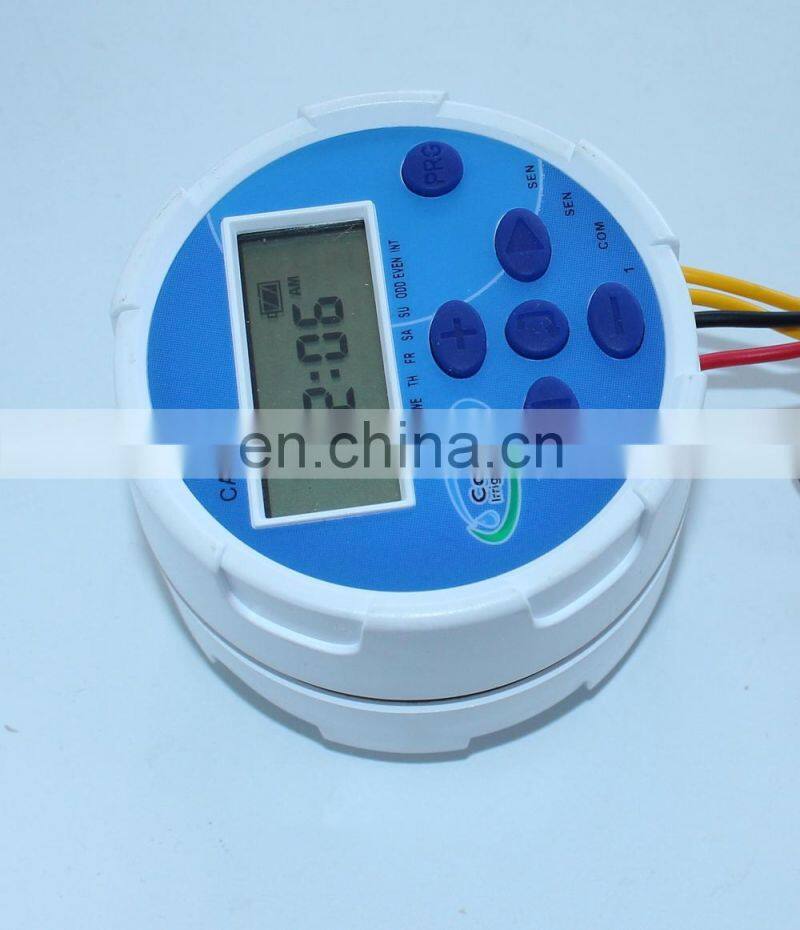

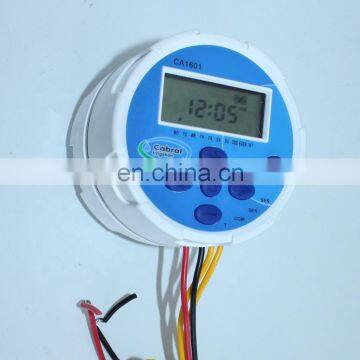

Large LCD display with easy-to-navigate user interface
Non-volatile (100-year) program memory keeps your schedule safe even if batteries are dead
Mounts in valve box using solenoid mounting bracket, using two screws affixed to the valve box or on a wall using the optional wall-mount kit
The plastic controller case has outstanding resistance to weather, yellowing and aging
Sensor input with bypass override
Master valve/pump-start circuit (multi-zone units only)
Rain sensor bypass for all zones
Controller operates with one or two 9-volt alkaline batteries
Scheduling Features
Common programming features are easily accessed on one screen, making programming quick and easy
At-a-glance programming eliminates confusion by showing the run time, start times and watering days for each zone
Automatic zone stacking ensures that only one valve irrigates at a time. If zones are scheduled to water at the same time, the ca1601-9V will automatically irrigate the lower number zone first.
Dedicated manual watering button for easy manual watering
Manually water all zones or a single zone on demand
One-touch manual start allows you to start a full programmed irrigation cycle with the touch of a button
Operating Specifications
Operates for one year using one 9-volt alkaline battery or more than two years with two 9-volt alkaline batteries
Station Timing: 1 to 240 minutes (per start time)
6 independent start times per zone
4 watering day options per zone: Custom days of week, Cyclic (every 1 to 30 days), ODD calendar days, and EVEN calendar days
Delay watering: 1 to 9 days
Seasonal adjust: 10% to 200%
Controller Hardware

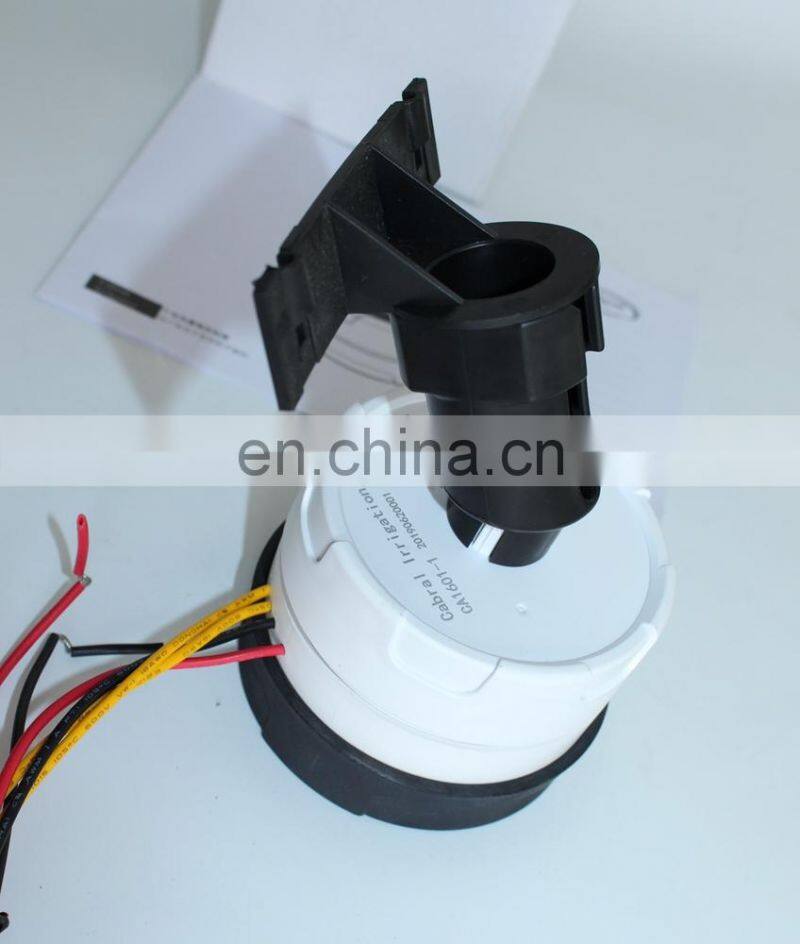

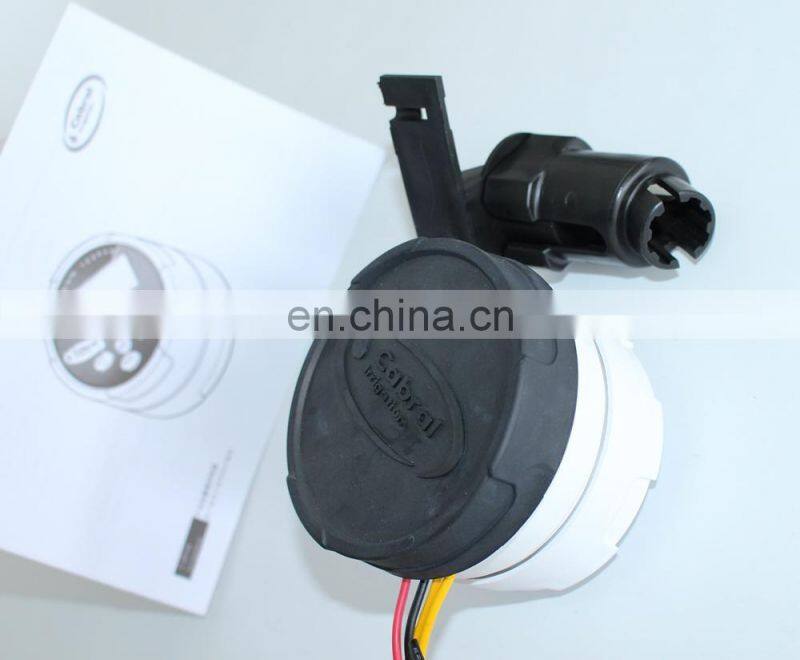

Solenoid mounting bracket for easy mounting on a valve

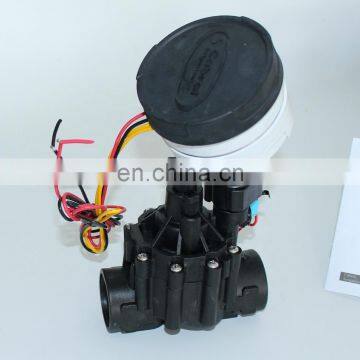

Rubber cover protects the controller face
Optional: Wall mount bracket
