Home > Products > Pressure relief valve X > 4" plastic pressure relief valve for water treatment and irrigation system DN100 DN80 Flange female BSP thread

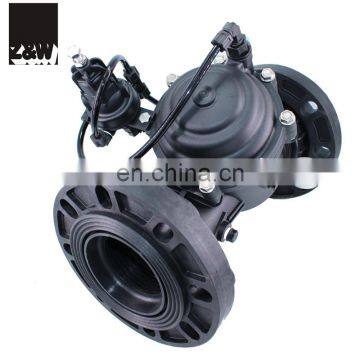

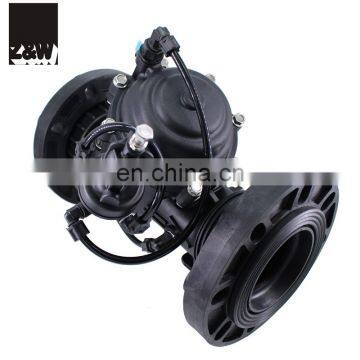

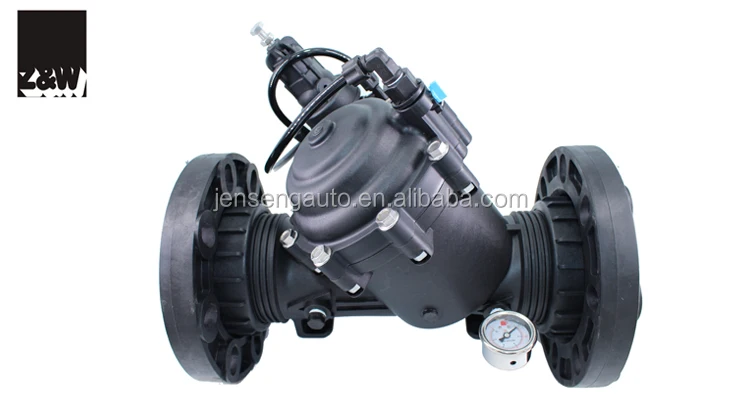

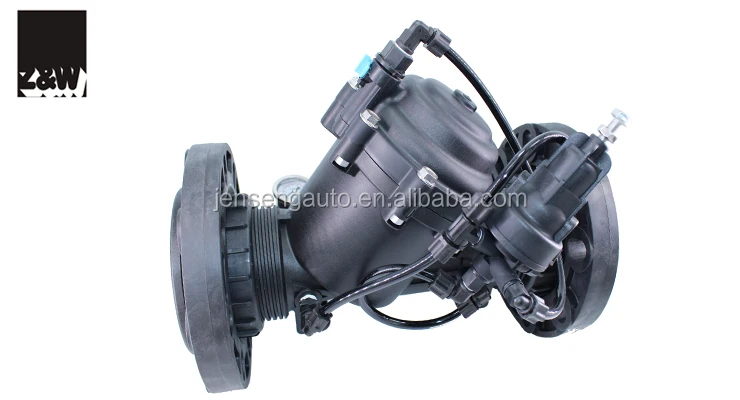

4" plastic pressure relief valve for water treatment and irrigation system DN100 DN80 Flange female BSP thread
US$ 5 - 100
/ Piece
1 Piece(Min. Order)
- Ningbo Sea port or Shanghai Sea port
- T/T Credit Card
You May Like
-
1 1/2" 1.5inches valve water pressure relief release control DN40 PLASTIC
-
1 1/2" 1.5inches valve water pressure relief release control DN40 PLASTIC
-
121X 1-1/4" water control valve pressure relief sustain hydraulic pilot plastic NYLON for irrigation DN32 40mm 1.2inch
-
IRRIGATION PRESSURE RELEASE VALVE DN65 75MM FEMALE THREAD FLANGE CONNECTED
-
pressure release valve 3 inches flanged female thread DN80 water stress sustainning
-
pressure release solenoid valve electric four inches flanged female thread hydraulically operated
Product Details
| Brand Name | Z&W | Place of Origin | China | |
| Model Number | 401X | Application | General | |
| Structure | Pilot | Power | Hydraulic | |
| Port Size | 4" | Media | Water | |
Product Description
Product Description
Feature:
The quick pressure relief valve is a hydraulically operated, diaphragm actuated control valve.
Glass fiber nylon reinforce material can resistant to chemicals used in agriculture
Special structure prevents cavitation consequences in irrigation equipments.
This valve relieves excessive line pressure when it rises above the preset maximum.
It responds to rises in system pressure immediately, accurately and with high repeatability, by opening fully, thus avoiding system damages due to pressure overload.
It protects irrigation systems from pressure overload and burst.
No chattering and fast closing. Accurate and stable regulation with smooth motion.
Our pressure relief valves range includes: Pressure relief valve, sized 2",21/2" ,3",4"plastic body.
Details:
Name | 401T-JY Pressure reduce valve | ||||
Port size | 4"/3" ; DN80/DN100 | ||||
Port thread | 4" Flange or 3" Female thread | ||||
Pressure input | 0.8--10 Bar | ||||
Pressure output | 0.8--6.5 Bar | ||||
Flow rate | 5.0~90.0m³/h | ||||
Body material | Reinforced nylon | ||||
Sealring material | NBR | ||||
Temperature | Water Temp≤52℃ Surround Temp≤80℃ | ||||
Voltage | DC Latching 9-20V | ||||
DC24V / DC12V / DC9V | |||||
AC220V / AC110V / AC24V , 50/60Hz | |||||
Application
Product Show
Why Choose Us
A company you can trust:
Located in Yuyao, Ningbo City,Yuyao Z&W Automation Equipment Factory is a professional manufacturer of Solenoid Valve and accessories.We have more than 15 years of experience in research and development irrigation products,and have a good raputation in this field.
Quality and Safety:
We have implemented a strict and complete quality control system,which ensures that each product can meet quality requirments of customer.Besides,all of our products must been strictly inspected before shipment.Our products have passed CE certification.We support OEM and ODM.
Your Success,Our Glory:
Our aim is to help customers realize their goals,we are making great efforts to achieve this win-win situation.We sincerely hope to cooperate with you for long-term business relationship.
Production&Delivery
Related Products
FAQ
① About Samples
Free samples,freight collect. Tracking number will be informed you ASAP.
② Packing method
Each pc in a bubble bag,then in an innerbox.
③ Terms of payment:
T/T, L/C at sight, Western union
④Terms of Shipment:
About 30days after receiving the deposit.
⑤Ports of shipment:
Ningbo or shanghai Port, by sea or air.
⑥Inspection:
100% testing before delivery.
⑦Gurantee:
One year since delivery.
