Latching Solenoid Controlled Valve with 2W internal controls & flow stem

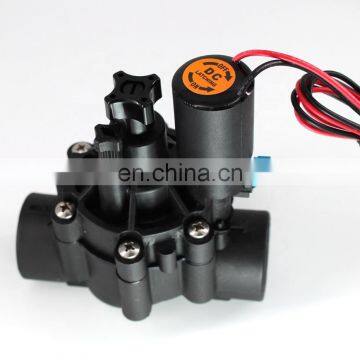

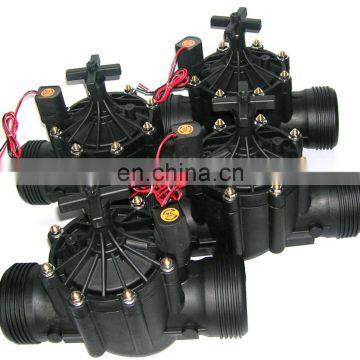

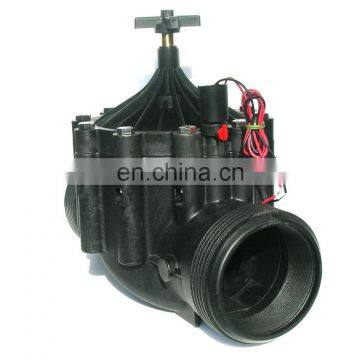

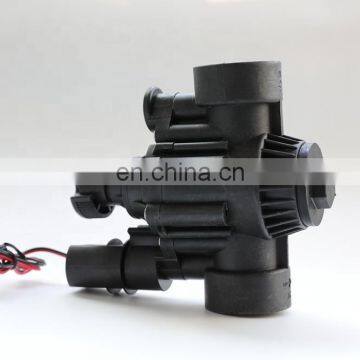

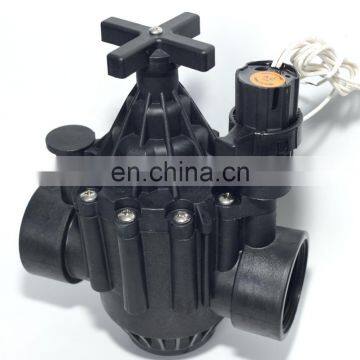

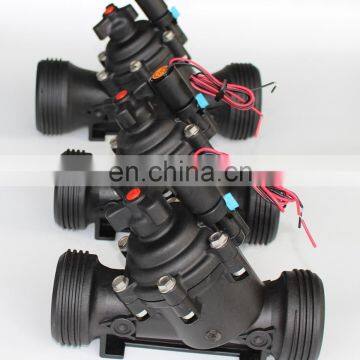

3/4"-4" DC LATCHING SOLENOID Valvw
The zanchen Latching Solenoid Control Landscape Valve is a Electric operated, (9-20V/DClatching), diaphragm actuated control valve that opens and shuts in response to a pressure command.
PRODUCT FEATURES & BENEFITS
1,Hydraulic Control Valve
2,Line pressure driven
3,Hydraulically controlled On/Off
4,Engineered Plastic Valve with Industrial Grade Design
5,Adaptable on-site to a wide range of end connection sizes and types
6,Articulated flange connections eliminate mechanical and hydraulic stresses
7,Highly durable, chemical and cavitation resistant
8,hYflow ‘Y’ Valve Body with “Look Through” Design
9,Ultra-high flow capacity – Low pressure loss
Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug Smooth closing
10, Requires low actuation pressure
2-Way Magnetic Latch Solenoid Actuator, 9VDC Latch, 2- Leads
Electrical Data:
Voltage Range: 6-20 VDC
Coil Resistance: 6ohm
Coil Inductance: 90 mH
Pulse Width: 20-100 mSec.
Required Capacitor: 4700μF
Operation Modes (electrical connections):
+Red & -Black: Latch Position
+Black & -Red: Released Position
