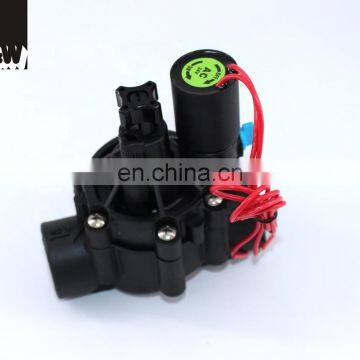

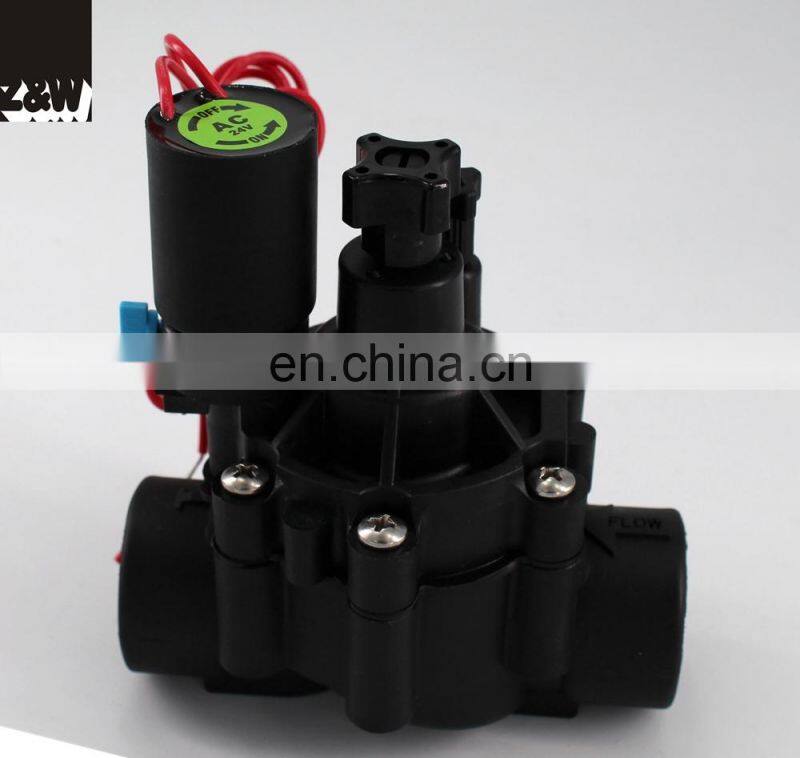

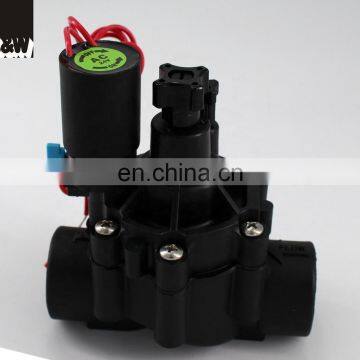

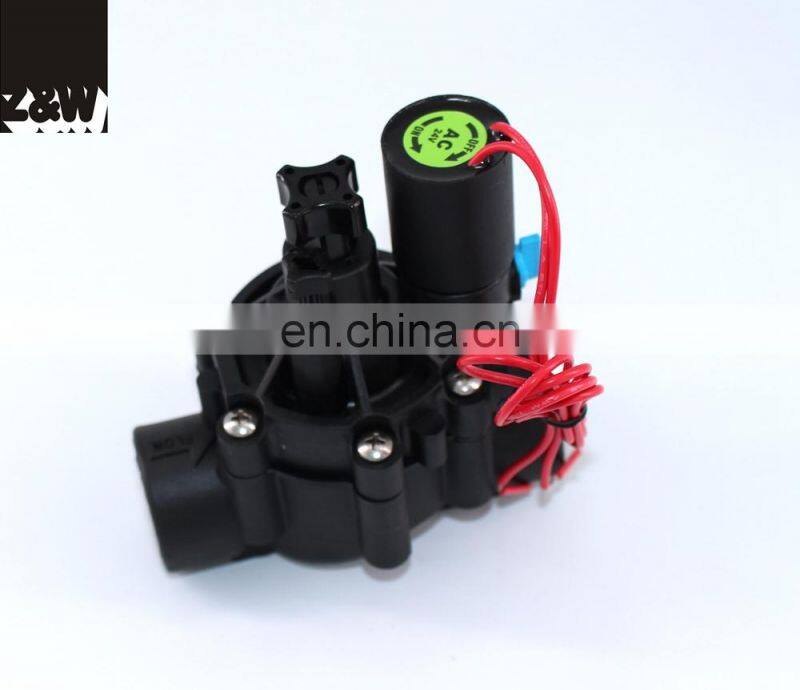

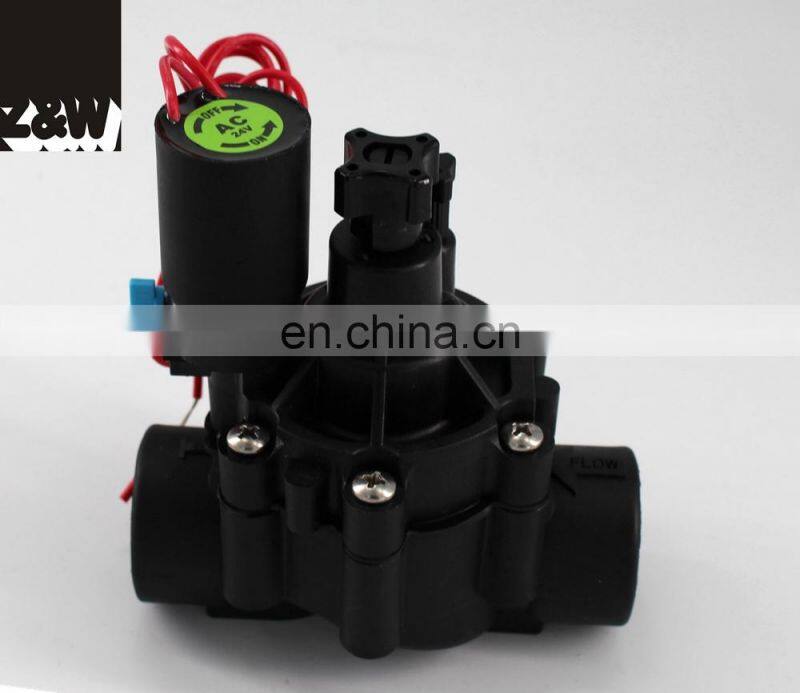

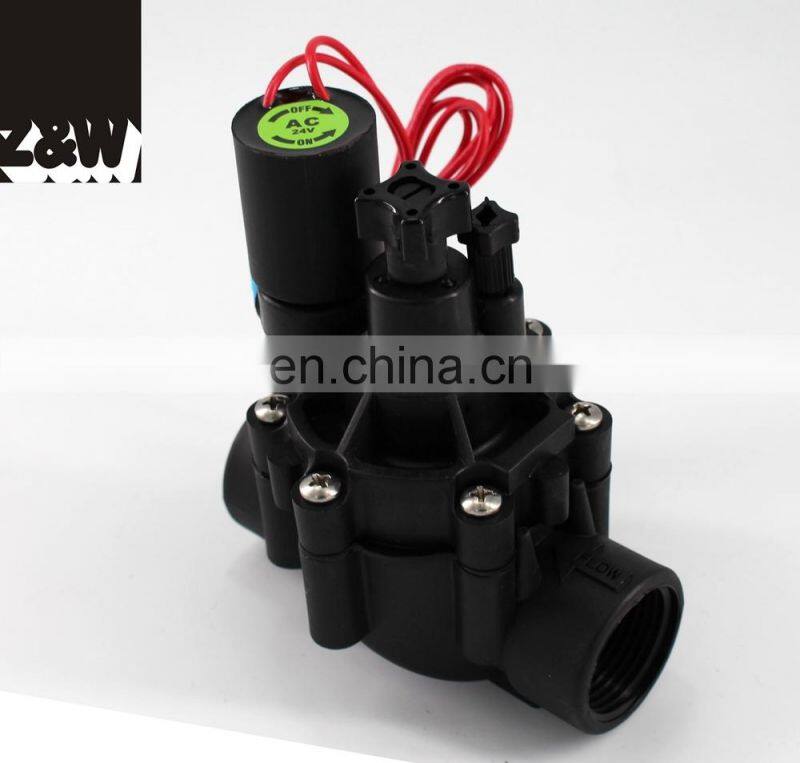

101DH1inch BSP female threaded inlet and outlet with flow control mechanism
Plastic Electric Valves - The Right Choice in Valves
Double-filtered pilot-flow design for maximum reliability.
Balanced-pressure diaphragm for long life.
Energy-efficient, low-power encapsulated solenoid with captured plunger and 200 micron solenoid filter.
Ease of Service
Flow control mechanism on 101DH model.
Manual On/Off
Internal bleed for spray-free manual operation.
External bleed screw to manually flush system of dirt and debris during installation and system start-up.
Versatility
Reliability
Rugged nylon body.
Stainless steel phillips head screws.
ELECTRICAL SPECIFICATIONS
2-Way Magnetic Latch Solenoid Actuator, 9VDC Latch, 2- Leads
Electrical Data:
Voltage Range: 6-24 VDC
Coil Resistance: 6Ω
Coil Inductance: 90 mH
Pulse Width: 20-100 mSec.
Required Capacitor: 4700μF
Operation Modes (electrical connections):
+Red & -Black: Latch Position
+Black & -Red: Released Position
