Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion

Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-1
Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-2
Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-3
Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-4
Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-5
Ac Motor30 Kilowatt ac Motor dc Motor 15kw 48v Three Phase 48V 15000W Electric Car Motor For Electric Car Conversion photo-6
US$ 700 - 757 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Bliss
Place of Origin:
Chongqing, China
Model Number:
BMD50F-48-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo Chongqing Port..etc
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Bliss
Place of Origin Chongqing, China
Model Number BMD50F-48-1
Product Description

Three Phase 48V 15000W Electric Car Motor For Logistics Vehicle

48V/15KW (Front drive)

Product model
BMD50F-48-1
Motor type
three-phase asynchronous motor
DC bus battery voltage
48VDC
Continuous power
15kW
Peak power
45kW
Working system
 S9
Speed range
0-12000rpm
Cooling method
natural air cooling
Continuous torque
440N·m
Starting torque
1600N·m
Peak current
1000A
Protection level
IP67
Insulation class
H class
Dimensions
447×415×249(mm)
Working environment temperature
-40~85℃
Weight
90kg

15kW AC Motor for Electric Car


Features:

1. Low noise, low vibration and smooth start.
2. Large torque and high efficiency.
3. High reliability, strong overload capability
4. Pure copper windings.
5. Simple structure, durable
.

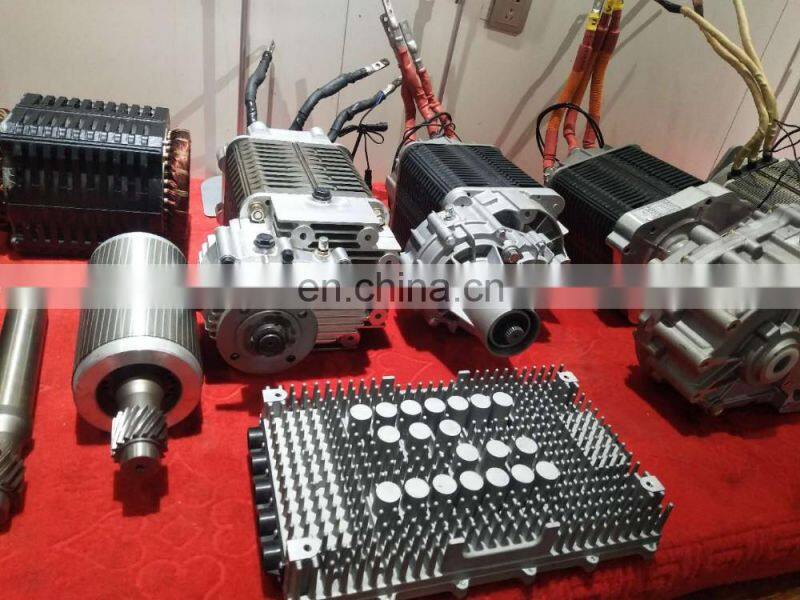

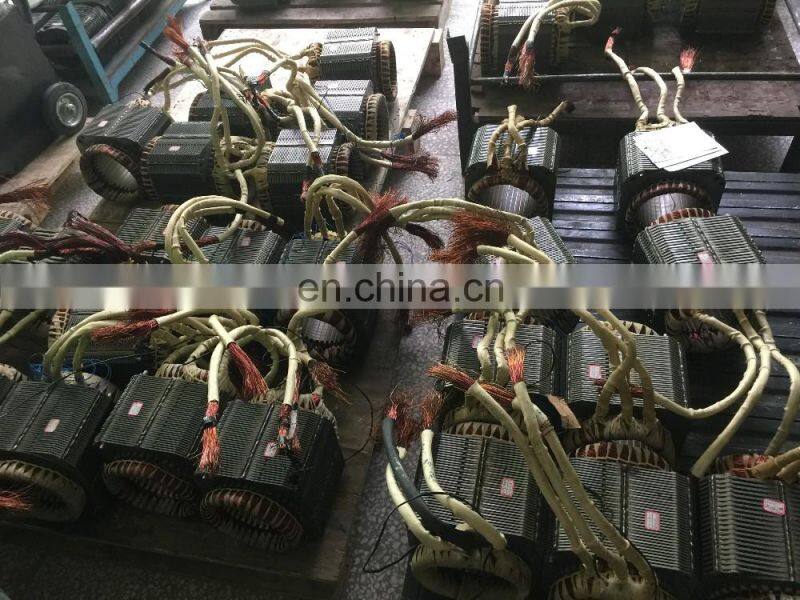

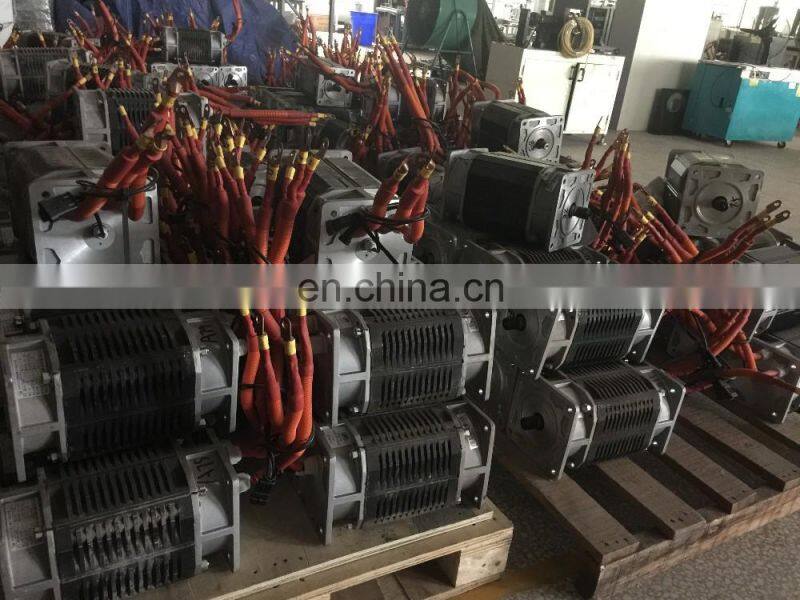

Sample Display
Use

48V 15KW AC Motor


Equipped with models: A, A0 class, logistics car, commercial car

After calculation:


Maximum speed:  >120km/h
Climb:  >30%
Acceleration time:  0-80km, <10 seconds


About Us

Chongqing Bliss Machinery Co., Ltd. has a modern factory and introduces advanced technology and testing equipment. It is a professional manufacturer specializing in the research and development and industrialization of electric vehicle electric drive assemblies.

Chongqing Bliss Machinery Co., Ltd. is one of the key support enterprises of the local city and county government. The company organizes production and management in strict accordance with the ISO9001 quality system, and has passed the national 3C certification and TS16949 system certification.The company's products are sold throughout the country and Southeast Asian countries, and have established stable cooperative relations with first-line brand electric vehicle manufacturers at home and abroad.

Our team members:

1. OEM Manufacturing welcome: Product, Package...

2. Sample order. We will reply you for your inquiry in 24 hours.

3. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
