Manual 2D Video Measuring Machine Supplier & Vision Measuring Machine Manufacturer

FOB Price

US$ 17500 - 18500 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMU		Place of Origin	China
Model Number	SMU-3020EM

Product Description

Manual type video measuring machine

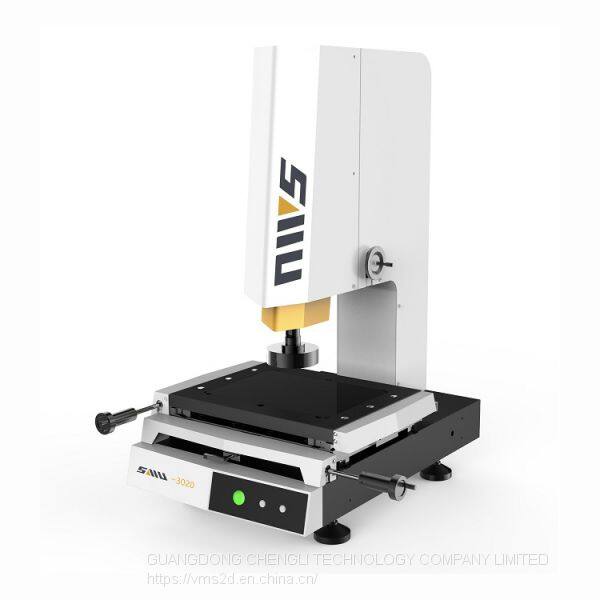

SMU-3020EM Manual type video measuring machine

Features:

* Independently development of manual measurement software, high-resolution imported camera

* The user can know whether the light is saturated by using the auxiliary light path adjustment function of the software.

* The foot switch and software can facilitate the operation of the machine

* The laser indicator can be quickly positioned when functioning

* Optional MCP probe for customers to choose

Application:

Mechanical, electronic, instrument, plastic and other fields have been widely used, E-Series video measurement system is used for two-dimensional measurement

Specifications:

Model				SMU-2010EM		SMU-3020EM		SMU-4030EM		SMU-5040EM
Worktable	Marble top size (mm)			360*260		460*360		560*460		660*560
	Glass Worktable size (mm)			250*150		350*250		450*350		550*450
	X/Y Travel (mm)			200*100		300*200		400*300		500*400
Bearing capacity of glass worktable(KG)				25KG
XY Base				Grade 00 Ji’Nan Green Marble
Weight(KG)				100KG		150KG		200KG		280KG
Outline size(LWH)mm				540560850		760600900		970670940		10507501000
X,Y,Z Resolution(mm)				0.001
Accuracy(μm)				≤3+L/200
Z axis Travel (mm)				Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm)
Transmission system				High precision transmission guide rail, precision polished rod
Power Supply：AC220V/50HZ AC110V/60HZ
Video system		Camera: 1 / 3 "HD color industrial camera Zoom lens magnification: 0.7X-4.5X
		Image magnification: 20X-128X
		(optional 0.5X objective / 2X objective)
Zoom lens			0.7X～4.5X				0.7X～4.5X				Working distance (mm)
Additional lens			Magnification		Object view(mm)		Magnification		Object view(mm)
0.5X(optional)			10X～64X		22～3.4		5X～32X		44～6.8		175
1X(standard)			20X～128X		11～1.7		10X～64X		22～3.4		92
2x(optional)			40X～256X		5.5～0.9		20X～128X		11～1.7		36
Industrial computer (standard configuration)							Optional on-axis light,foot switch,prober

Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team

Note: the object view is equal to the length of the diagonal
