Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE

Jiangsu Acrel Electrical Manufacturing CO.,LTD
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE thumbnail-1
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE thumbnail-2
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE thumbnail-3
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE thumbnail-4
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE thumbnail-5
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE photo-1

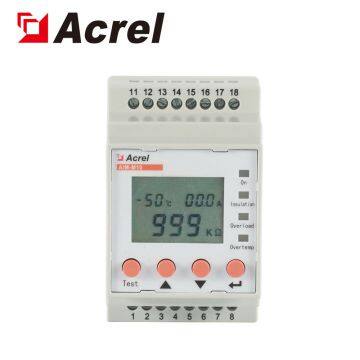

Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE photo-2

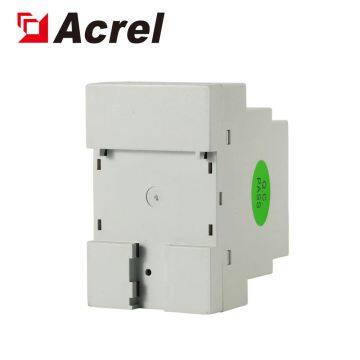

Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE photo-3

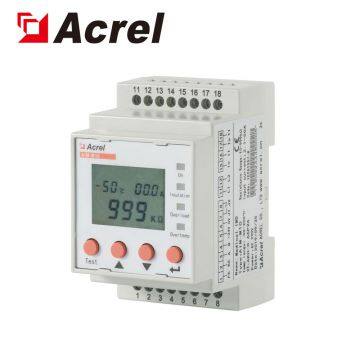

Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE photo-4
Acrel AIM-M10 Nursing Station Insulation Monitor for Medical IT System With CE photo-5
US$ 1243.9 - 1244 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AIM-M10
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number AIM-M10
Technical Parameters
Input voltage
AC220V±10%


Power consumption
≤5VA
Resistance measuring range
10…999kΩ
Response value
50…999kΩ
Relative uncertainty
±10%
Response time
≤3s
Measuring voltage U
≤12V
Measuring current I
≤50uA
Load current monitoring Measuring Value
2.1…50A
Load current monitoring Alarm Value
5…50A
Load current monitoring Measuring accuracy
±5%


Product Tags: Insulation Monitor , Isolation monitor , Insulation Monitoring device , Medical IT system
