Product Details
Brand Name: | Systester | Place of Origin: | China | Model Number: | LEAK-5001 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

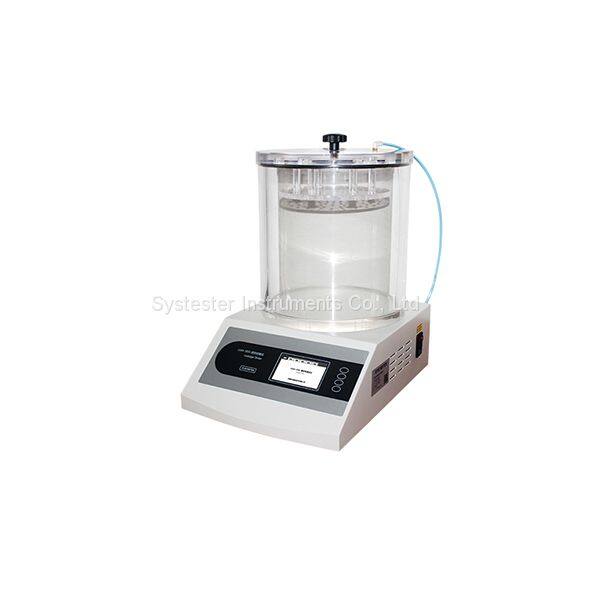

Flexible Package Sealing Test Vacuum Leak Testing Machine Leakage Test
Product Details
Application:
For the determination of gross leaks in flexible packaging containing a headspace gas by bubble emission method.
Flexible Package Sealing Test Vacuum Leak Testing Machine Leakage Test
Features:
1. Our own technology.
2. Touch screen operation.
3. Real color TFT LCD display.
4. Pass, reject input, convenient query.
5. High-accuracy pressure sensor inside.
6. High performance pneumatic parts in side.
7. Constant pressure, balance automatically control.
8. Overload warning.
9. Designed based on various standards.
9. Low power consumption.
10. RS232 communication port.(Optional)
Flexible Package Sealing Test Vacuum Leak Testing Machine Leakage Test
Technical Indexes:
Vacuum chamber | 0~ - 90kPa |
Accuracy | 0.1%FS |
Vacuum chamber size | Φ270mm×220 mm (H) |
Note | Other vacuum chamber size is customized. |
Gas source pressure | 0.4MPa~1.0MPa (self-provide) |
Gas interface | Φ6mm |
Power supply | AC 220V 50Hz |
Dimension | 335mm(L)×475mm(W)×530mm(H) |
Net weight | 27kg |
Standards:
ASTM D3078, GB/T
