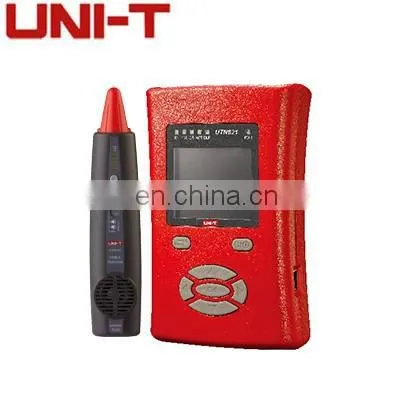

network tester tool digital network cable tester
|
Supplier of State Grid! IEC156 ISO 9001:2008 ASTM |
|
network tester tool digital network cable tester introduction:
• Link Status– Identify the device, confirm actual connection speed / Duplex status, with Max. rate up to 1000M;
• Cabling Diagnosis– Supported with TDR Technology, single-ended verification for mis-wiring, shorts or opens, able to measure the distance to fault;
• Wire Sequence Scanning - to check for wiring sequence;
• PoE– Check for the availability, power & voltage of Power Over Ethernet, and whether POE wire pairs conform to IEEE 802.3af or IEEE802.3at;
• Ping – to test response data with connection to gateway, DHCP, servers& other devices;
• DHCP – Able to verify DHCP status with access to DHCP address;
• Multipoint Link Monitoring- offer real-time monitoring on the continuity for numbers of IP joints, record down and report the fault time;
• Port Blinking– Control Port blinking at a switch/Hub for cable identification;
• Toning Cable Location – Complete with Tone Probe to locate the cables;
• Data Recording & Documentation– Record down results on link status, Ping, PoE, cable verification, available for review and printing through the Web.
network tester tool digital network cable tester parameter:
Specifications |
Range |
Model |
UTN821 |
Network port |
10/100/1000BASE-T (IEEE 802.3)self-adaption port |
Support cable type |
UTP Cat5/Cat5e;EIA/TIA568A/B |
Networking protocol |
IPv4,ICMP,DHCP,HTTP and so on |
Cable Test |
Line pair length,open circuit,short circuit, Straight-through state indication |
Single-end TDR Cable Diagnosis, minimum cable length:0.8M | |
Length test resolution:0.8M | |
POE test |
Voltage Range:0~-60V DC; |
Standard:IEEE802.3af,IEEE802.3at and nonstandard POEpower supply; | |
PSE power supply line pair:head joint(1/2,3/6line pair)and bridge joint(4/5,7/8 line pair) | |
Features |
|
Port |
RJ45network test port,RJ45cable port; |
Application program port:Mini-USB | |
User interface |
1.8” LCD TFT display,Resolution 160×128pixel; |
Periodic line LEDx5;standby indication LEDx1;function button x7 | |
Working Enviroment |
Working temperature:0℃ – 40℃;Storage temperature:-20℃ to 60℃;working humilyty:95%; |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
