HZRC9200 High and Low Voltage Clamp on Earth Resistance Meter
US$ 100 - 600
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
HZ
Place of Origin:
Hebei, China
Model Number:
HZRC9200
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HZ Digital Earth Resistance Measurement Earth Resistance MeterUS$ 299 - 459MOQ: 1 Piece -
HZRC8000 Made in China CT Technique Clamp Meter Leakage Testing Machine Online Leakage Current MonitorUS$ 295 - 320MOQ: 1 Piece
-
Digital Megohm Meter 5kv Insulation Resistance TesterUS$ 1,000 - 1,800MOQ: 1 Piece
-
High Voltage Insulation Resistance Tester 5kv Insulation Resistance TesterUS$ 899 - 1,600MOQ: 1 Piece
-
High Voltage dc Insulation Resistance Testing Machine 5kv Insulation Resistance TesterUS$ 899 - 1,600MOQ: 1 Piece
Brand Name
HZ
Place of Origin
Hebei, China
Model Number
HZRC9200
Weight
2.3Kg
Operating Temperature
-10℃ ~ 60℃; ≤70%Rh
Dimensions
300*200*100mm
Measuring Inductance Range
100KHz
Measuring Capacitance Range
9.99nF/99.99nF/999.9nF/9.999mF
Measuring Resistance Range
200 /20k
Measuring Voltage Range
AC/DC 0-600V
Measuring Current Range
0.00mA~1000A(50Hz/60Hz
Display Type
Digital Only

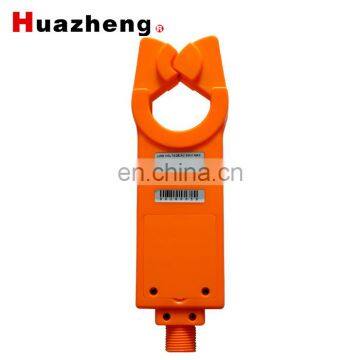

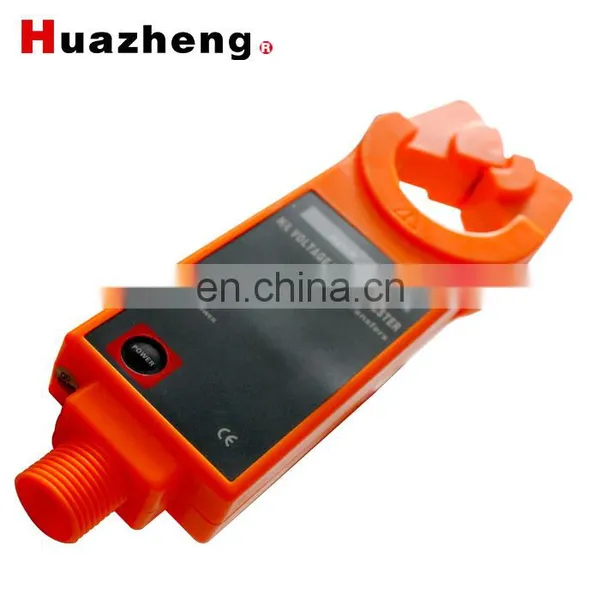

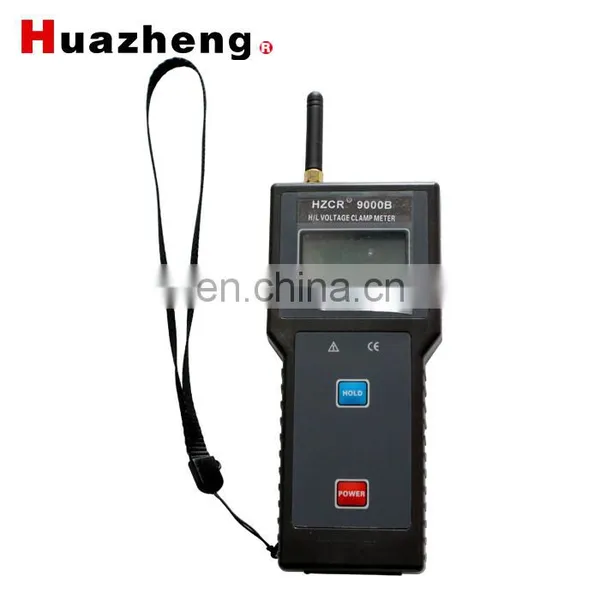

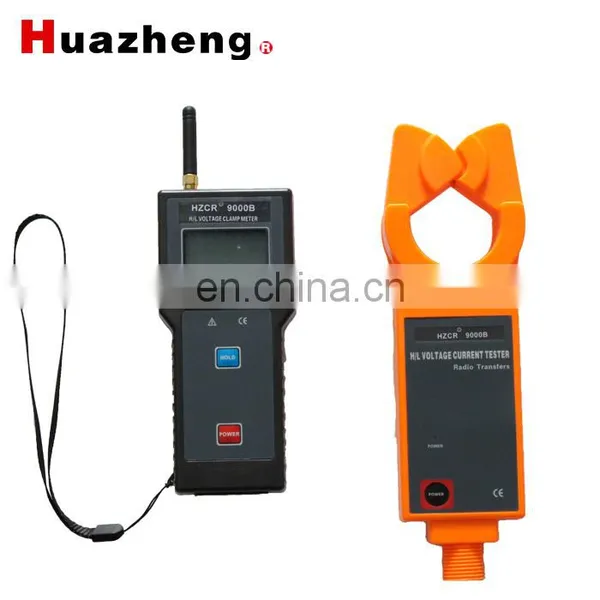

HZRC9200 high and low Voltage clamp on earth resistance meter
!
Product Description
clamp on earth resistance meter introduction:

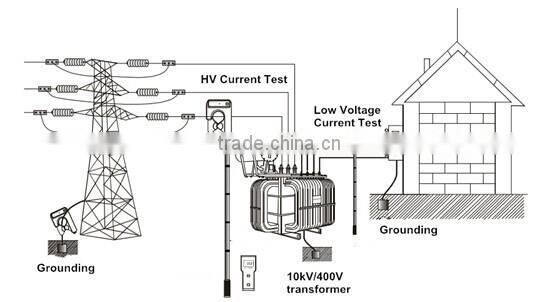

HZRC9200 H/L Voltage Clamp Current Meter can be used for insulating sheath wires(≤60kV)and bare wire (≤35kV) high voltage line current measurement and online current measure below 60kV,also with the factions of peak value holding, data holding, data storage and wireless transmission , etc. It is easy to clamp or disconnect the wire by pulling-down or forwarding the insulation rods of the special clamp current meter, with the advantages of safely and time-saving. Widely used in power plant, substation industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working. t can also be used as high and low voltage changing ratio tester , that is, respectively test the first loop and secondary loop high and low voltage change through manually calculation . The insulation rod is light and convenient, with the advantages of anti-moisture, high temperature resistance, anti-impact , bending resistance , high insulation , flexibility and other characteristics.
clamp on earth resistance meter specifications
Function |
H-voltage AC current measure,L-voltage AC /leakage current measure
AC current monitor online
|
Power Supply |
DC6V Alkaline Dry Battery(1.5V AAA X 4) |
Test Method |
Clamp CT, Integral Method;hook the meter on the line to test,save the physical power of user. |
Clamp Diameter |
Φ68mm |
Range of measurement |
0.00mA~1000A(50Hz/60Hz Automatic) |
Resolution |
0.01mA |
Shift |
0.00mA~1000A Automatic Shift |
Test Accuracy (23℃±5℃,≤80% RH) |
0.00mA~299mA: ±1%±3dgt |
| 0.30A~49.9A: ±1.5%±5dgt | |
| 50.0A~199.9A: ±2%±5dgt | |
| 200A~600A: ±3%±5dgt | |
| 601A~1000A: ±4%±5dgt | |
Display Mode |
4 digital LCD display |
LCD Dimension |
Tester: LCD: 35mm×21.5mm |
Meter Dimension |
Tester: 218mm×135mm×60mm |
Sampling Speed |
About 2 times/second |
Data Storage |
99 Groups,during storage, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full. |
PEAk Maintenance |
Automatically maintain the height of the test value,usually in the test mode pressPEAK,LCD top right corner will display “PE”,that is, to keep open the PEAK function, then press PEAK key to cancel this function key |
Circuit Voltage |
Test insulating sheath wires(≤60kV)and bare wire t( ≤35kV)
(operated with insulation rod)
|
Data Preservation |
Under general test mode, press HOLD button to preserve data, “DH” symbol display. then press HOLD Key to cancel this function |
Data Access |
“MR” symbol indicates, it can read the stored data by turning upwards and downwards. |
Overflow Display |
Exceed measurement range overflow function: “OL A” symbol display |
Auto Shut Down |
About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption. |
Battery Voltage |
When the battery voltage is below 4.8V, the symbol of battery voltage“ ”will show to remind to replace battery. |
Weight |
Tester:About 620g (Including battery)
Total quality of meter: about 2.3kg(including insulation rod and battery)
|
Work Temperature and Humidity |
-10℃ ~ 40℃; ≤80%Rh |
Storage Temperature and Humidity |
-10℃ ~ 60℃; ≤70%Rh |
interference |
No same frequency interference of 315MHz and 433MHz |
Insulated Rod Dimension |
Φ32mm, 1m/ Section(5 Sections) |
Insulation Intension |
Tester: AC 2kV/rms(Between core and shell)
Insulating rod: AC 100kV/rms(5 sections insulating rod all connections, between both ends)
|
Structure |
Anti-Dripping Type II |
accessories |

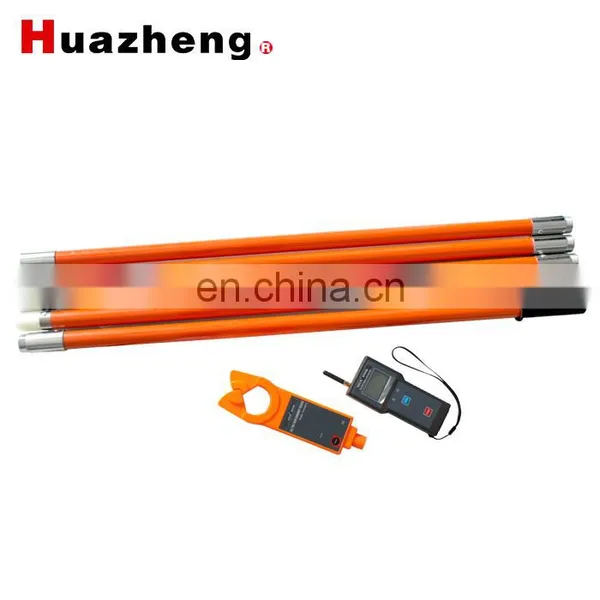

Tester:1set;meter box: 1 pcs; Insulating rod (1m): 5 sections;
Battery(alkaline battery LR03: 4pcs
|
Certifications
Quality Control
Packaging & Shipping
Our Services
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
