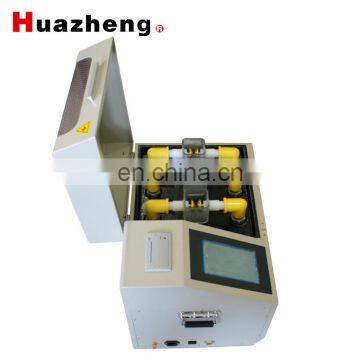

Transformer Oil Breakdown Voltage Tester BDV Insulation / Transformer oil tester machine
Transformer oil tester machine performance:
Insulating oil dielectric strength tester is also known as oil breakdown voltage tester or oil BDV tester.
Break down voltage is measured by observing at what voltage, sparking string between two electrode immersed in the oil, separated by specific gap. low value of BDV indicates presence of moisture content and conducting substances in the oil.
In this kit, oil is kept in a pot in which one pair of electrodes are fixed with a gap of 2.5 mm (in some kit it 4mm) between them.
1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety of operators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.
Transformer oil tester machine parameter:
Output Voltage | 0~80KV (100KV need special design) |
Voltage Distortion Rate | <3% |
Voltage Raising Speed | 0.5~5 KV/S (adjustable) |
Standing Time | 15min(adjustable) |
Boosting Interval | 5 min(adjustable) |
Boosting Frequency | 1~6 time(s) |
Booster Capacity | 1.5KVA |
Measuring Accuracy | ±3% |
Supply Voltage | AC100V~220V 50Hz±1 Hz |
Power | 200W |
Applicable Temperature | -0℃~45℃ |
Applicable Humidity | ≤75%RH |
Overall Dimension | 465 mm *385 mm *425mm |

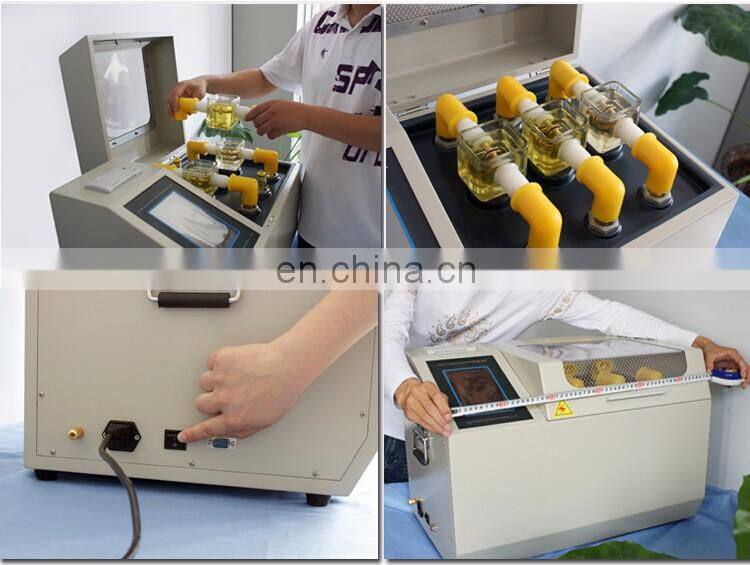

Transformer oil tester machine Show :
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
