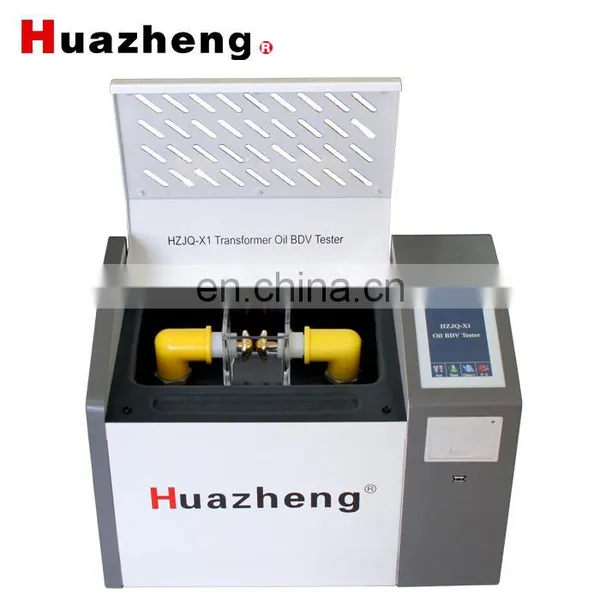

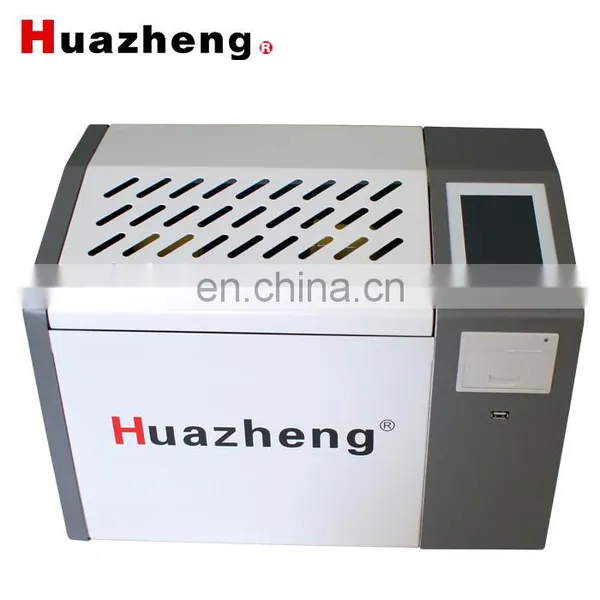

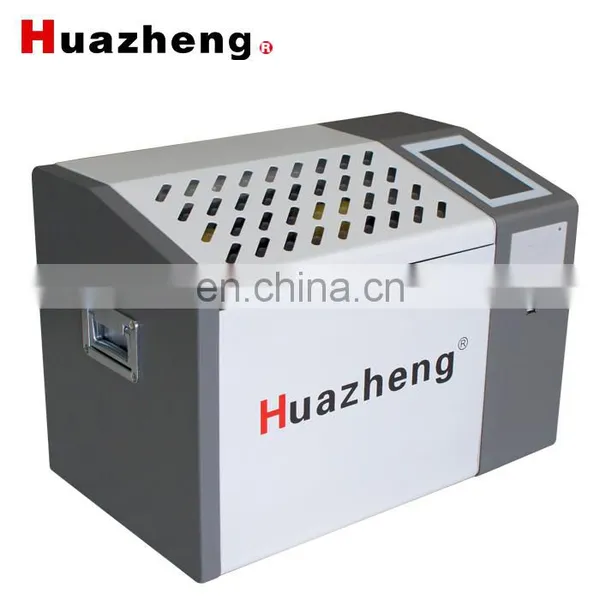

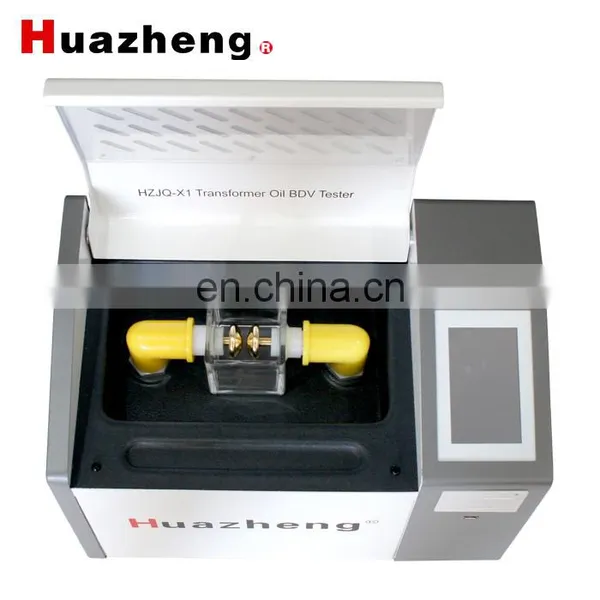

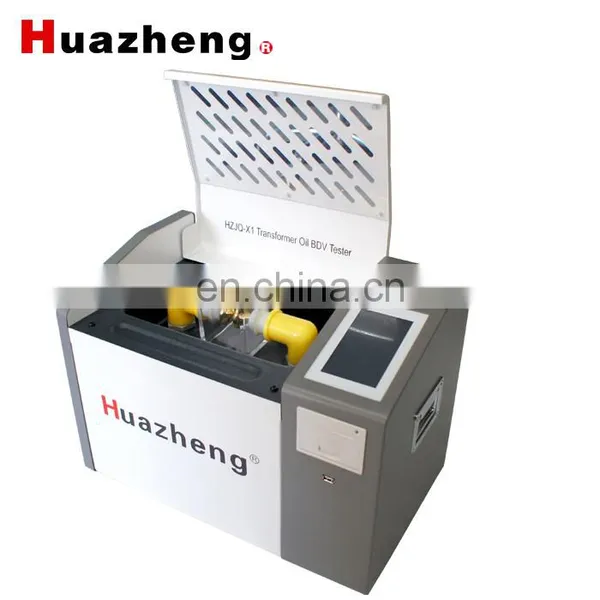

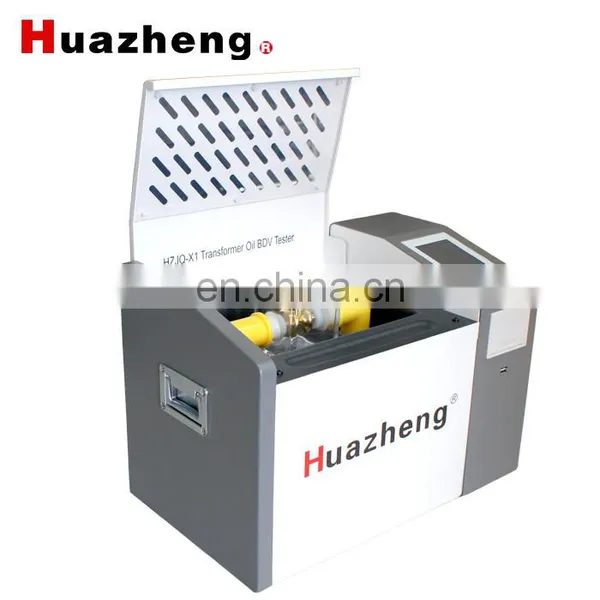

new product HZJQ-X1 bdv insulating oil test set automatic transformer oil strength tester

1.HS code is 9030899090.
2.Wooden box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available.">Oil BDV Test Kit Packaging:
1.HS code is 9030899090.
2.Wooden box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available.

new product HZJQ-X1 bdv insulating oil test set automatic transformer oil strength tester

Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type, and therefore, test on insulating oil dielectric strength is common and necessary. To meet the needs of the market, we have developed and produced a series of insulating oil dielectric strength testers according to national standard GB/T507-2002, industry standard DL429.9-91 and the latest Electric Power Industry Standard DL/T846.7-2004 by ourselves. This instrument, by using a single-chip microcomputer as the core, can operate in full automation with high accuracy, greatly improving work efficiency and reducing the labor intensity of workers. Moreover, it is small in size and convenient to carry.

II. KEY FUNCTION AND FEATURE

1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0~80KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations)

2. Display by large-screen LCD and prompt by Chinese menu

3. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.

4. Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.

5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.

6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.

7. With the function of displaying the measured temperature and system clock.

8. Communicate with computer with a standard RS232 interface.

III. MAJOR TECHNICAL INDICATORS

1,Output voltage: 0~80KV (optional)

2,Voltage distortion rate: <3%

3,Booster capacity: 1.5KVA

4,Measuring accuracy: ±3%

    5,Supply voltage: AC220V±10%   50Hz±1 Hz

    6,Power: 200W

    7,Applicable temperature: 0℃~45℃

    8,Applicable humidity: <75%RH

9,Overall dimension: 465×385×425

Company Profile

Huazheng Electric Manufacturing (baoding) Co., Ltd.

Huazheng Electric Manufacturing (baoding) Co., Ltd. is established in year of 2008, located at Baoding city, Hebei province, China. It is a professional company specializing in the development and production of electric power testing equipment. Main products are transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc. All of our products comply with international quality standard and obtained CE and ISO 9001 certificate. Our products are exported to over 100 countries and regions , and cooperate with some well-known enterprise in the world such as Ausgrid and Orient Oils, etc. We are dedicated to making HUAZHENG brand an industry benchmark in order to realize the dream of the HUAZHENG brand and serve the global clients. You are warmly welcome to visit Huazheng company!
