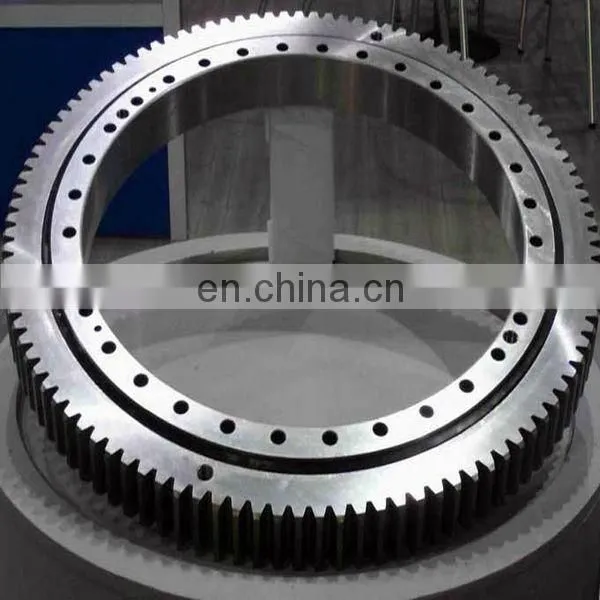

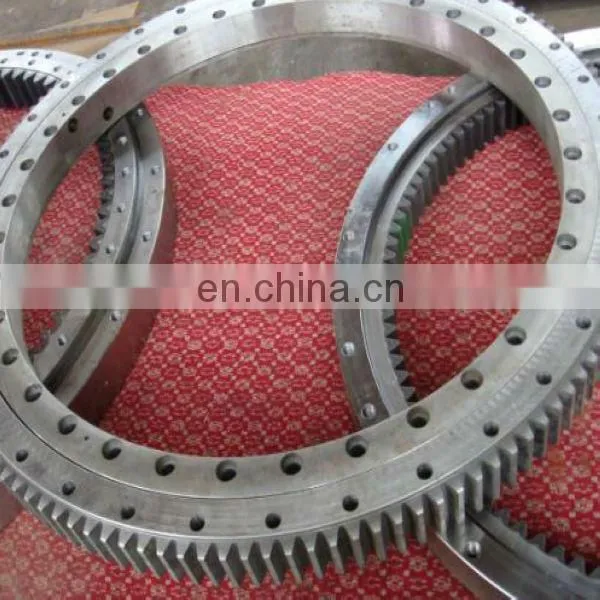

four-point contact ball slewing bearing internal gear 133.25.500

four-point contact ball slewing bearing internal gear 133.25.500

Brif introductions of interinal gear bearing 133.25.500

Slewing ring bearings can accommodate axial, radial and moment loads acting single or in combination and in any direction. They are not mounted in a housing or on a shaft, but directly to a seating surface. The inner and outer ring are supplied with mounting holes. Both rings may have integral gears. They are also referred to as slewing rings and tabletop bearings. Slewing ring bearing can perform oscillating (slewing) as well as rotating movements. They may be used without gears or with internal or external gears. Following the drawing of customers' design.

There are ball bearing, roller bearing and ball-roller bearing at type; There are single-row, double-row and three-row at structure. With teeth and without teeth on conduction(outer or inner ring); At dustproof and leak grease proof type, with airproof and without airproof. At mounting with flanged(outer or inner ring), with bolt hole and without flanged.

Single-row four point contact ball slewing ring:
010(no gear) 011.012(external gear) 013.014(internal gear)
HSB(no gear) HSN(external gear) HSW(internal gear)
QN(no gear) QU(extrnal gear) QW(internal gear)

Cross roller bearing:
110(no gear) 111.112(external gear) 113.114(internal gear)
HJN(no gear) HJB(external gear) HJW(internal gear)

Double-row ball slewing ring:
020(no gear) 021.022(external gear) 023.024(internal gear)

Three-row roller slewing ring:
130(no gear) 131.132(external gear) 133.134(internal gear)

Turntable bearing (slewing ring), also known as slewing ring bearing turntable, an affordable large-scale integrated load bearing, Be able to support large axial, radial load and overturning moment. Wheel bearings are generally of a mounting hole, inner gear or outer gear, lubrication holes and sealing devices, which can host design, compact structure, guidance is simple, easy to maintain. wheel bearings with or without gear, external gear and internal gear wheel four-point contact ball bearings, double row angular contact ball wheel bearings, cross-cylindrical roller wheel bearings, cross-tapered roller wheel bearings and three-row cylindrical roller recombination turntable bearing four series.

1) Single-row four-point contact ball slewing bearing

2) Single-row four-point contact ball slewing bearing(with flange)

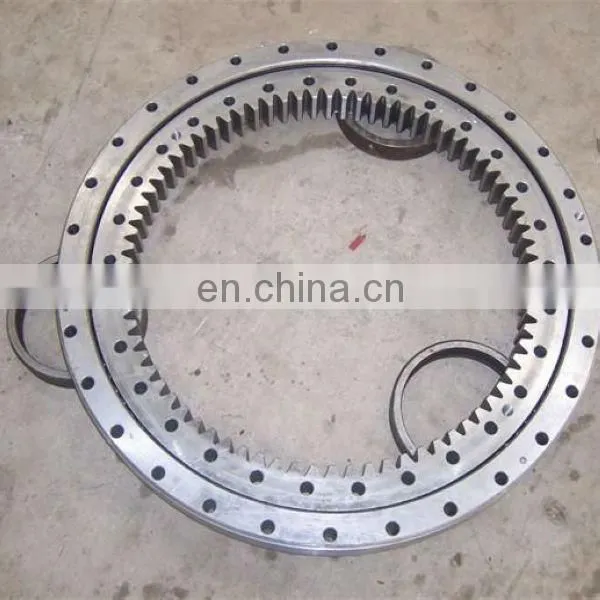

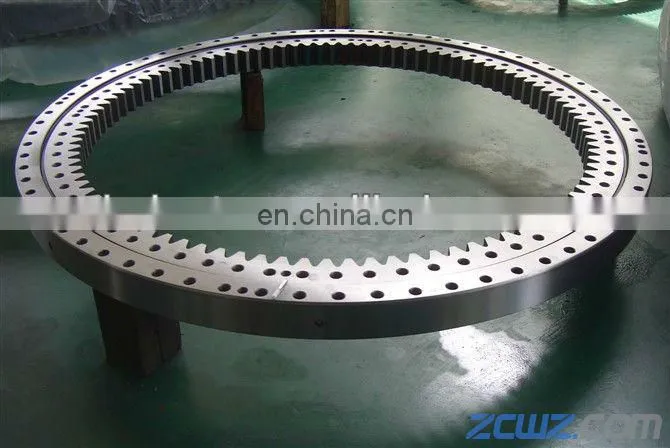

3) Single-row four-point contact ball slewing bearing(with internal gear)

4) Single-row four-point contact ball slewing bearing(with external gear)

5) Ball-roller type slewing bearing(with gear teeth)

6) Triple-row cylindrical roller slewing bearings(with gear teeth)

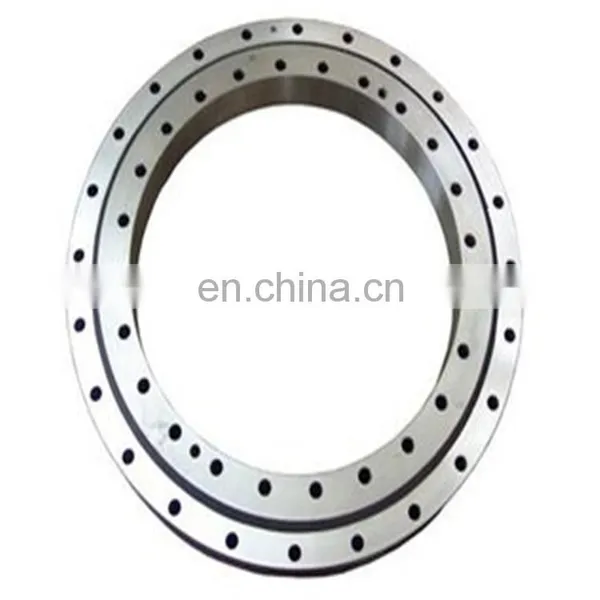

7) Four-Point Contact Ball Slewing Bearing(without teeth)

8) Double row four point contact roller slewing bearing

9) Cross roller slewing bearing

10) Cross roller slewing bearing(with gear teeth on inner ring)

11) Cross roller slewing bearing(with gear teeth on outer ring)
Quick Details of interinal gear bearing 133.25.500

Application areas:
mine machine, port hoisting machine, port oil transfer equipment, onshore and offshore crane; excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generation, other construction and industry machines or equipment.

Series of slewing bearing

RK series slewing ring bearings
These pre-engineered light profile slewing ring bearings offer high performance and reduced weight due to an optimized geometry that handles a combination of moment and thrust loads. Ideal for foundry shakeout tables, palletizers, wire winders, cable reels, welding tables and turntable applications where intermittent rotation and low velocity are present.

KH series slewing ring bearings
KH series heavy duty slewing rings are designed to provide precise positioning with consistent repeatability, in applications where rotation is constant, intermittent or oscillating. They are the ideal bearing for advanced rotary index tables or any design where the bearing will interface with other precision mechanical components.

HS series slewing ring bearings
HS series pre-engineered, light profile slewing rings feature rectangular cross sections, which allow for alternate hole patterns, improve stiffness, and the potential for more capacity. Ideal for cranes, aerial lifts, digger derricks, chute swivels, lift truck rotators, and industrial turntables.

HT series slewing ring bearings
HT series slewing rings are larger versions of the HS series, with increased ball diameter and cross-sectional area providing substantially more capacity. The internal configuration consists of deep groove gothic arch raceways and maximum ball complement, resulting in a four-point contact bearing that provides exceptional moment, thrust, and radial load capacities. Ideal for medium to heavy duty applications including cranes, aerial lifts, digger derricks, chute swivels, lift truck rotators, and industrial turntables.

XT series slewing ring bearings
XT series slewing ring bearings are custom designed with a rectangular cross section, and are available in sizes up to 218 inches OD (5500 mm). They are well suited for a wide range of applications where our standard product series do not meet demanding size, capacity, or weight requirements, including cranes, aerial lifts, excavators, wind turbines, utility derricks, log loaders and fellers, and feller heads.

DT series slewing ring bearings
The DT series consists of the eight-point ball bearing that originally developed to provide maximum load capacity for given envelope and bolt circle diameters. It provides an up to 80% increase in capacity over that of a single row four-point design, yet has a smaller profile than a three-row roller design and provides exceptional moment, radial, and thrust load capacities. DT series bearings have been used successfully in heavy duty applications including large excavators, large cranes, mining equipment, wind turbines, and telescopes.

XR series slewing ring bearings
The XR series consists of cross roller bearings, which provide a high degree of stiffness and low rotational torque within a minimal envelope. Consider this design when a four-point contact ball bearing does not meet the operating performance requirements for torque and stiffness. XR series roller bearings have been used successfully in applications requiring extra stiffness with a low torque requirement, including radar, military turrets, machine tools, and excavators.

TR series slewing ring bearings
The TR series consists of three-row roller bearings, offering the highest capacity for a given diameter. When an XR or DT series bearing doesn't meet your stiffness and capacity requirements, consider the TR series. TR series roller bearings optimize capacity, provide low frictional resistance and minimize deflection. TR series roller bearings have been used successfully in heavy duty applications requiring extra stiffness and capacity, including radar, cranes, excavators, stackers and reclaimers, and heavy mill equipment.

Features of interinal gear bearing 133.25.500
