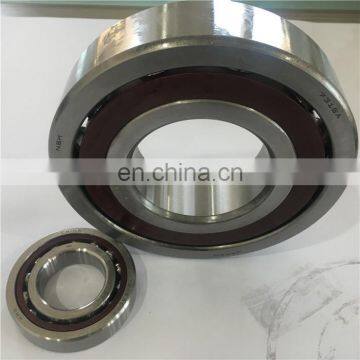

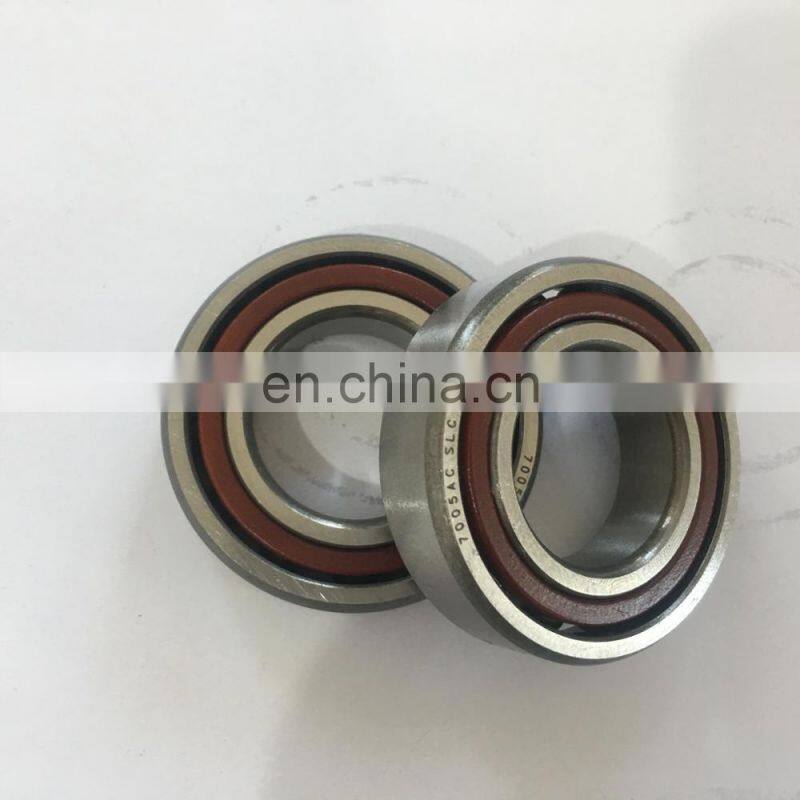

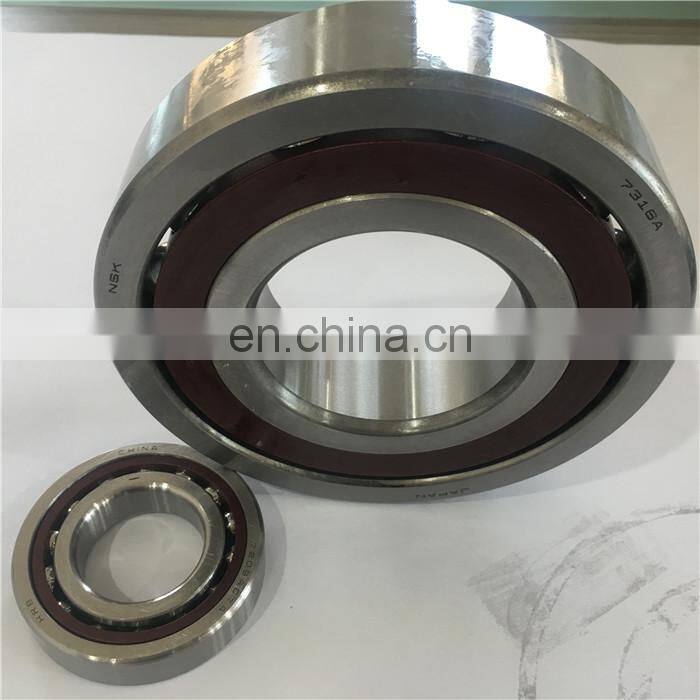

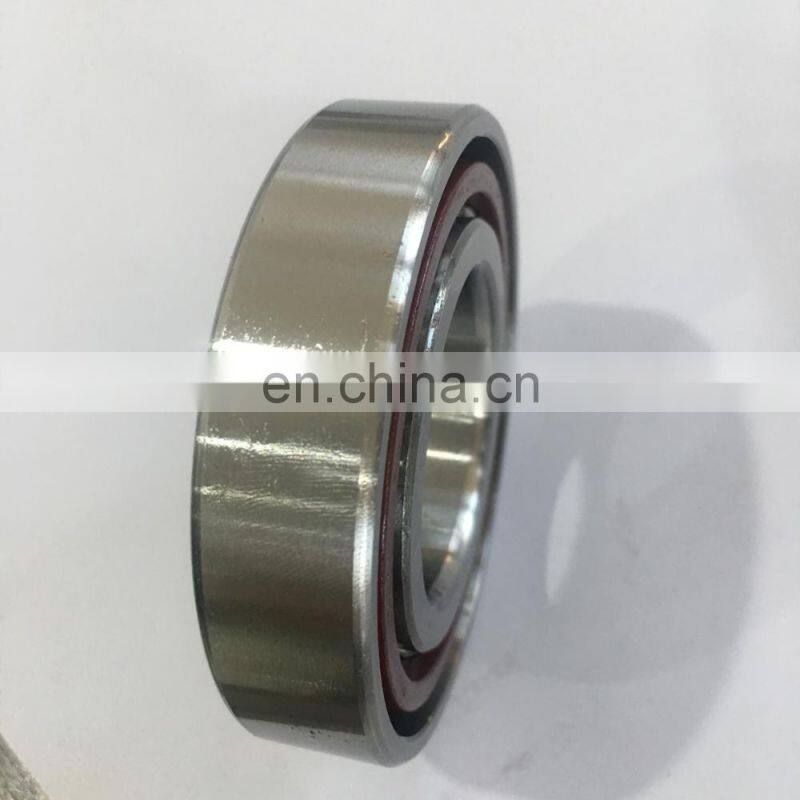

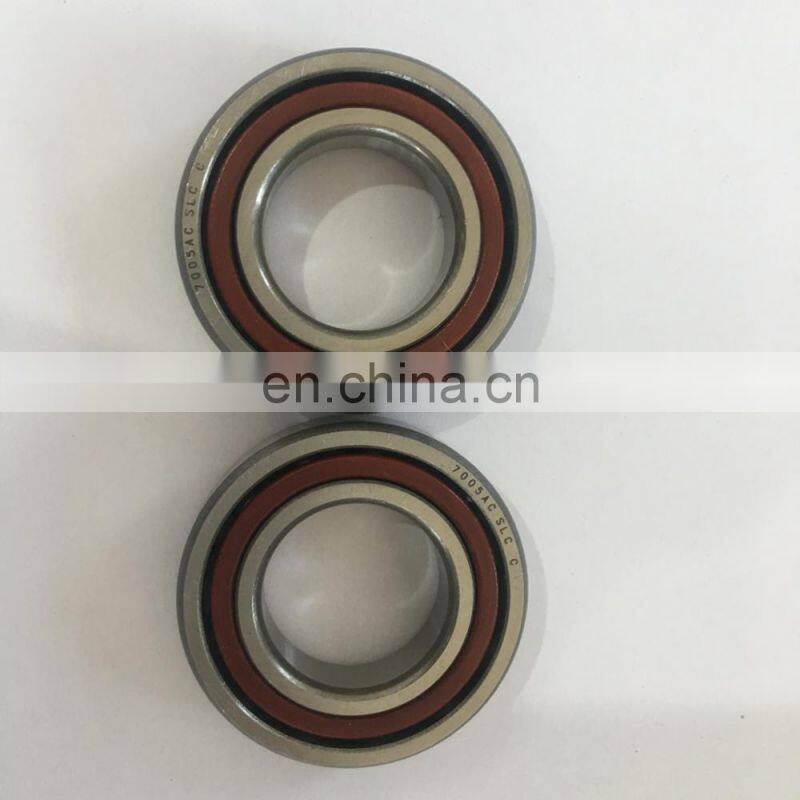

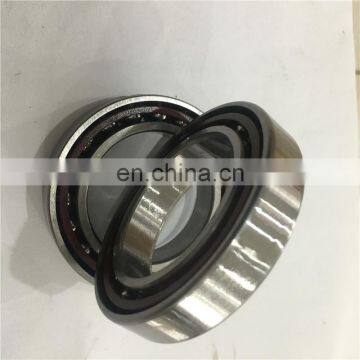

angular contact ball bearing 7203
Features:
1) Load capacities are higher than deep groove ball bearings of same dimensions
2) Used for bearing radial-axial combined loads or pure thrust loads
3) Low operating friction and high limiting speed
How to prolong angular contact ball bearing service life?
(1) Bearing installation should be in clean room, bearing to carefully matching, bearing with spacing ring should pass grinding, and to maintain the internal and external ring spacing ring contour premise, spacing ring parallel degree should be controlled in 1 um the following
(2) Bearing before the installation, should be cleaned, when cleaning, inner ring slope up, hand induction flexible, no stagnation feeling, dry, in the specified amount grease, in the case of oil mist lubrication should be put in a small amount of oil mist oil;
(3) Bearing installation should use special tools, stress even, it is strictly prohibited to hammer;
(4) Bearing should be stored clean and ventilated, no corrosion gas, relative humidity do not exceed 65%, long-term storage should be regularly rust
Inner diameter |
17mm |
Outer diameter |
40mm |
Width |
12mm |
Dynamic |
11KN |
Static |
5.85KN |
Fatigue load limit |
0.25KN |
Reference speed |
22000r/min |
Limiting speed |
22000r/min |
Weight |
0.07kg |
Series of angular contact ball bearing
NO.s |
principal dimensions |
Basic load ratings dynamic static |
Fatigue load limit |
Speed ratings Reference speed |
Limiting speed |
|
|||
NO.s |
d(mm) |
D(mm) |
B(mm) |
C(kN) |
C0(kN) |
Pu(kN) |
r/min |
|
Weight(kg) |
7200 |
10 |
30 |
9 |
7.02 |
3.35 |
0.14 |
30000 |
30000 |
0.03 |
7201 |
12 |
32 |
10 |
7.61 |
3.8 |
0.16 |
26000 |
26000 |
0.036 |
7301 |
12 |
37 |
12 |
10.6 |
5 |
0.208 |
24000 |
24000 |
0.063 |
7202 |
15 |
36 |
11 |
9.5 |
5.1 |
0.216 |
26000 |
26000 |
0.045 |
7302 |
15 |
42 |
13 |
13 |
6.7 |
0.28 |
20000 |
20000 |
0.081 |
7203 |
17 |
40 |
12 |
11 |
5.85 |
0.25 |
22000 |
22000 |
0.07 |
7303 |
17 |
47 |
14 |
15.9 |
8.3 |
0.355 |
19000 |
19000 |
0.11 |
7204 |
20 |
47 |
14 |
13.3 |
7.65 |
0.325 |
18000 |
19000 |
0.11 |
7304 |
20 |
52 |
15 |
19 |
10 |
0.425 |
18000 |
18000 |
0.15 |
7205 |
25 |
52 |
15 |
15.6 |
10 |
0.43 |
17000 |
17000 |
0.13 |
7305 |
25 |
62 |
17 |
26.5 |
15.3 |
0.655 |
15000 |
15000 |
0.24 |
7405 |
25 |
80 |
21 |
39.7 |
23.6 |
1 |
11000 |
11000 |
0.61 |
7206 |
30 |
62 |
16 |
24 |
15.6 |
0.655 |
14000 |
14000 |
0.19 |
7306 |
30 |
72 |
19 |
36.5 |
21.2 |
0.9 |
13000 |
13000 |
0.37 |
7406 |
30 |
90 |
23 |
47.5 |
29 |
1.22 |
10000 |
10000 |
0.85 |
7207 |
35 |
72 |
17 |
31 |
20.8 |
0.88 |
12000 |
12000 |
0.3 |
7307 |
35 |
80 |
21 |
41.5 |
26.5 |
1.14 |
11000 |
11000 |
0.49 |
7407 |
35 |
100 |
25 |
60.5 |
38 |
1.6 |
8500 |
9000 |
1.1 |
7208 |
40 |
80 |
18 |
36.4 |
26 |
1.1 |
10000 |
10000 |
0.38 |
7308 |
40 |
90 |
23 |
50 |
32.5 |
1.37 |
10000 |
10000 |
0.61 |
7408 |
40 |
110 |
27 |
70.2 |
45 |
1.9 |
8000 |
8000 |
1.4 |
