KR Series Cam Follower Bearings KR13 Bearing

Name: KR Series Cam Follower Bearings KR13 Bearing
Brand: CLUNT
Availability: InStock

FOB Price

US$ 1.3 - 2 / Set

100 Sets(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CLUNT	Place of Origin	Shandong, China
Model Number	KR13, CF16 Cam Follower Bearings	Number of Row	Single Row
Seals Type	steel cage	Precision Rating	P0 P6 P5 P4 P2
Bore Size	4.99, 5

Product Description

KR series Cam Follower Bearings KR13 bearing

description of Cam Follower Bearings

cam followers have an internal design very similar to that of a needle or cylindrical roller bearing. They are characterized by a thick-walled outer ring that enables them to accommodate shock loads while reducing distortion and bending stresses. The outer ring running surface is crowned as standard. However, cam followers with cylindrical (flat) running surfaces are available for certain applications.

Instead of an inner ring, cam followers have a solid stud (pin) that is threaded so that the cam follower can be quickly and easily attached to appropriate machine components by means of a hexagonal nut.

Axial guidance for the outer ring is provided by an integral flange at the head of the stud and a flange ring pressed onto the stud, or by the roller complement. Cam followers are pre-greased, ready-to-mount units that are suitable for all types of cam drives, tracks and conveyor systems.

cam followers are available in three basic designs:

KR design
NUKR design
PWKR design

All three cam follower designs have the same main dimensions. The differences are in their internal design, which make them suitable for various operating conditions. In contrast to ball and roller bearings, where the bearing size refers to the bore diameter d, for cam followers the size refers to their outside diameter D.

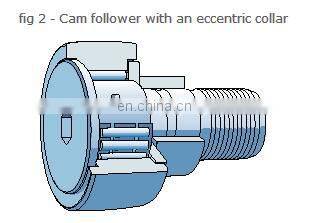

All designs are available with a concentric seat (fig 1) or an eccentric collar (fig 2) on the stud. An eccentric collar, which has a shrink-fit onto the stud, enables less stringent manufacturing position tolerances to be specified for associated components. The values for the adjustable eccentricity are listed in the product tables. An eccentric collar is identified by the letter E at the end of the basic designation

the introduction cam Follower Bearings track roller bearings KR 13

KR13 13mm Cam Follower Needle Roller Bearing, inner diameter is 5mm, outer diameter is 13mm and the length is 23mm.Thread standard is M5x0.8, the size of this bearing is 5 x 13 x 23 mm.

Item: KR13 Bearing
Type: Cam Follower Needle Roller Bearing
Size: 5mm x 13mm x 23mm
Quantity: One Bearing
Dynamic Load Rating: 2550 N
Static Load Rating: 2157.5 N
Equal: CF5

Dimensions (mm)
d1	D	B	B1	B2	G	G1	C	C1
5	13	10	23	13	M5x0.8	7	9	0.5

track roller bearings application:

Shaft of large machine tool, Wheel shaft box, Large reducer, Bearing of roller steel mill, Agricultural machinery, construction, hydro and wind engineering, machine tools and manufacturing machinery, material handling and packaging industry, port engineering, electric tools industry, transmission, the semiconductor, pump and fan, industrial robotics and automation, rubber, plastic and chemical, textile machine, metallurgy,tractor, woodworking machinery, office automation equipment.

Materials:
Material for needle roller is GCr15 bearing steel, quench-hardening HRC60---65.
Material for inner and outer races is GCr15 bearing steel or carburizing steel.
Material for cages is quality low-carbon steel or reinforced nylon.

Cam Follower Bearings //track roller bearings type:

track roller bearing types:
Yoke type track rollers	without axial guidance		RSTO, STO, RNA22…2RS, NA22…2RS,
	with axial guidance		NATR…PP
	with axial guidance	full completement	NATR, NATV…PP, NATV, NUTR, PWTR...2RS, NNTR…2ZL,
Stud thread type track roller	with axial guidance		KR…PP, KR, KRE…PP, KRV…PP, NUKR, NUKRE, PWKR…2RS, PWKRE…2RS
track roller	sealed	double row	LFR..2Z, LR50, LR52, LR53
track roller	sealed	single row	LR6, LR2, KLR
Stud type track roller	sealed	double row	ZL52…DRS, ZLE52…2Z, KR52…2RS
Stud type track roller	sealed	single row	ZL2…DRS

KR series Cam Follower Bearings

Crowned OD		Cylindrical OD		Dimensions(mm)						N.W.
without seals	with seals	without seals	with seals	d	D	B	L	I	G	≈g
KR10	KR10 PP	KR10 X	KR10 PPX	3	10	7	17	9	M3x0.5	4.5
KR12	KR12 PP	KR12 X	KR12 PPX	4	12	8	20	11	M3x0.5	7.5
KR13	KR13 PP	KR13 X	KR13 PPX	5	13	9	23	13	M4x0.7	10.5
KR16	KR16 PP	KR16 X	KR16 PPX	6	16	11	28	16	M6x1	18.5
KR19	KR19 PP	KR19 X	KR19 PPX	8	19	11	32	20	M8x1.25	28.5
KR22	KR22 PP	KR22 X	KR22 PPX	10	22	12	36	23	M10x1	45
KR26	KR26 PP	KR26 X	KR26 PPX	10	26	12	36	23	M10x1	60
KR30	KR30 PP	KR30 X	KR30 PPX	12	30	14	40	25	M12x1.5	95
KR32	KR32 PP	KR32 X	KR32 PPX	12	32	14	40	25	M12x1.5	105
KR35	KR35 PP	KR35 X	KR35 PPX	16	35	18	52	32.5	M16x1.5	170
KR40	KR40 PP	KR40 X	KR40 PPX	18	40	20	58	36.5	M18x1.5	249
KR47	KR47 PP	KR47 X	KR47 PPX	20	47	24	66	40.5	M20x1.5	390
KR52	KR52 PP	KR52 X	KR52 PPX	20	52	24	66	40.5	M20x1.5	460
KR62	KR62 PP	KR62 X	KR62 PPX	24	62	29	80	49.5	M24x1.5	815
KR72	KR72 PP	KR72 X	KR72 PPX	24	72	29	80	49.5	M24x1.5	1140
KR80	KR80 PP	KR80 X	KR80 PPX	30	80	35	100	63	M30x1.5	1870
KR85	KR85 PP	KR85 X	KR85 PPX	30	85	35	100	63	M30x1.5	2030
KR90	KR90 PP	KR90 X	KR90 PPX	30	90	35	100	63	M30x1.5	2220

Cam Follower Bearings //track roller bearings
