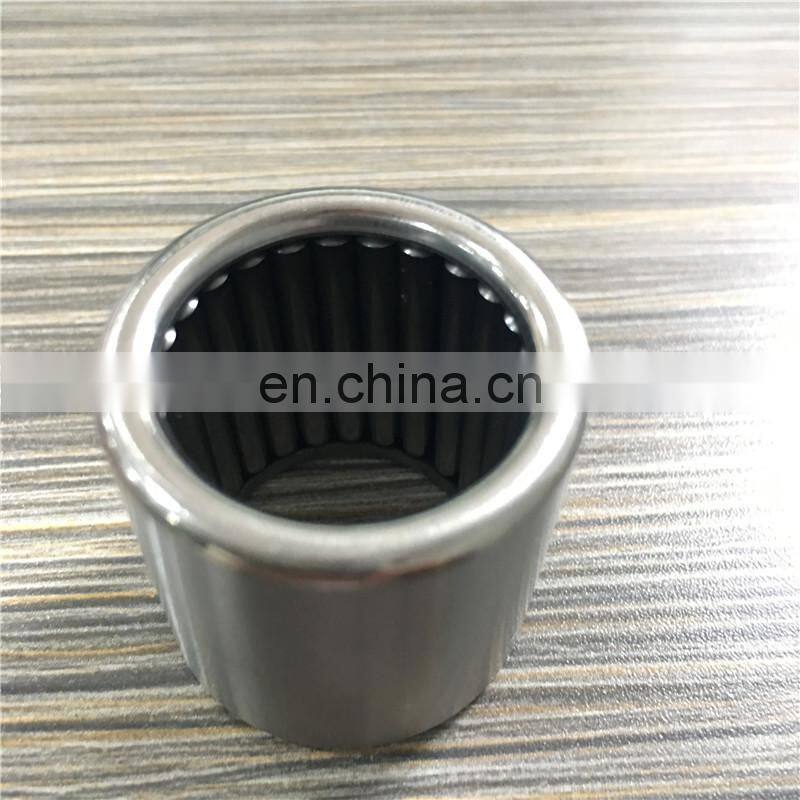

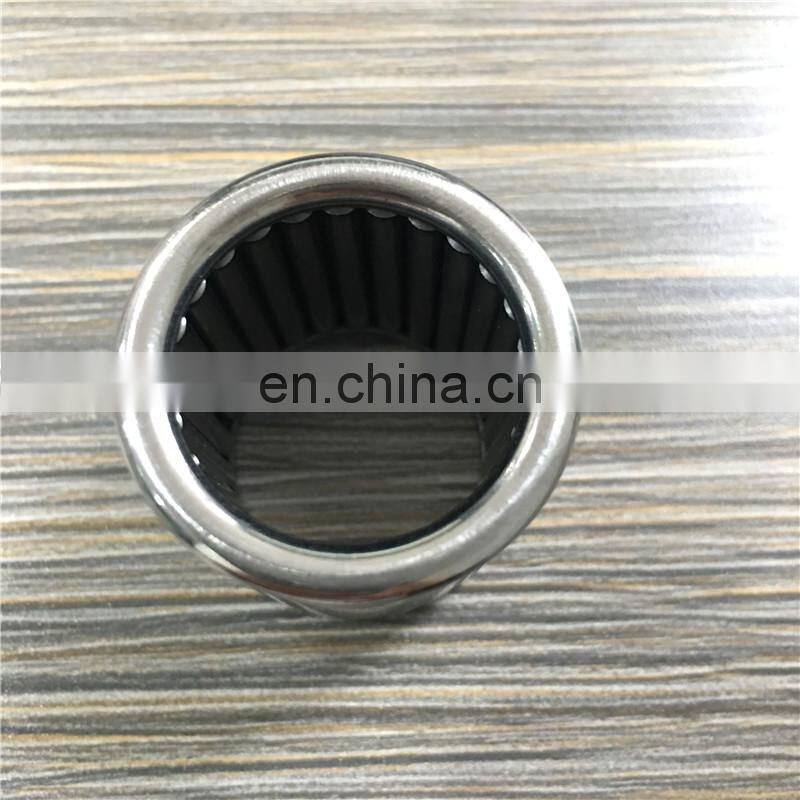

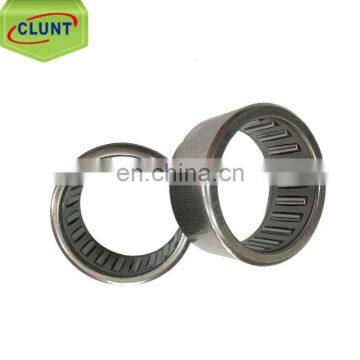

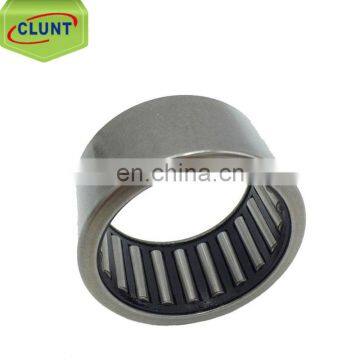

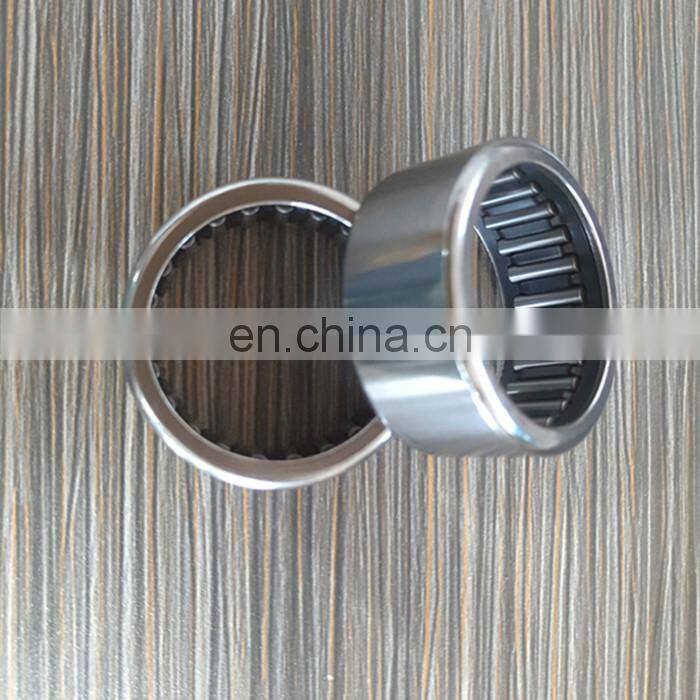

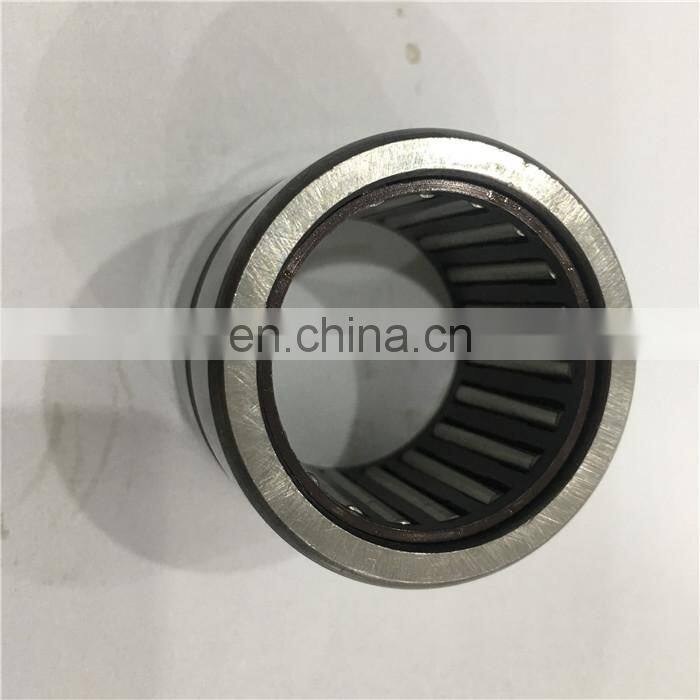

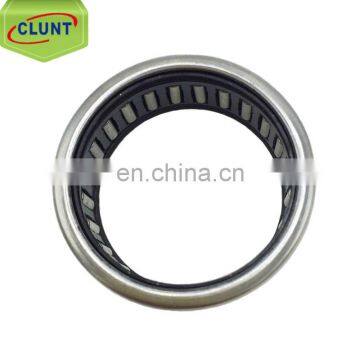

BK3020 Bearing Drawn Cup Needle Roller Bearing 30x37x20mm

A radial needle bearing CLUNT its small cross-sectional dimension, bearing rigidity, have a high radial load bearing capacity is particularly suitable in the case of radial mounting space is limited in the choice of site. In the case of the shaft and bearing swing it can also be widely applied. However, needle roller bearings can withstand pure radial load, can not limit the axial displacement and housing, but also does not allow the axis of the inner and outer ring axis angular errors generated during bearing installation.


Needle roller bearings

Double row needle roller bearings

Long cylindrical roller bearings
NA, RNA type
CLUNT standard needle roller bearings NA type, outer side with ribs or elastic locking collar, no inner wall. And a single and double row roller two structural types. And whether single or double row needle roller bearings, inner ring can be made of the NA-type or without inner structure type RNA type.
An annular lubrication grooves and lubrication holes large series of needle roller bearing outer ring. NA-type needle bearing outer ring assembly (outer ring, needle roller and cage) can not be separated, but if the inner ring can be separated from the outer components.
Needle roller bearings without inner ring in direct contact with the journal surface, can further reduce bearing radial mounting position size requirements. But requires the journal surface hardness and dimensional accuracy should meet the technical requirements of the respective bearing raceways.

NAV, RNAV type
NAV type and RNAV type is not with cage full complement needle roller bearings. Type in the NA and RNA derived based on the bearing structure. Its carrying capacity greater than the NA type and RNA type bearings, but the speed is lower than the performance of NA type and RNA type bearings. At high speed is not suitable for working conditions to use.

NAO type
NAO inner and outer rings no wall, there are single or double row needle. When the double row needle, outer ring with lubrication grooves and lubrication holes.

K type
   K type known as "needle roller and cage assembly," no bearing inner and outer rings of the structure. It is the smallest radial bearing a class of bearings. Which the shaft surface and bearing surface to work as a raceway, therefore, requested with matching hardness and dimensional accuracy of the shaft surface and the bearing surface shall be substantially meet the corresponding technical requirements bearing raceways.

Long cylindrical roller bearings
Long cylindrical roller bearings, bearing similar characteristics with the use of needle roller bearings, but radial cross-section than the large size bearings needle roller bearings, and therefore can withstand greater radial load.
Long cylindrical roller bearings and needle roller bearings needle, its ratio of length to diameter (aspect ratio) greater than 3, the difference lies in long cylindrical roller bearing roller diameter greater than 5 mm. Therefore, in a structural form, long cylindrical roller bearings and needle roller bearings have many of the same structure.
Long cylindrical roller bearings with needle bearings, can only bear the pure radial load, can not limit the axial displacement of the bearing, bearing installation, it does not allow the axis of the inner and outer ring axis angular error generated.

NAOL type
NAOL type and needle roller bearing NAO same structure. Inner and outer rings are no ribs,

NAL type
NAL same type and NA-type needle bearing structures. Outer side with ribs or elastic locking collar, no inner wall.

1:Plastic bag+single box+outer carton+wooden pallet

2:Customer requirements
