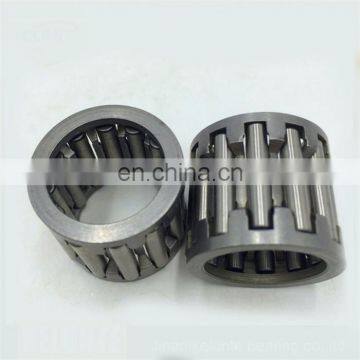

K25x29x10 25x29x10mm Needle Roller Cage Assembly Bearing K25x29x10

Descriptions of  K25*29*10 Needle Roller and Cage

K25X29X10 Needle Roller And Cage Assemblies have a complement of needle rollers held in place by a cage. With no inner or outer ring, the low cross section provides maximum load-carrying capability within the smallest envelope. The mating shaft and housing are normally used as inner and outer raceways.

The K25X29X10 Needle Roller And Cage Assemblies design makes for easy handling and installation. Controlled contour rollers with an optimum profile reduce end stresses and allow operation under moderate misalignment. A variety of cage designs, styles and materials, as well as multiple roller paths and segmented construction, meet broad application requirements.

Single row needle roller cage bearing 25mm inside x 29mm outside x 10mm width

Needle roller and cage assemblies are single or double row units comprising cages and needle rollers. Since their radial section is no greater than the diameter of the needle rollers, needle roller and cage assemblies allow bearing arrangements with a very small radial design envelope to be achieved. They have very high load carrying capacity, are suitable for high speeds and can be easily fitted.

If the raceways are produced to high geometrical accuracy, bearing arrangements with high runout accuracy can be achieved.

The radial internal clearance can be influenced by the needle roller sort and by the shaft and housing tolerance.

Needle roller and cage assemblies require a hardened and ground raceway on the shaft and in the housing.

Dimensions
Fw: 25mm
Ew: 29mm
Bc: 10mm

Basic dynamic load rating, radial: 9900 N
Basic static load rating, radial: 15400 N
Fatigue limit load, radial: 1930 N

Limiting speed: 18100 1/min
Reference speed: 10200 1/min

Mass: 8.5g

Technic data of  K25*29*10 Needle Roller and Cage

 K series needle roller bearings

 Product pictures showing

About us

1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept

Main bearing products

 Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.

 Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.

 Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.

 Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.

 Cylindrical roller bearing: N series, NU series, NJ series, etc.

 Pillow block bearing: UC series, UCP series, UCF series, UCFL series.

 Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.

 Needle Roller Bearing

 Sliding bearing

 Slewing Bearing

 Rod End Joint Bearing

 Ceramic Bearing

 Bearing Accessories

Excellent and high quality control

1.Rich Inventory to mostly shorten the delivery time

2.Package design as clients' requirement

3.Providing the most economic carriage solution

4.OEM manufacturing supplied(Including clients' own brand)

5.Produce as drawings provided by clients

6.Design drawings as specifications and applications

7.Preferred payment term:T/T;Paypal;Western Union

Through the organized quality assurance system, our company strive to accomplish

a. Fullfill it's commitment towards quality products,

b. Efficient delivery time, generally 3-7 days,

c. Provide immediate and efficient response to customers' feedback,

d. Germany imported technology, CNC machines.

e. Provide OEM&Customized service.

Processing flow
