high quality thrust ball bearing 51126 bearing size
Thrust ball bearing 51126
Thrust ball bearings of this type are suitable for the accommodation of axial loads in one direction and can locate a shaft in one direction; they may not, however, be subjected to any radial load.

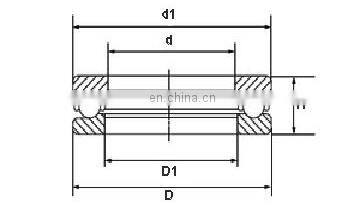

d: 130mm
d1: 170mm
D: 170mm
D1: 132mm
H: 30mm
Basic load rating dynamic: 111'000 Newtons
Basic load rating static: 425'000 Newtons
Speed rating grease: 1'400 r/min
Speed rating oil: 1'900 r/min
Thrust ball bearing 51126 specification:
| Specifications | ||
| Bearing Type | with grooved raceway(s) | |
| Bore Dia (d) | 130.000 | mm |
| Outer Dia (D) | 170.000 | mm |
| Radius (min) (rs) | 1.00 | mm |
| Static Load Rating (Cor) | 392,000 | lbs |
| Dynamic Load Rating (Cr) | 117,000 | N |
| Static Load Rating (Cor) | 392,000 | N |
| Max Speed (Grease) | 1,400 | rpm |
| Max Speed (Oil) | 1,900 | rpm |
| Height (H) | 30.000 | mm |
| Outer Dia. Pilot (D1) | 170.000 | mm |
| Bore Dia. Clearance (d1) | 132.000 | mm |
| Weight (g) | 1,707.00 | grams |
| Material | 52100 chrome steel, or equivalent. | |

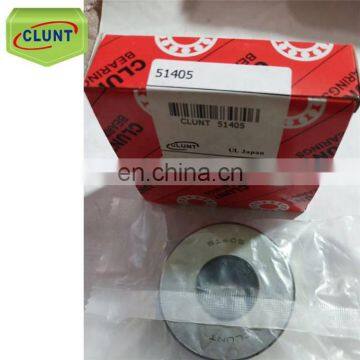

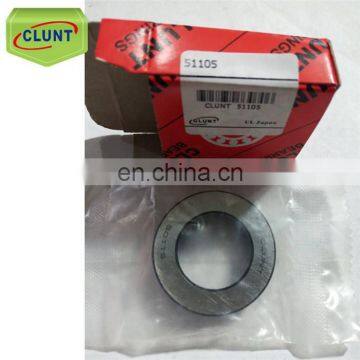

Thrust ball bearing 51126 pics;
Packing &Delivery
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
