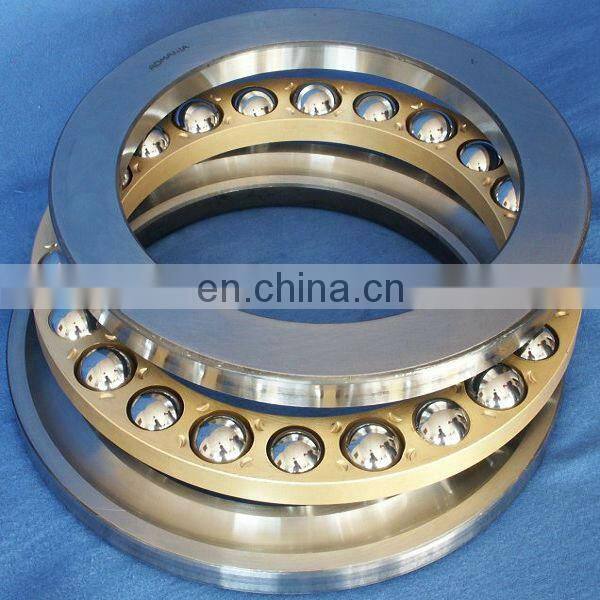

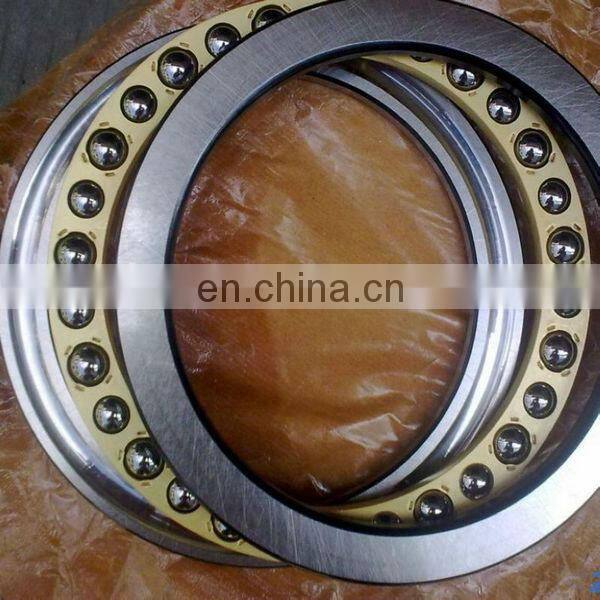

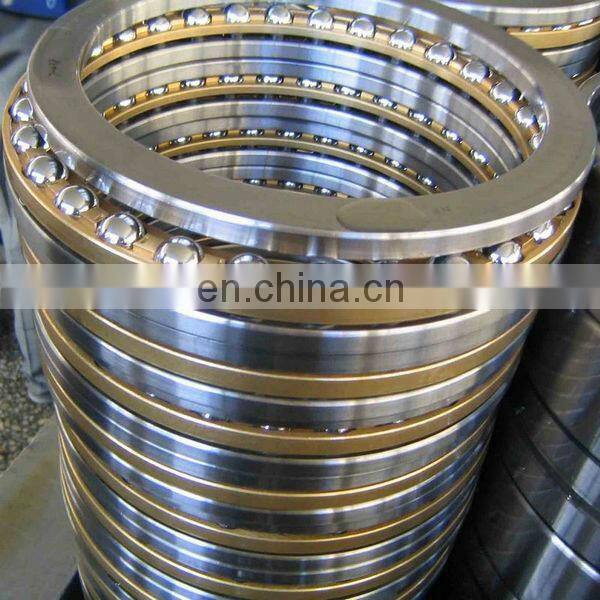

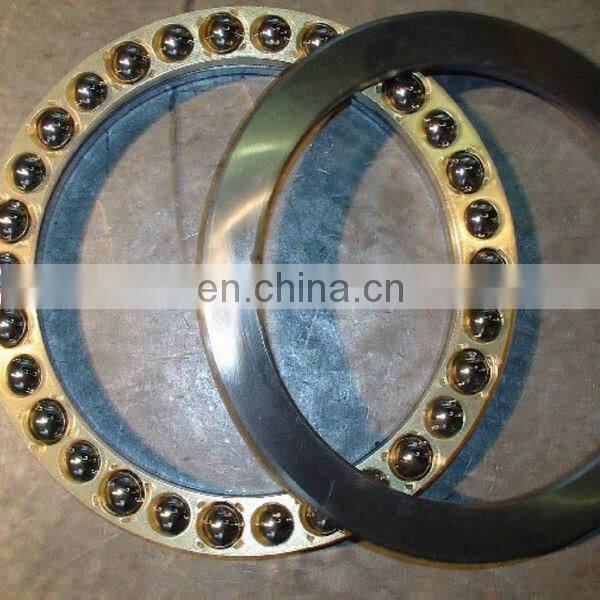

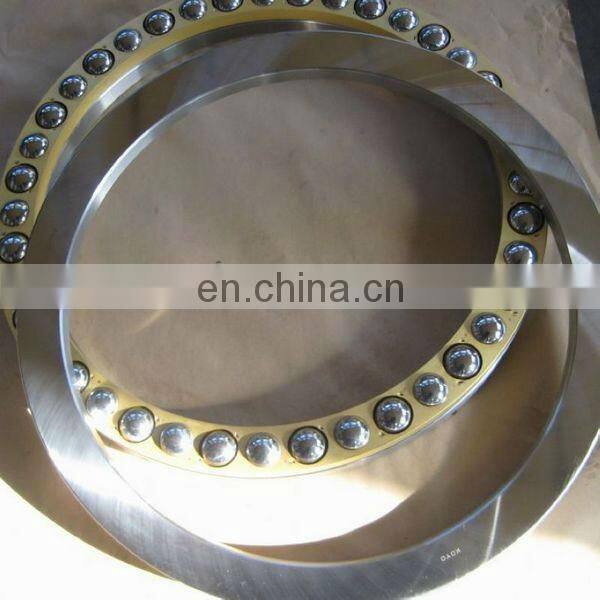

Low price thrust ball bearings 51156 bicycle ball bearing size 280*350*53mm
|
Bearing NO. |
Brand | d(mm) | D(mm) | T(mm) |
Maximum Rotational Speed(rpm) |
Static Load Capacity(KN) |
Dynamic Load Capacity(KN) |
Mass(KG) |
| 51156 | CLUNT | 280 | 350 | 53 | 2000 | 1985 | 1356 | 12.1 |
Bearing NO.: 51156
Type: Thrust Ball
Produce Capacity: Bore size from 5mm-600mm
Stock: Rich
Package:
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your requirement
Lead Time: 1-3 days for small quantity; 5-7 days for large quantity
2.Applications of thrust ball bearing 51156
Thrust bearings are commonly used in automotive, marine, and aerospace applications. They are also used in the main and tail rotor blade grips of RC (radio controlled) helicopters.
Thrust bearings are used in cars because the forward gears in modern car gearboxes use helical gears which, while aiding in smoothness and noise reduction, cause axial forces that need to be dealt with. The double helical or herringbone gear balances the thrust caused by normal helical gears.
3.Thrust ball bearing 51000 series - 51156
| BEARING NO. | d(mm) | D(mm) | B(mm) | MASS(kg) |
| 51124 | 120 | 155 | 25 | 1.16 |
| 51126 | 130 | 170 | 30 | 1.8 |
| 51128 | 140 | 180 | 31 | 2.1 |
| 51128M | 140 | 180 | 31 | 2.1 |
| 51130 | 150 | 190 | 31 | 2.2 |
| 51130M | 150 | 190 | 31 | 2.2 |
| 51132 | 160 | 200 | 31 | 2.3 |
| 51132M | 160 | 200 | 31 | 2.3 |
| 51134 | 170 | 215 | 34 | 3.3 |
| 51134M | 170 | 215 | 34 | 3.3 |
| 51136 | 180 | 225 | 34 | 3.5 |
| 51136M | 180 | 225 | 34 | 3.5 |
| 51138 | 190 | 240 | 37 | 4.1 |
| 51138M | 190 | 240 | 37 | 4.1 |
| 51140M | 200 | 250 | 37 | 4.2 |
| 51144 | 220 | 270 | 37 | 4.65 |
| 51148 | 240 | 300 | 45 | 7.49 |
| 51152 | 240 | 300 | 45 | 8.1 |
| 51156 | 280 | 350 | 53 | 12.3 |
4.Pictures show
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
About us
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept
Main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
Excellent and high quality control
1.Rich Inventory to mostly shorten the delivery time
2.Package design as clients' requirement
3.Providing the most economic carriage solution
4.OEM manufacturing supplied(Including clients' own brand)
5.Produce as drawings provided by clients
6.Design drawings as specifications and applications
7.Preferred payment term:T/T;Paypal;Western Union
Through the organized quality assurance system, our company strive to accomplish
a. Fullfill it's commitment towards quality products,
b. Efficient delivery time, generally 3-7 days,
c. Provide immediate and efficient response to customers' feedback,
d. Germany imported technology, CNC machines.
e. Provide OEM&Customized service.
Processing flow
1. Factory direct goods, price advantage, short production term
2. Germany imported equipment
3. Strictly quality control, 500000 pcs providing capacity monthly
4. Complete customer service system
5. 10 years manufacturing and 5 years exporting experiences
6. Customers involving all over the world.
7. Accepting small quantity sample order
8. Customer service purposes
9. Self-owned brand - CLUNT
10. Long-term cooperated forwarders make shipping cost lower and fast.
11. Products certifications: ISO 9001, CE, BV
12. 2 years quality guarantee.
