Washing Machine Ball Bearings 51203 51204 Thrust Ball Bearing 51202

FOB Price

US$ 1.05 - 1.5 / Piece

10 Pieces(Min. Order)

Port any port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Place of Origin	Shandong, China		Model Number	51202
Number of Row	Single Row		Seals Type	Open
Precision Rating	P0 P6 P5 P4 P2		Bore Size	14.99, 15

Product Description

Washing Machine Ball Bearings Thrust ball bearing 51202 51203 51204

Related bearings of thrust ball bearing

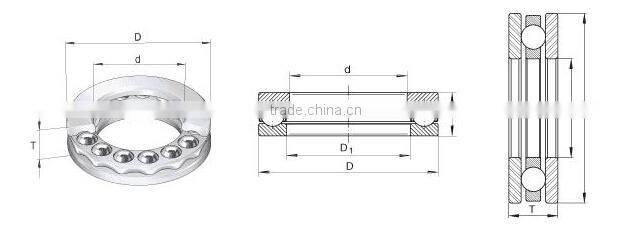

Code	d	D	T	Cr	Cor	Grease	Oil	Weight
Code	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
52202	15	32	22	16.5	24.8	4800	6700	0.082
52202X	15	32	22	-	-	-	-	-
52203	17	35	13.2	—	—	—	—	0.0506
52204	20	40	26	22.3	37.7	3900	6000	0.144
52205	25	47	28	27.7	50.4	3600	5500	0.23
52206	30	52	29	28.1	54.3	3400	5200	0.27
52207	35	62	34	40.7	83.8	2900	4500	0.42
52208	40	68	36	46.9	98.3	2700	4200	0.54
52209	45	73	37	47.7	105	2600	4000	0.64
52210	50	78	39	48.5	111	2300	3600	0.71
52211	55	90	45	69.4	159	2100	3200	1.12
52212	60	95	46	73.6	179	1900	3000	1.15
52213	65	100	47	74.8	189	1900	2900	1.36
52214	70	105	47	73.6	189	1800	2800	1.52
52215	75	110	47	77.4	209	1800	2700	1.6
52216	80	115	48	78.5	218	1700	2600	1.73
52217	85	125	55	92.3	251	1500	2300	2.22
52218	90	135	62	117	326	1400	2100	3.14
52220	100	150	67	147	410	1200	1900	4.2
52220M	100	150	67	-	-	-	-	4.46
52222	110	160	67	148	431	1200	1800	-
52224	120	170	68	154	472	1100	1700	5.3
52224M	120	170	68	-	-	-	-	5.28
52226	130	190	80	203	622	970	1500	-
52228	140	220	81	215	669	940	1450	8.8
52228M	140	200	81	-	-	-	-	8.79
52230	150	215	89	244	768	840	1300	-
52230M	150	215	89	—	—	—	—	10.4
52232	160	225	90	247	803	810	1250	11.97
52232M	160	225	90	—	—	—	—	11.97
52234	170	240	97	269	874	750	1150	-
52234M	170	240	97	-	-	-	-	0
52236	180	250	98	294	986	710	1100	15.9
52236M	180	250	98	—	—	—	—	15.9
52238	190	270	109	298	1010	650	1000	24.3
52238M	190	270	109	—	—	—	—	24.3
52238J	190	270	109	-	-	-	-	21
52240	200	280	109	314	1110	620	950	-
52240M	100	280	109	—	—	—	—	22.7
52244	220	300	110	342	1310	580	900	-
52244UM	220	300	75	—	—	—	—	13.7

Application

Road Planes
Steel rolling / heavy industry / Transmissions
Agricultural, pumps, mining
General heavy engineering applications
Marine, shipping and paper

Types of Thrust ball bearing

Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
