UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204

UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-1
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-2
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-3
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-4
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-5
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 thumbnail-6
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-1
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-2
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-3
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-4
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-5
UC204-12 3/4'' Insert Bearing UC204-12 Mounted Bearing UC204 photo-6
US$ 1.5 - 1.5 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Place of Origin:
China
Model Number:
UC204-12 3/4''
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Place of Origin China
Model Number UC204-12 3/4''
Bore Size 0.75,

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204



Product Description

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

UC204-12

UC204-12 Insert Bearing has a set screw locking and is held in position on the shaft by two set screws which are directly on the extended end of the inner ring.
UC 204-12 Insert Bearing is self-aligning for standard load capacity. This specific arrangement is suitable for application as where the direction of rotation is alternative.

The UC200 Series Insert Bearing are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.



UC204-12 Insert Bearing is self-aligning for standard load capacity

The bearing insert with set screw locking is held in position on the shaft by two set screws directly on the extended end of inner ring. This arrangement is suitable for application where direction of rotation is alternative or constant.



Descriptions of insert bearing

These bearings have a wider inner ring and a spherical outer and are used with the Self Lube housing. The bearings are sealed and prelubricated although they have relubrication points.They are fixed to the shaft using grub screws.

UC Insert Bearings are mainly used as replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, Take up units , etc.... Saving money for replacing the insert bearing instead of replacing the whole unit and are also widely used among agriculture, construction, textile, conveyor, foods, printing industries.



Common Applications:



  • Bearing units
  • Bakery machinery
  • Agricultural equipment
  • Textile machinery
  • Printing machinery
  • Conveying
  • Production lines
  • Fabrication

 Basic Information of  UC204-12 3/4'' Insert bearing

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

Inner Diameter (ID) Outer Diameter (OD) Width
3/4 in 47 mm 31 mm

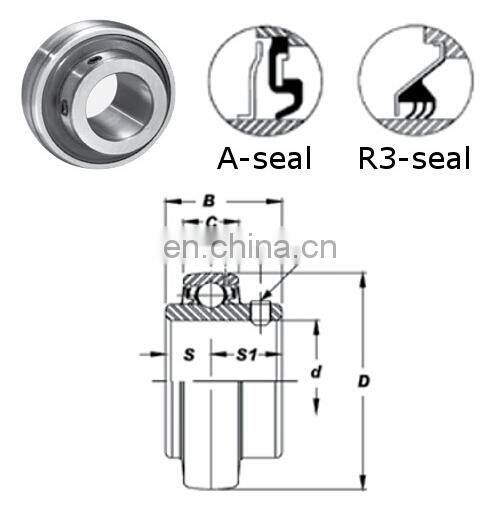

Dimensions

d D B C S S1 G h ds Dynamic Load Rating (Cr) Static Load Rating (Cor)
3/4 in 47 mm 31 mm 16 mm 12.7 mm 18.3 mm 4.7 mm 4.4 mm 1/4-28 mm 12800 N 6650 N



UC series insert bearings model chart



ITEM NO. ITEM NO. ITEM NO. ITEM NO. ITEM NO. ITEM NO.
UC204 UCP201 UCP214 UCF202-10 UCFL204 UCT204
UC204-12 UCP201-08 UCP215 UCF203 UCFL204-12 UCT205
UC205 UCP202 UCP215-48 UCF204 UCFL205 UCT205-16
UC205-16 UCP202-10 UCP216 UCF204-12 UCFL205-14 UCT206
UC206 UCP203 UCP217 UCF205 UCFL205-16 UCT206-19
UC206-18 UCP204 UCP218 UCF205-16 UCFL206 UCT207
UC207 UCP204-12 UCP218-56 UCF206 UCFL206-18 UCT207-20
UC207-20 UCP205   UCF206-18 UCFL206-19 UCT208
UC208 UCP205-14   UCF206-19 UCFL207 UCT208-24
UC208-24 UCP205-16   UCF207 UCFL207-20 UCT209
UC209 UCP206   UCF207-20 UCFL208 UCT210
UC209-28 UCP206-18   UCF207-22 UCFL208-24 UCT211
UC210 UCP206-19   UCF207-23 UCFL209 UCT211-32
UC210-32 UCP207   UCF208 UCFL209-28 UCT212
UC211 UCP207-20   UCF208-24 UCFL210 UCT213
UC211-32 UCP207-21   UCF209 UCFL211-32 UCT213-40
UC212 UCP207-22   UCF209-26 UCFL212 UCT214
UC212-39 UCP207-23   UCF209-28 UCFL213 UCT215
UC213 UCP208   UCF210 UCFL218 UCT216
UC213-40 UCP208-24   UCF210-31 UCFC204 UCT217
UC214 UCP209   UCF210-32 UCFC205 UCT218
UC215 UCP209-26   UCF211 UCFC206 SA204G
UC215-48 UCP209-28   UCF211-32 UCFC207 SA205G
UC216 UCP210   UCF212 UCFC208 SA206G
UC217 UCP210-30   UCF212-39 UCFC209 SA207G
UC218 UCP210-31   UCF213 UCFC210 SA208G
UC220 UCP210-32   UCF213-40 UCFC211 SA209G
  UCP211   UCF214 UCFC212 UCHA204
  UCP211-32   UCF215 UCFC213 UCHA205
  UCP212 W208PPB8 UCF215-48 UCFC214 UCHA206
  UCP212-36 W210PPB6 UCF216 UCFC215 UCHA207
  UCP212-39 W211PPB3 UCF217 UCFC216 UCHA208
  UCP213   UCF218 UCFC217 UCPA204-12
  UCP213-40   UCF218-56 UCFC218 UCPA205-16

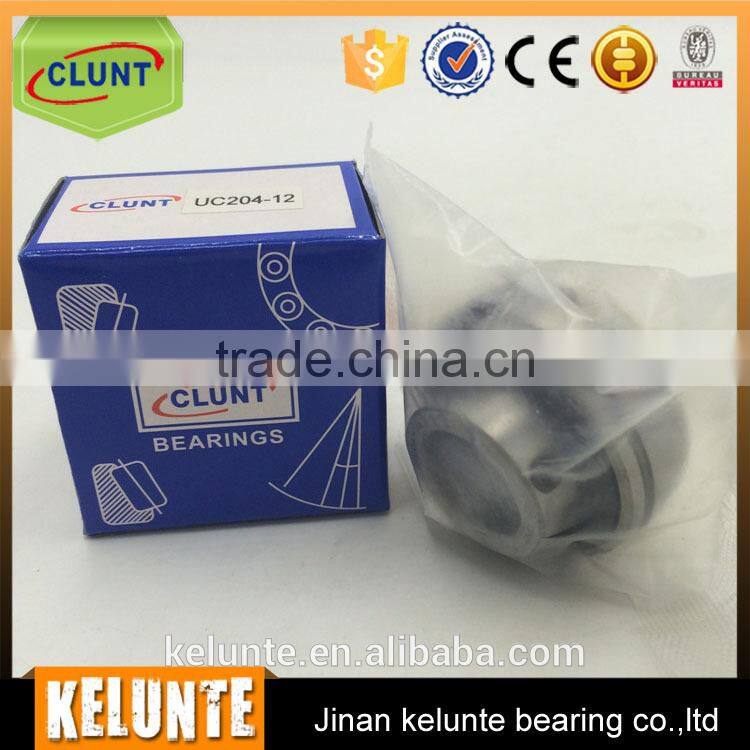

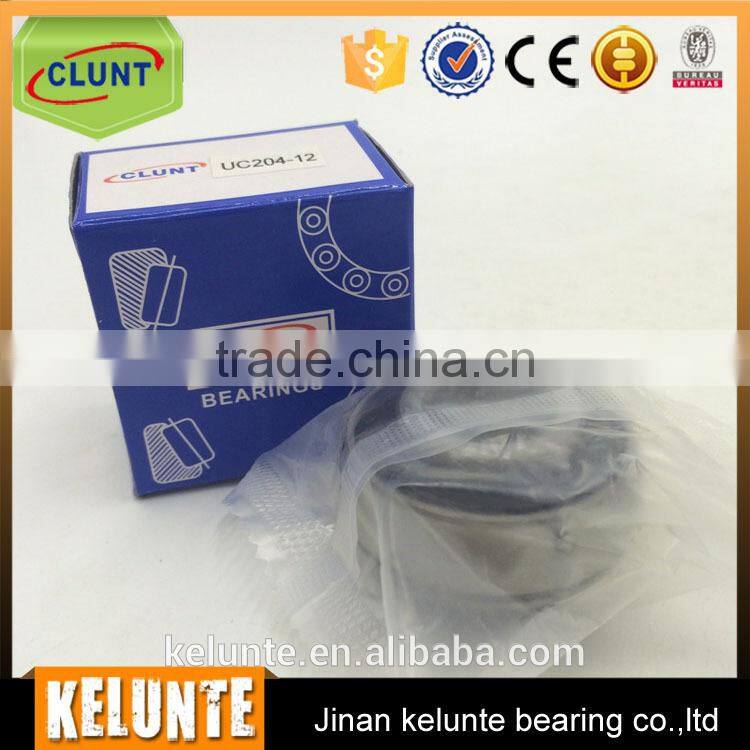

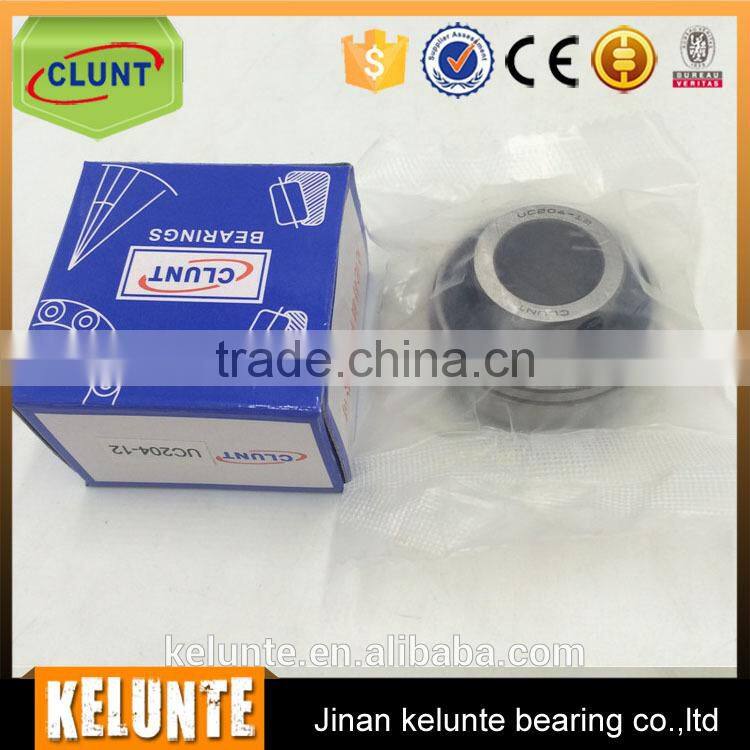

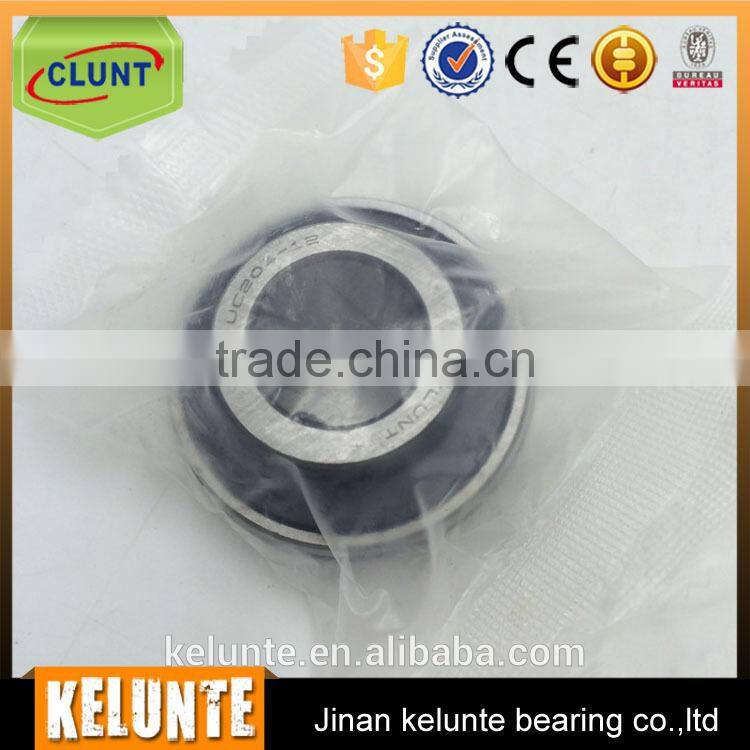

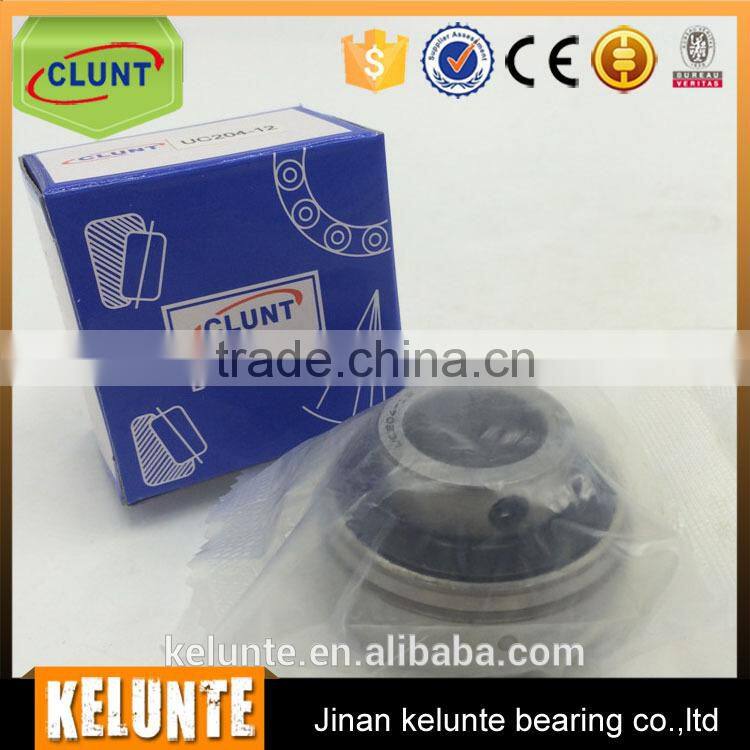

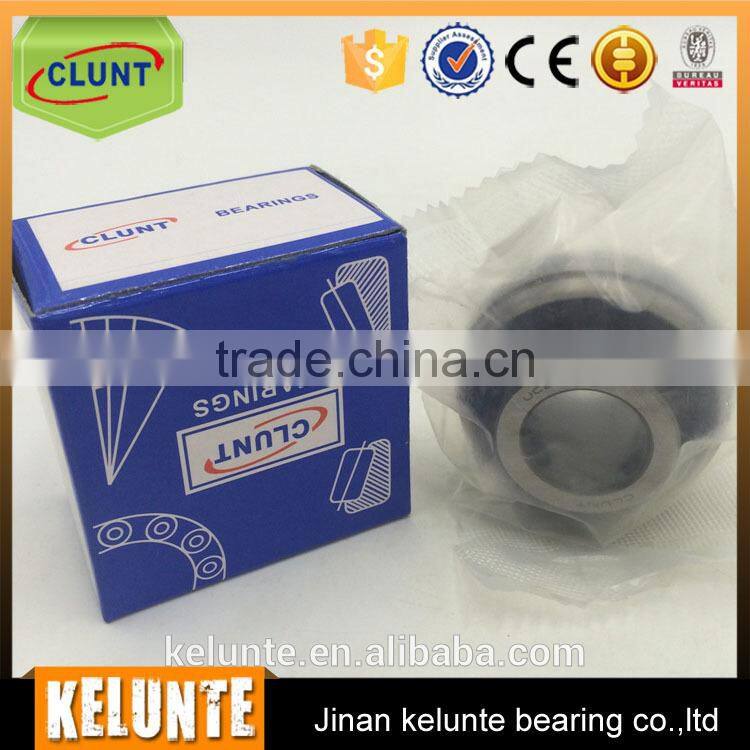

 Real pictures of UC204-12 3/4'' insert bearings

 UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

Company Information

Company Profile

Jinan Kelunte Bearing Co.,Ltd was established in 2010 which is located in Fenghuangshan Electricity Industrial Park,Tian Qiao Distirct,Jinan city.Our company is a modern enterprise which combines bearing marketing and production.Our factory covers an area of 10,000 square metres and our plant covers more than 5000 square meters.Our company initroduced our own brand CLUNT.Equiped with modern prodution equipment and advanced inspection equipment, our products are mainly for the high-end market.Our main products:pillow block bearings,deep groove ball bearings,taper roller bearings,linear bearings,cylinderical roller bearings,precision machine tool spindle bearings,spherical roller bearings,oil seals,ect.Our products are widely used in autombiles,high presion motors,speed reducer,vibrating screen,crusher,railway,etc.

Jinan Kelunte Bearing Co.,Ltd takes specialization as core strategy,promoting internationalizion and diversification.Our company devotes to achive domestic and international advanced level.

Jinan Kelunte Bearing C.,Ltd has been a respected and excellet enterprise in bearing industry.We will keep moving forward.

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

Certifications

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

Packaging & Shipping

UC204-12 3/4'' Insert bearing UC204-12 Mounted bearing UC204

Sample:Usually by EMS, DHL, UPS, TNT, Fedex. Anyway as you like.

Bulk order:Usually by sea.

Delivery:Within 7 days working day for Sample or below 100 pcs ,20-30 days working day for large quantity.The shipment we will arrange as soon as possible. Of course, if it is a custom products,the shipping time will delay.

Our Services
We are 100% manufacture. We can supply you technical support.
We have strict quality control processes. We supply high quality bearings with fair price.
We accept small quantity.
We may supply other globle brand bearings and offer buyer labels.
We can manufacture any bearings according to customer's drawings
