Home > Products > Taper Roller Bearing > JLM710949/JLM710910 inch taper roller bearings 4T-JLM710949/JLM710910

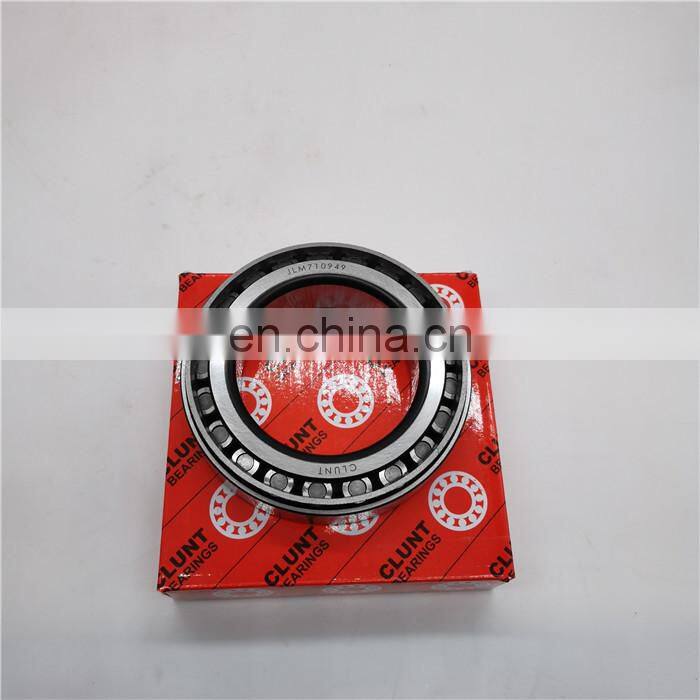

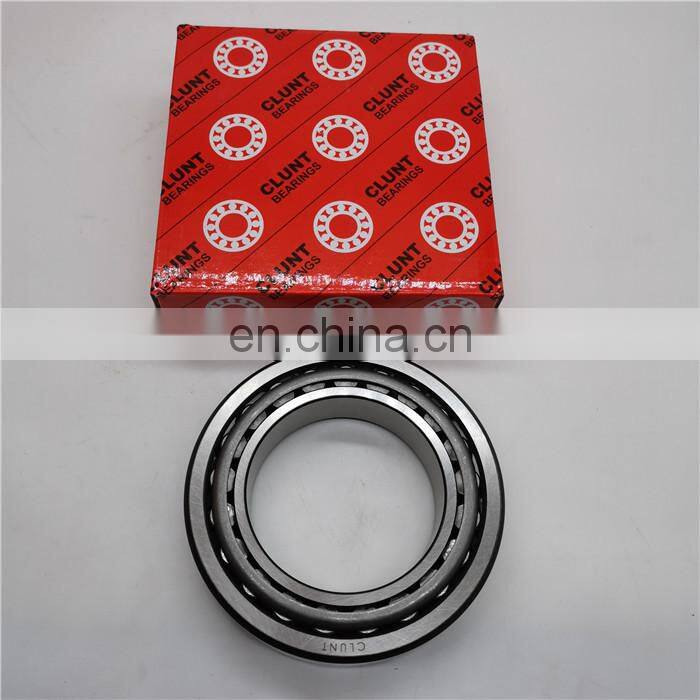

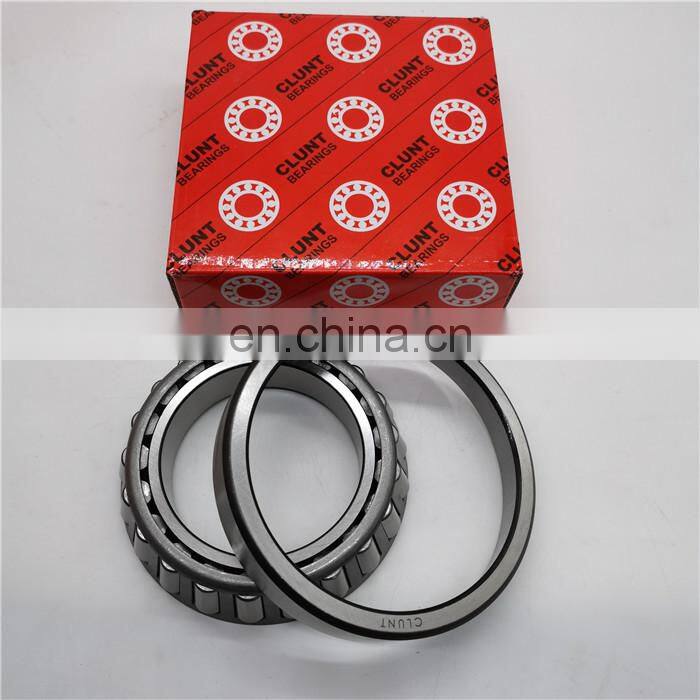

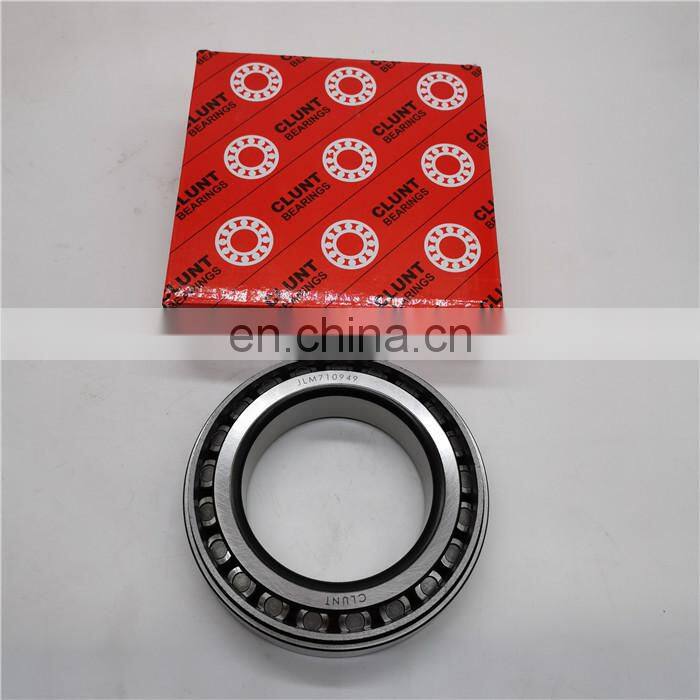

JLM710949/JLM710910 inch taper roller bearings 4T-JLM710949/JLM710910
- 10000 Set / Sets per Month
- QINGDAO GUANGDONG SHANGHAI
- T/T Credit Card
You May Like
-
Single Row Bearing JM511945/3920 Inch Tapered Roller Bearing
-
JM716649/JM716610 Inch Tapered Roller Bearing 85x130x30mm
-
Good Price LM104949/LM104910 Tapered Roller Bearing 50.8x82x21.976mm
-
LM603049/LM603011 Tapered Roller Bearing 1.7812x3.0625x0.7813 inch bearing
-
NP999685/NP939823 Tapered Roller Bearing 44.45x88.9x17/25mm
-
Competitive price UCP208 pillow block bearing
Product Details
| Brand Name | CLUNT | Place of Origin | Shandong, China | |
| Model Number | JLM710949/JLM710910 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P0 P6 P5 P4 P2 |
Product Description
JLM710949/JLM710910 inch taper roller bearings 4T-JLM710949/JLM710910
Inner Cone Code -JLM710949
Outer Cup Code -JLM710910
Seals/Shields: None
Quality: Premium
Alternative Product Codes:JLM710949/JLM710910, JLM710949/10
Dimensions (Metric): 65x105x24.000 mm
(Inch): 2.5590×4.1338×0.9448
Inside Diameter (d): 65mm /2.5590″
Outside Diameter (D): 105mm /4.1338″
Width (T): 24.000mm / 0.9448″
Cup Width (C): 18.500mm / 0.7283″
Width (B): 23.000mm / 0.9055″
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding application
Your inquiry related to our product & price will be replied within 24 hours.
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- Working time: 8:30am ~12:00pm, Monday to Sunday(UTC+8).
- OEM projects are highly welcomed. We have professional team here to help.
Features of Taper Roller Bearing:
High radial and axial loads in one direction
Medium speeds
Small clearance range when bearing pairs are adjusted during mounting
Higher permissible speeds by improved raceway surface roughness
Metric and imperial dimensions
Outer diameters up to 2500 mm
cage optimised for large taper roller bearings installed in planetary carriers
Hardened high carbon chromium steel
| Bearing | Principal Dimensions (mm) | Basic Load Ratings (N) | Limiting Speeds (r/min) | Mass | ||||||
| No. | d | D | T | B | C | Dynamic (Cr) | Static (C0r) | Grease | Oil | kg |
| 32004 | 20 | 42 | 15 | 15 | 12 | 19360 | 21600 | 6800 | 9600 | 0.097 |
| 320/22 | 22 | 44 | 15 | 15 | 11.5 | 20080 | 23200 | 6400 | 8800 | 0.1 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 21600 | 26000 | 6400 | 8800 | 0.11 |
| 320/28 | 28 | 52 | 16 | 16 | 12 | 25520 | 30400 | 5600 | 7600 | 0.15 |
| 32006 | 30 | 55 | 17 | 17 | 13 | 28640 | 35200 | 5360 | 7200 | 0.17 |
| 320/32 | 32 | 58 | 17 | 17 | 13 | 29520 | 37200 | 5040 | 6800 | 0.19 |
| 32007 | 35 | 62 | 18 | 18 | 14 | 34320 | 43200 | 4800 | 6400 | 0.22 |
| 32008 | 40 | 68 | 19 | 19 | 14.5 | 42240 | 56800 | 4240 | 5600 | 0.27 |
| 32009 | 45 | 75 | 20 | 20 | 15.5 | 46640 | 64000 | 3840 | 5040 | 0.34 |
| 32010 | 50 | 80 | 20 | 20 | 15.5 | 48400 | 70400 | 3600 | 4800 | 0.37 |
| 32011 | 55 | 90 | 23 | 23 | 17.5 | 64720 | 92800 | 3200 | 4240 | 0.55 |
| 32012 | 60 | 95 | 23 | 23 | 17.5 | 66000 | 97600 | 3040 | 4000 | 0.59 |
| 32013 | 65 | 100 | 23 | 23 | 17.5 | 67360 | 101600 | 2720 | 3600 | 0.63 |
| 32014 | 70 | 110 | 25 | 25 | 19 | 80800 | 122400 | 2560 | 3440 | 0.84 |
| 32015 | 75 | 115 | 25 | 25 | 19 | 84800 | 130400 | 2400 | 3200 | 0.9 |
| 32016 | 80 | 125 | 29 | 29 | 22 | 110400 | 172800 | 2080 | 2880 | 1.3 |
| 32017 | 85 | 130 | 29 | 29 | 22 | 112000 | 179200 | 1920 | 2720 | 1.35 |
| 32018 | 90 | 140 | 32 | 32 | 24 | 134400 | 216000 | 1760 | 2560 | 1.75 |
| 32019 | 95 | 145 | 32 | 32 | 24 | 135600 | 220400 | 1680 | 2480 | 1.8 |
| 32020 | 100 | 150 | 32 | 32 | 24 | 137600 | 224000 | 1600 | 2400 | 1.9 |
| 32021 | 105 | 160 | 35 | 35 | 26 | 160800 | 268000 | 1520 | 2240 | 2.4 |
| 32022 | 110 | 170 | 38 | 38 | 29 | 186400 | 312000 | 1440 | 2080 | 3.05 |
| 32024 | 120 | 180 | 38 | 38 | 29 | 193600 | 332000 | 1360 | 1920 | 3.25 |
| 32026 | 130 | 200 | 45 | 45 | 34 | 251200 | 432000 | 1280 | 1760 | 4.95 |
| 32028 | 140 | 210 | 45 | 45 | 34 | 264000 | 468000 | 1260 | 1700 | 5.25 |
| 32030 | 150 | 225 | 48 | 48 | 36 | 295200 | 524000 | 1200 | 1600 | 6.35 |
| 32032 | 160 | 240 | 51 | 51 | 38 | 343200 | 624000 | 1040 | 1440 | 7.75 |
