Spherical insert bearing with pedestal block bearing UC209

FOB Price

USD $6 - $49 / Piece

100 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CLUNT	Place of Origin:	Shandong, China	Model Number:	UC209
Bore Size:	39, 45

Product Description

Spherical insert bearing with pedestal block bearing UC209

Product Description

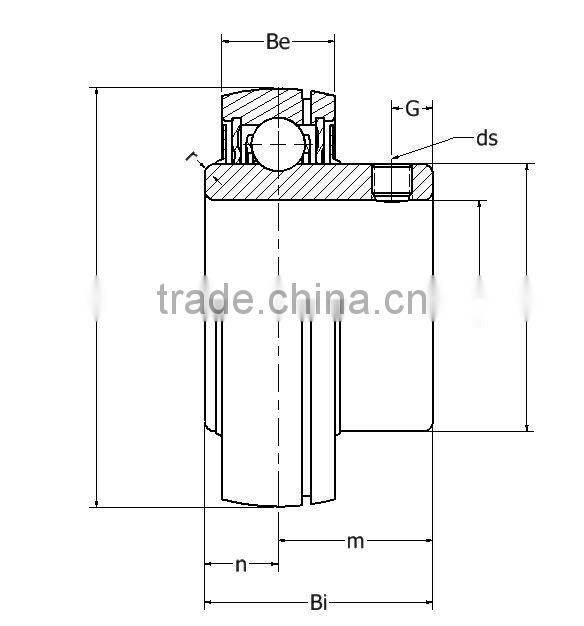

Drawings of spherical insert bearing UC209

Specifications of spherical insert bearing UC209

Specifications

Product Type		Insert Bearings

Series		UC200

Bore (d)		45 mm

D		3.3465 inches 85 mm

Bi		1.9370 inches 49.2 mm

Be		0.866 inches 22 mm

r		0.079 inches 2 mm

n		0.7480 inches 19 mm

m		1.189 inches 30.2 mm

G		0.315 inches 8 mm

w		2.248 inches 57.10 mm

Set Screw (ds)		M8x1

Load Rating (Dynamic)		5476

Load Rating (Static)		3981

Weight		1.5 lbs

Lubrication

Lubrication
There is no known universal grease for all bearing applications; it is therefore required to have a complete understanding of the operational environment. Because conditions of service are often difficult to properly analyze, we recommend you consult our engineering department for recommendations. There are many fine selections available, here are only a few:

Lubrication	Temperature Range (F)	Base Oil	Thickener	MIL-Spec
Aeroshell Fluid 12	-65 to +250	Synthetic	-	MIL-L-6085A
Alvania #2	-30 to +230	Petroleum	Lithium Hydroxy	MIL-G-18709A
Andok C	-20 to +250	Petroleum	Sodium
Beacon 325	-60 to +250	Synthetic	Lithium Hydroxy	MIL-G-3278A
Chevron SRI #2	-20 to +350	Petroleum	Polyurea	MIL-G-3545C
Krytox 240 AC	-30 to +550	Fluorinated	Fluorotelomer	MIL-G-27617A
Kyudo Yushi SRL	-40 to +300	Synthetic	Lithium Hydroxy
Mobil Grease 28	-80 to +350	Synthetic	Synthetic	MIL-G-8132

Retainers (Cages)

Cages are used to perform an important function, the separation of the rolling elements within the bearing races. It is important for a smooth and efficient operation that the rolling element be guided in and out of the load zone. Retainers come in several configurations and material types that include:

Pressed Steel Finger
Pressed Steel Riveted
Molded Nylon (6/6)

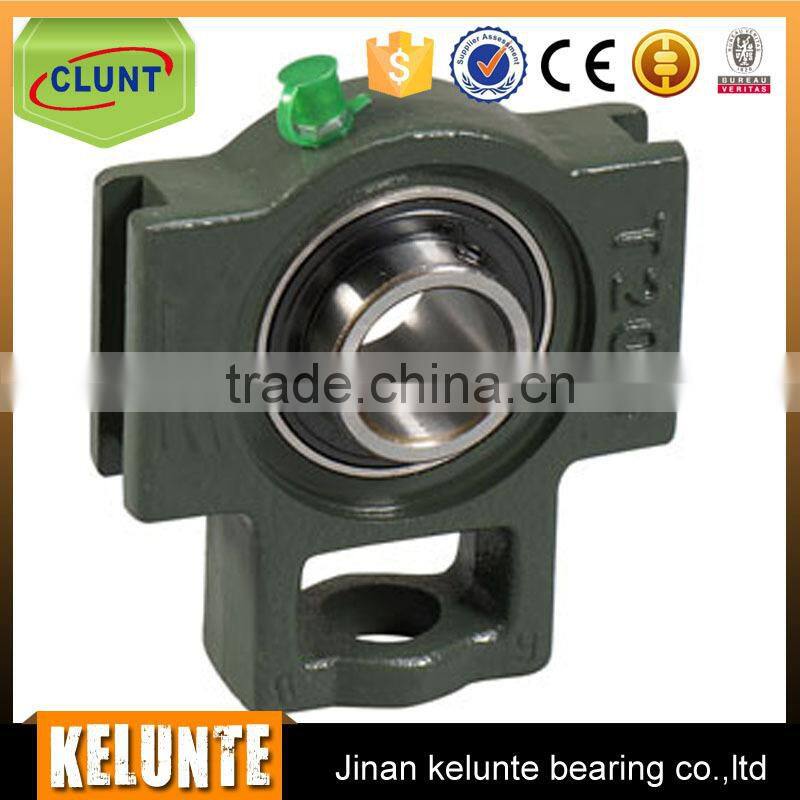

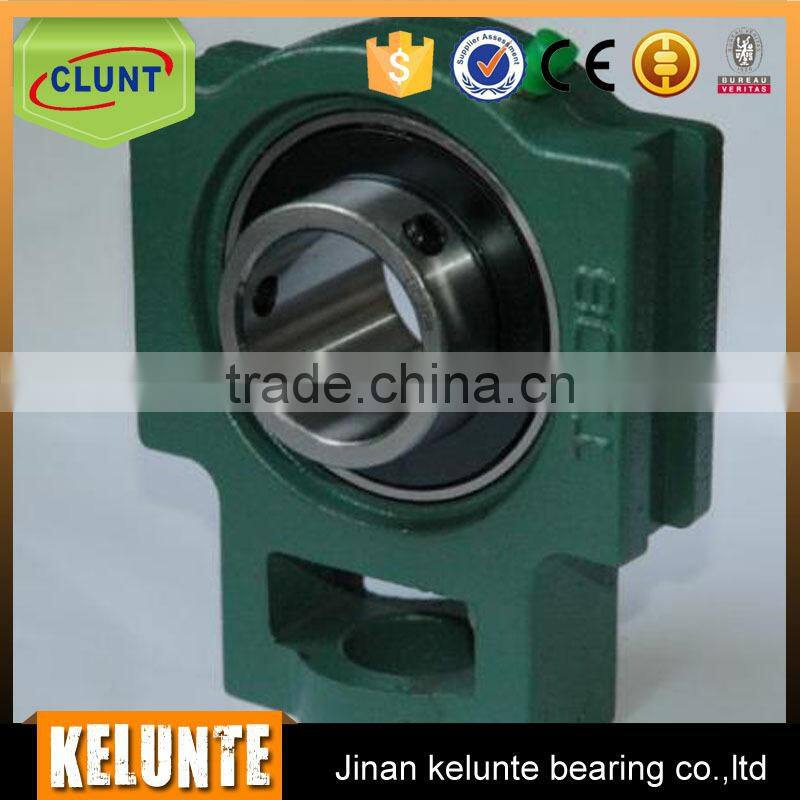

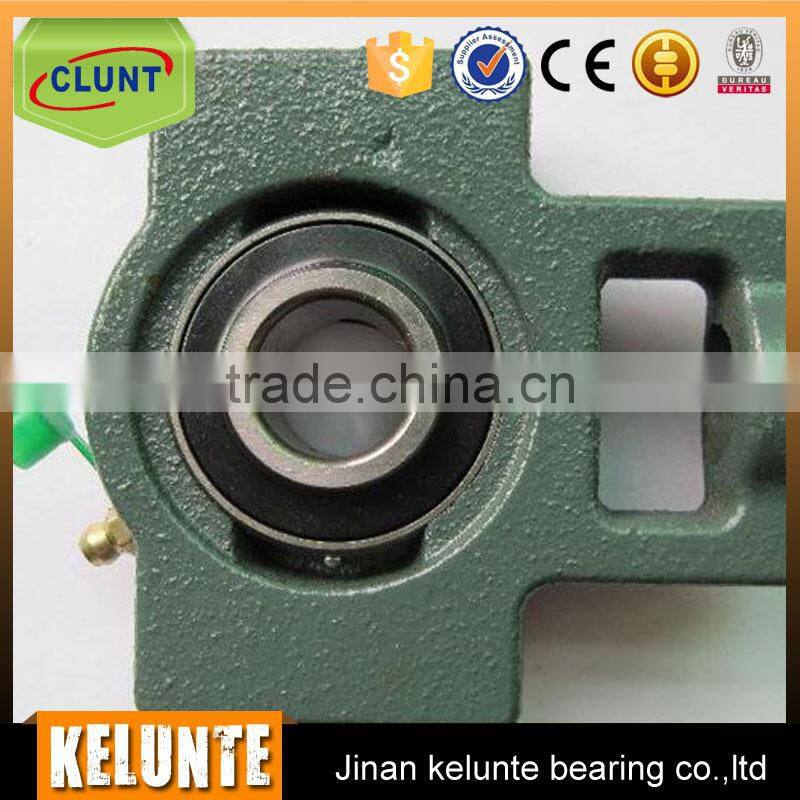

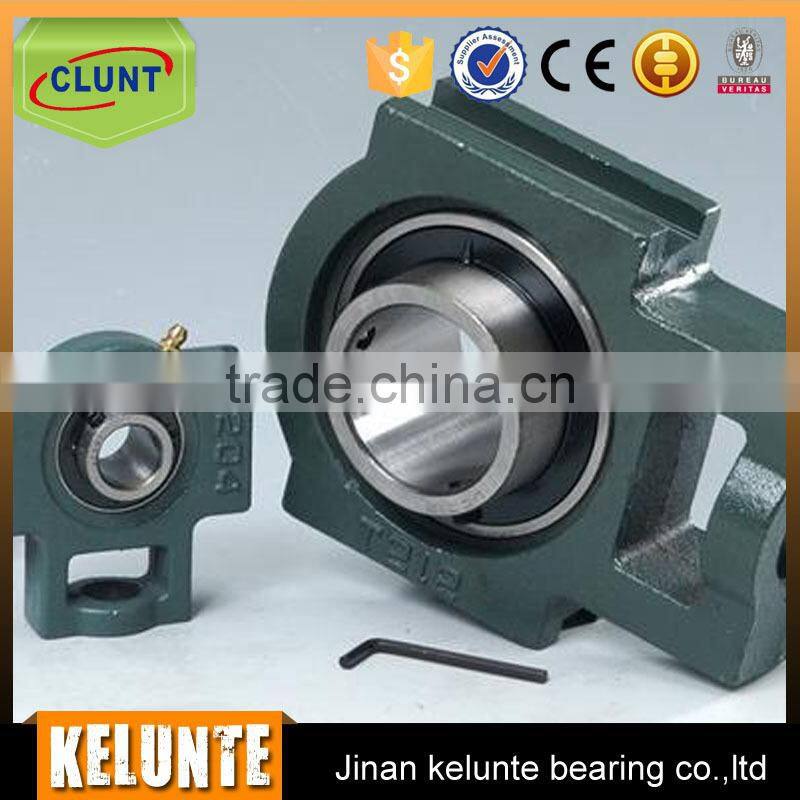

Pictures of product
