Home > Products > Taper Roller Bearing > HM518445/HM518410 Tapered Roller Bearing 3.5x6.0x1.5625 Inch Bearing

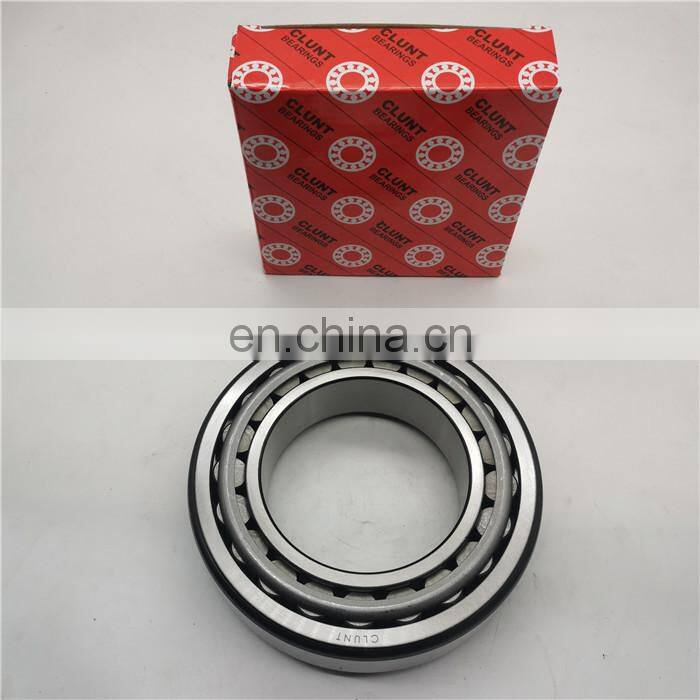

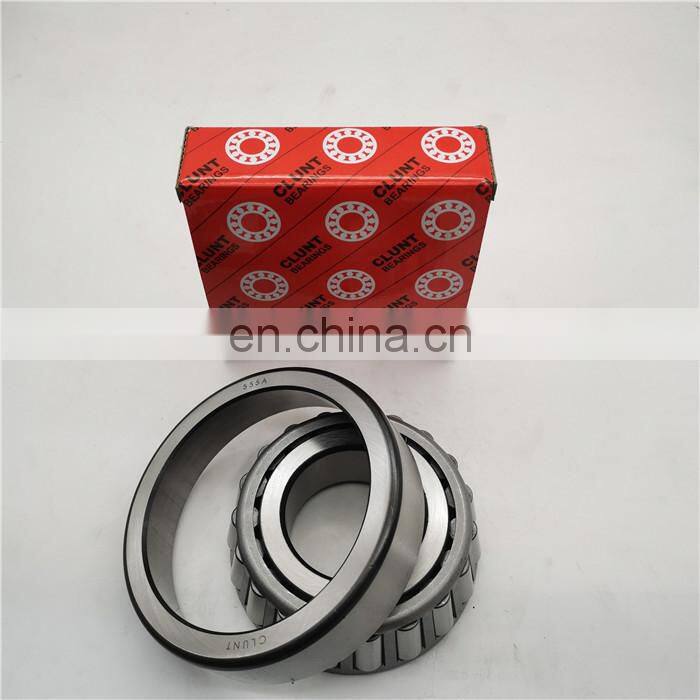

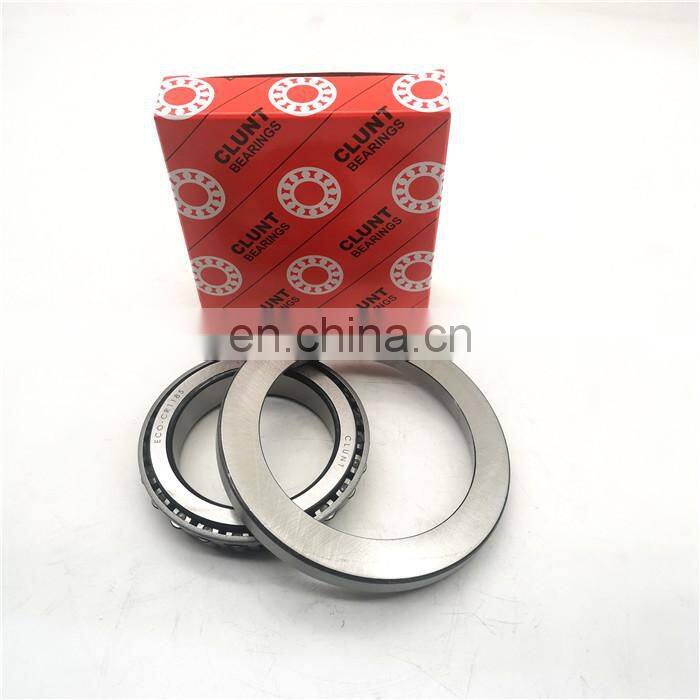

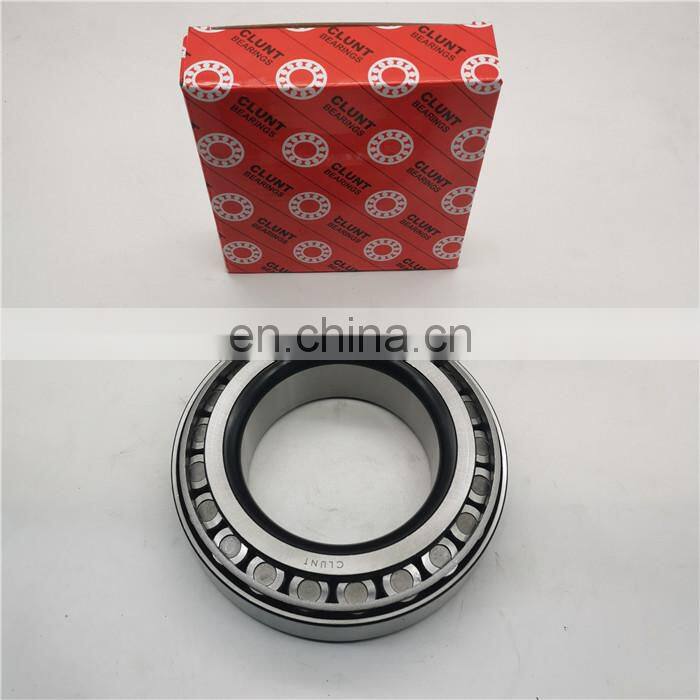

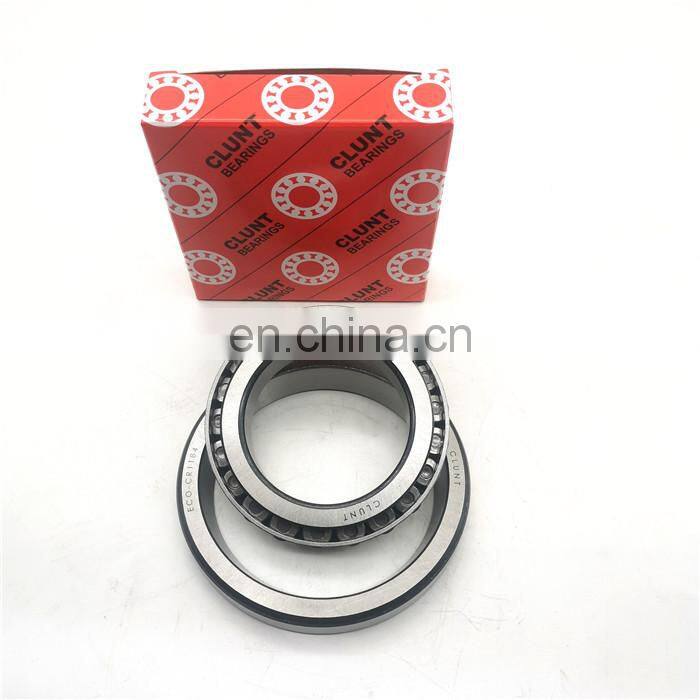

HM518445/HM518410 Tapered Roller Bearing 3.5x6.0x1.5625 Inch Bearing
- QINGDAO GUANGDONG SHANGHAI
- T/T Credit Card
You May Like
-
HM813843/HM813810 Inch Series Tapered Roller Bearing HM813843/HM813810
-
JLM710949/JLM710910 Inch Taper Roller Bearings 4T-JLM710949/JLM710910
-
Single Row Bearing JM511945/3920 Inch Tapered Roller Bearing
-
JM716649/JM716610 Inch Tapered Roller Bearing 85x130x30mm
-
Good Price LM104949/LM104910 Tapered Roller Bearing 50.8x82x21.976mm
-
LM603049/LM603011 Tapered Roller Bearing 1.7812x3.0625x0.7813 Inch Bearing
Product Details
| Brand Name | CLUNT | Place of Origin | Shandong, China | |
| Model Number | HM518445/HM518410 | Number of Row | Single Row | |
| Seals Type | open | Precision Rating | P0 P6 P5 P4 P2 |
Product Description
HM518445/HM518410 Tapered Roller Bearing 3.5x6.0x1.5625 Inch Bearing
Specifications
Series: HM518400
Cone part number: HM518445
Cup part number: HM518410
Bearing weight: 2.8kg
Dimensions
Inside diameter d: 88.900mm - 3.5000 inch
Outside diameter D: 152.400mm - 6.000 inch
Width T: 39.688mm - 1.5625 inch
Cone width B: 39.688mm - 1.5625 inch
Cup width C: 30.163mm - 1.1875 inch
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding application
Your inquiry related to our product & price will be replied within 24 hours.
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- Working time: 8:30am ~12:00pm, Monday to Sunday(UTC+8).
- OEM projects are highly welcomed. We have professional team here to help.
Features of Taper Roller Bearing:
High radial and axial loads in one direction
Medium speeds
Small clearance range when bearing pairs are adjusted during mounting
Higher permissible speeds by improved raceway surface roughness
Metric and imperial dimensions
Outer diameters up to 2500 mm
cage optimised for large taper roller bearings installed in planetary carriers
Hardened high carbon chromium steel
| Bearing | Principal Dimensions (mm) | Basic Load Ratings (N) | Limiting Speeds (r/min) | Mass | ||||||
| No. | d | D | T | B | C | Dynamic (Cr) | Static (C0r) | Grease | Oil | kg |
| 32004 | 20 | 42 | 15 | 15 | 12 | 19360 | 21600 | 6800 | 9600 | 0.097 |
| 320/22 | 22 | 44 | 15 | 15 | 11.5 | 20080 | 23200 | 6400 | 8800 | 0.1 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 21600 | 26000 | 6400 | 8800 | 0.11 |
| 320/28 | 28 | 52 | 16 | 16 | 12 | 25520 | 30400 | 5600 | 7600 | 0.15 |
| 32006 | 30 | 55 | 17 | 17 | 13 | 28640 | 35200 | 5360 | 7200 | 0.17 |
| 320/32 | 32 | 58 | 17 | 17 | 13 | 29520 | 37200 | 5040 | 6800 | 0.19 |
| 32007 | 35 | 62 | 18 | 18 | 14 | 34320 | 43200 | 4800 | 6400 | 0.22 |
| 32008 | 40 | 68 | 19 | 19 | 14.5 | 42240 | 56800 | 4240 | 5600 | 0.27 |
| 32009 | 45 | 75 | 20 | 20 | 15.5 | 46640 | 64000 | 3840 | 5040 | 0.34 |
| 32010 | 50 | 80 | 20 | 20 | 15.5 | 48400 | 70400 | 3600 | 4800 | 0.37 |
| 32011 | 55 | 90 | 23 | 23 | 17.5 | 64720 | 92800 | 3200 | 4240 | 0.55 |
| 32012 | 60 | 95 | 23 | 23 | 17.5 | 66000 | 97600 | 3040 | 4000 | 0.59 |
| 32013 | 65 | 100 | 23 | 23 | 17.5 | 67360 | 101600 | 2720 | 3600 | 0.63 |
| 32014 | 70 | 110 | 25 | 25 | 19 | 80800 | 122400 | 2560 | 3440 | 0.84 |
| 32015 | 75 | 115 | 25 | 25 | 19 | 84800 | 130400 | 2400 | 3200 | 0.9 |
| 32016 | 80 | 125 | 29 | 29 | 22 | 110400 | 172800 | 2080 | 2880 | 1.3 |
| 32017 | 85 | 130 | 29 | 29 | 22 | 112000 | 179200 | 1920 | 2720 | 1.35 |
| 32018 | 90 | 140 | 32 | 32 | 24 | 134400 | 216000 | 1760 | 2560 | 1.75 |
| 32019 | 95 | 145 | 32 | 32 | 24 | 135600 | 220400 | 1680 | 2480 | 1.8 |
| 32020 | 100 | 150 | 32 | 32 | 24 | 137600 | 224000 | 1600 | 2400 | 1.9 |
| 32021 | 105 | 160 | 35 | 35 | 26 | 160800 | 268000 | 1520 | 2240 | 2.4 |
| 32022 | 110 | 170 | 38 | 38 | 29 | 186400 | 312000 | 1440 | 2080 | 3.05 |
| 32024 | 120 | 180 | 38 | 38 | 29 | 193600 | 332000 | 1360 | 1920 | 3.25 |
| 32026 | 130 | 200 | 45 | 45 | 34 | 251200 | 432000 | 1280 | 1760 | 4.95 |
| 32028 | 140 | 210 | 45 | 45 | 34 | 264000 | 468000 | 1260 | 1700 | 5.25 |
| 32030 | 150 | 225 | 48 | 48 | 36 | 295200 | 524000 | 1200 | 1600 | 6.35 |
| 32032 | 160 | 240 | 51 | 51 | 38 | 343200 | 624000 | 1040 | 1440 | 7.75 |
