Excavator Bearing 32022 Taper Roller Bearing 32022

Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-1
Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-2
Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-3
Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-4
Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-5
Excavator Bearing 32022 Taper Roller Bearing 32022 thumbnail-6
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-1
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-2
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-3
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-4
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-5
Excavator Bearing 32022 Taper Roller Bearing 32022 photo-6
US$ 13 - 15 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Place of Origin:
Shandong, China
Model Number:
32022
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Place of Origin Shandong, China
Model Number 32022
Number of Row Single Row
Seals Type open
Precision Rating P0 P6 P5 P4 P2
Outside Diameter 169.99, 170
Bore Size 109.99, 110

excavator bearing 32022 taper roller bearing 32022

Taper roller bearing 32016 mainly bear joint load of radial and axial load which is mainly radial load. Bearing load capacity depends on the angle of the outer ring raceway, bigger angle, carrying capacity greater. Among taper roller bearings,the greatest consumption is single row tapered roller bearings. Compared with angular contact ball bearings, tapper roller bearing have bigger load capacity, but lower limited speed.



excavator bearing 32022 taper roller bearing 32022 details:

Model 110X170X38mm bearing 32022
Bore Dia (d)  mm 110
Outer Dia (D)  mm 170
Width (B)  mm 38
T  mm 38
C  mm 29

Material 52100 Chrome steel, stainless steel and ceramic are available.
Dynamic Load Rating (Cr) (Newtons) 186400
Static Load Rating (Cor) (Newtons) 312000
Max Speed (Grease) (RPM) 1440
Max Speed (Oil) (RPM) 2080
Weight (kg) (kilo grams) 3.05
Note ABEC Grades 1, 3, 5, 7, and 9 are available. Also, the equivalent ISO classes.



Welcome to inquire bearing 32022



  • Your inquiry related to our product & price will be replied within 24 hours.
  • Well-trained & experienced staff are to answer all your inquiries in English of course.
  • Working time: 8:30am ~12:00pm, Monday to Sunday(UTC+8).
  • OEM projects are highly welcomed. We have professional team here to help.

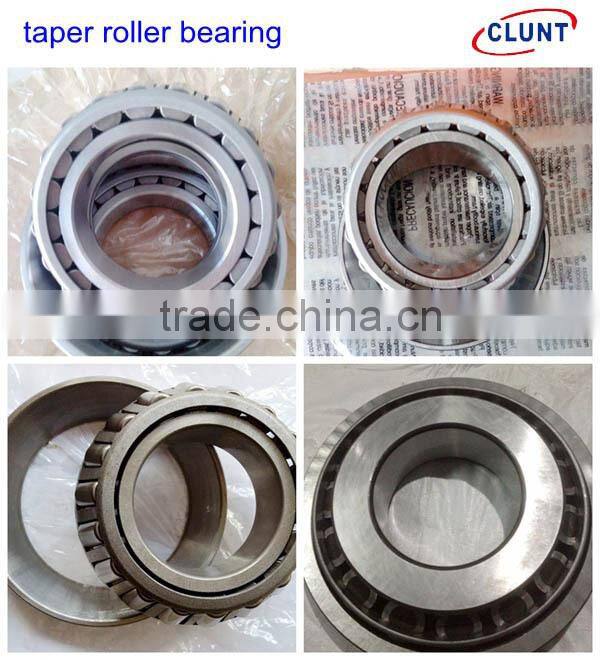

Features of Taper Roller Bearing:



High radial and axial loads in one direction
Medium speeds
Small clearance range when bearing pairs are adjusted during mounting
Higher permissible speeds by improved raceway surface roughness
Metric and imperial dimensions
Outer diameters up to 2500 mm
cage optimised for large taper roller bearings installed in planetary carriers
Hardened high carbon chromium steel



excavator bearing 32022 taper roller bearing 32022 catalog:



Bearing Principal Dimensions (mm) Basic Load Ratings (N) Limiting Speeds (r/min) Mass
No. d D T B C Dynamic (Cr) Static (C0r) Grease Oil kg
32004 20 42 15 15 12 19360 21600 6800 9600 0.097
320/22 22 44 15 15 11.5 20080 23200 6400 8800 0.1
32005 25 47 15 15 11.5 21600 26000 6400 8800 0.11
320/28 28 52 16 16 12 25520 30400 5600 7600 0.15
32006 30 55 17 17 13 28640 35200 5360 7200 0.17
320/32 32 58 17 17 13 29520 37200 5040 6800 0.19
32007 35 62 18 18 14 34320 43200 4800 6400 0.22
32008 40 68 19 19 14.5 42240 56800 4240 5600 0.27
32009 45 75 20 20 15.5 46640 64000 3840 5040 0.34
32010 50 80 20 20 15.5 48400 70400 3600 4800 0.37
32011 55 90 23 23 17.5 64720 92800 3200 4240 0.55
32012 60 95 23 23 17.5 66000 97600 3040 4000 0.59
32013 65 100 23 23 17.5 67360 101600 2720 3600 0.63
32014 70 110 25 25 19 80800 122400 2560 3440 0.84
32015 75 115 25 25 19 84800 130400 2400 3200 0.9
32016 80 125 29 29 22 110400 172800 2080 2880 1.3
32017 85 130 29 29 22 112000 179200 1920 2720 1.35
32018 90 140 32 32 24 134400 216000 1760 2560 1.75
32019 95 145 32 32 24 135600 220400 1680 2480 1.8
32020 100 150 32 32 24 137600 224000 1600 2400 1.9
32021 105 160 35 35 26 160800 268000 1520 2240 2.4
32022 110 170 38 38 29 186400 312000 1440 2080 3.05
32024 120 180 38 38 29 193600 332000 1360 1920 3.25
32026 130 200 45 45 34 251200 432000 1280 1760 4.95
32028 140 210 45 45 34 264000 468000 1260 1700 5.25
32030 150 225 48 48 36 295200 524000 1200 1600 6.35
32032 160 240 51 51 38 343200 624000 1040 1440 7.75







CLUNT certificate

excavator bearing 32022 taper roller bearing 32022excavator bearing 32022 taper roller bearing 32022excavator bearing 32022 taper roller bearing 32022

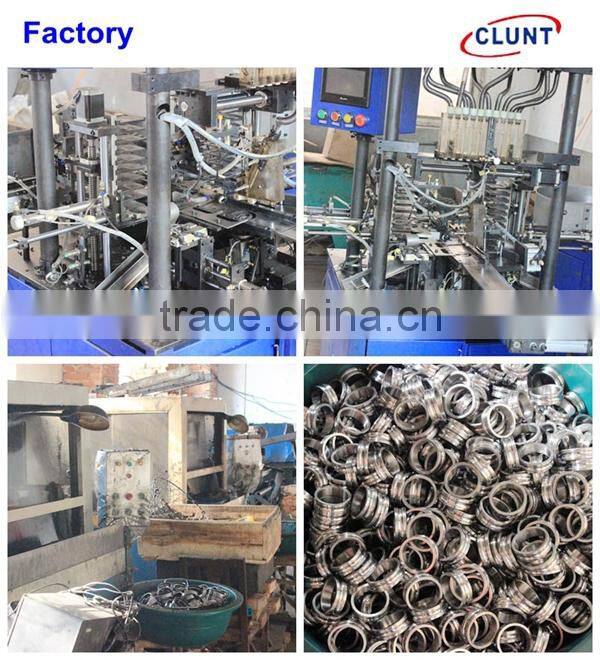

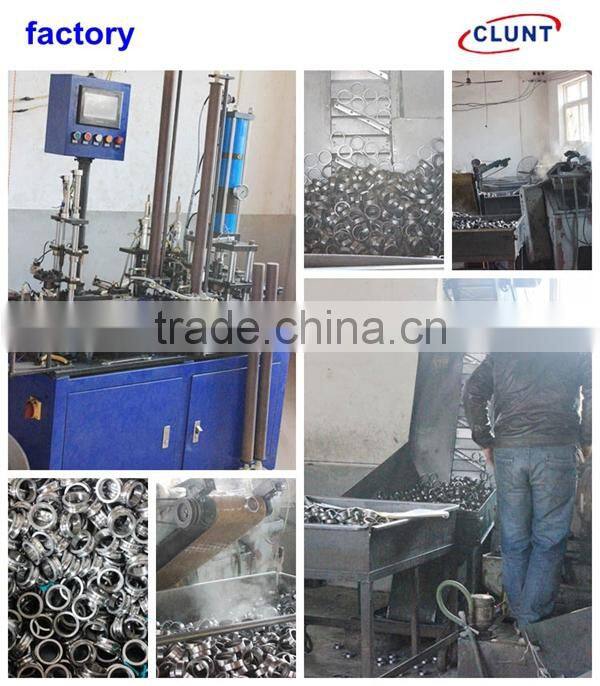

CLUNT factory


Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing .

excavator bearing 32022 taper roller bearing 32022excavator bearing 32022 taper roller bearing 32022



Packaging & Shipping

excavator bearing 32022 taper roller bearing 32022

1. Neutral Package: Plastic Tube + Carton + Pallet

2. Commercial Package: single CLUNT Box + Carton + Pallet

excavator bearing 32022 taper roller bearing 32022

1. Payment:

   1) TT, 30% deposit , 70% before shippment.
   2) L/C at sight. (high bank charge, not suggest , but acceptable )
   3) 100% Western Union in advance. (specially for air shipment or small amount)

2. Delivery:

   1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

   2) Between 45 - 200 KGS, we will send by  air transport. ( Fastest and safest, but expensive )

   3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
