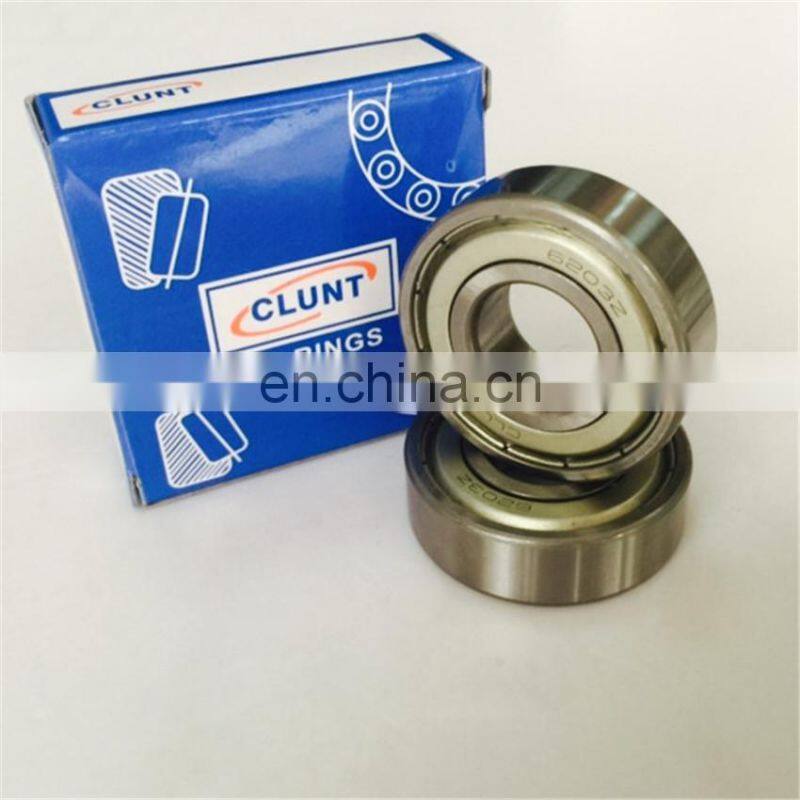

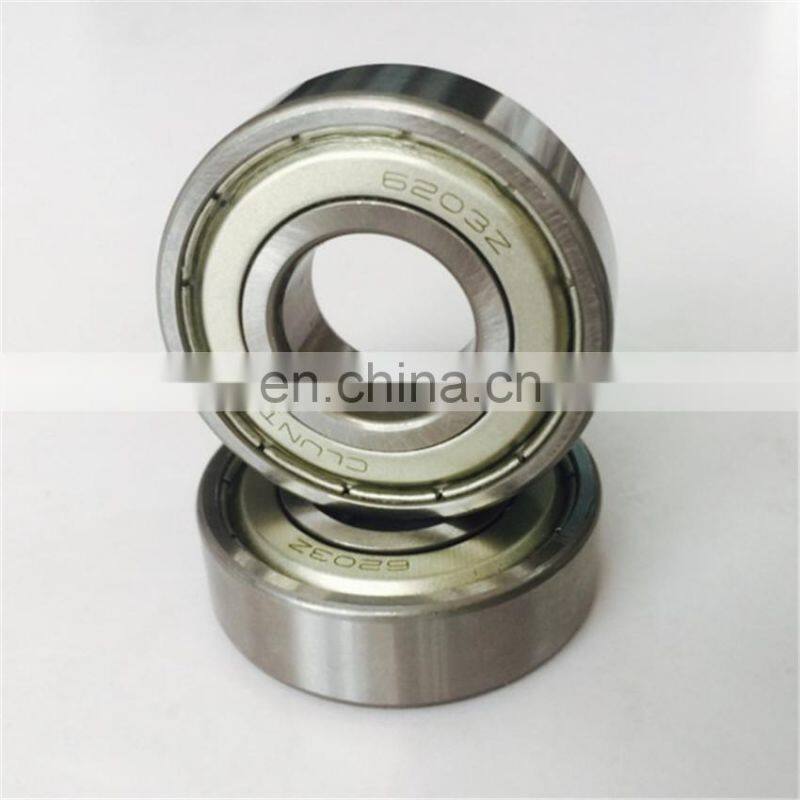

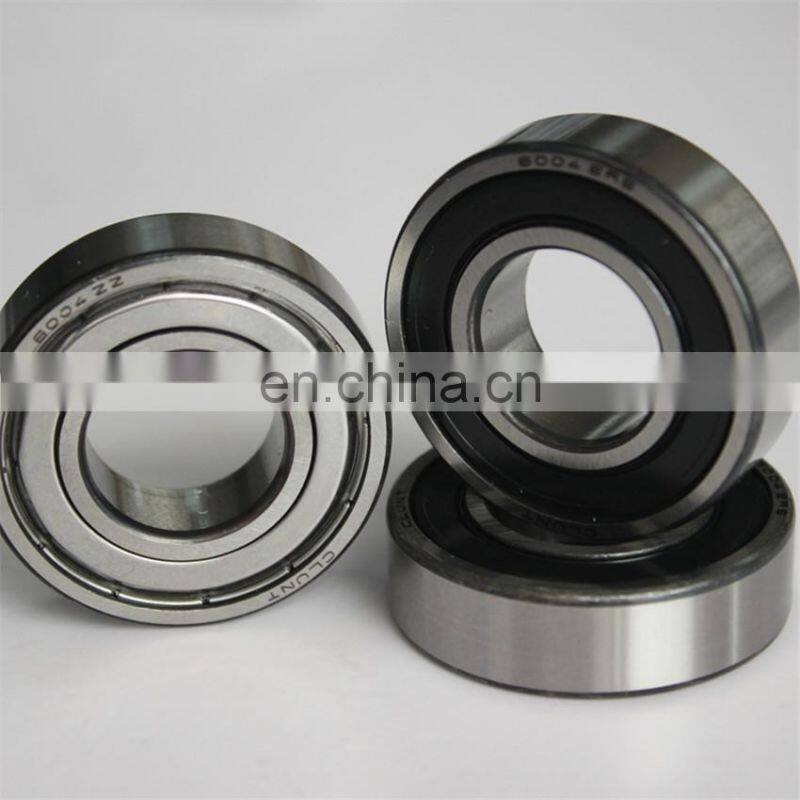

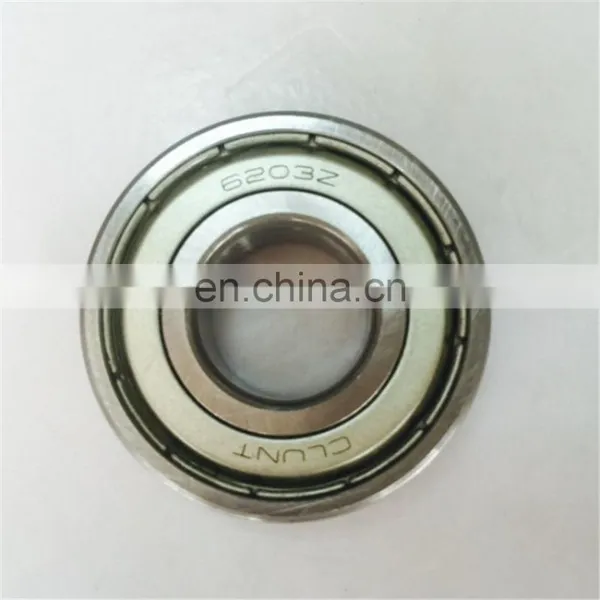

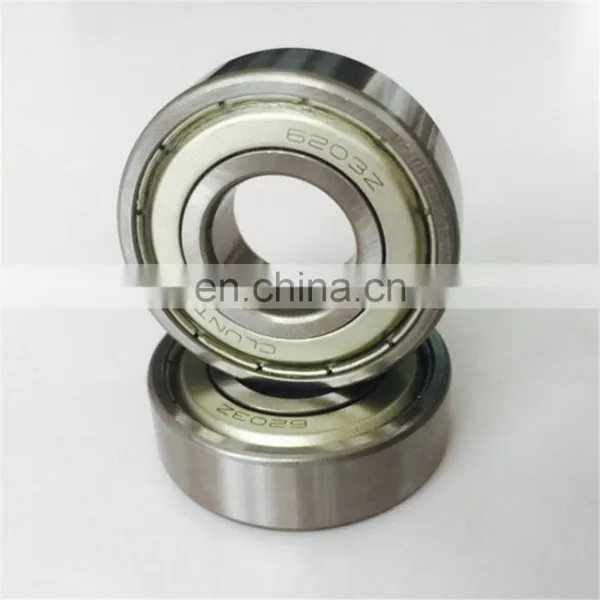

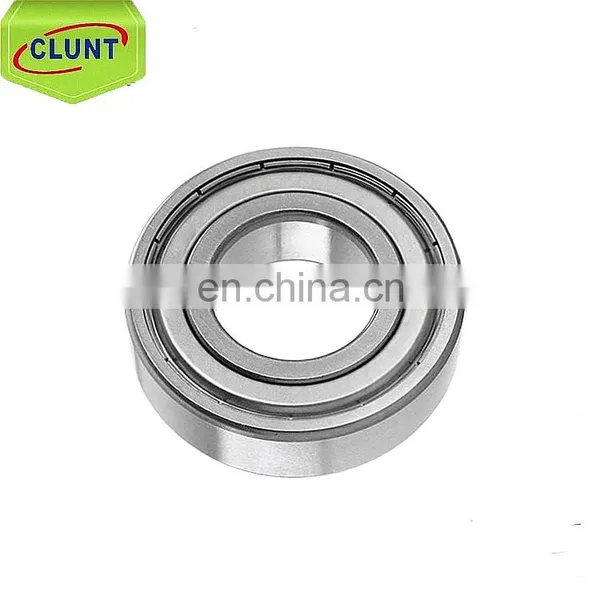

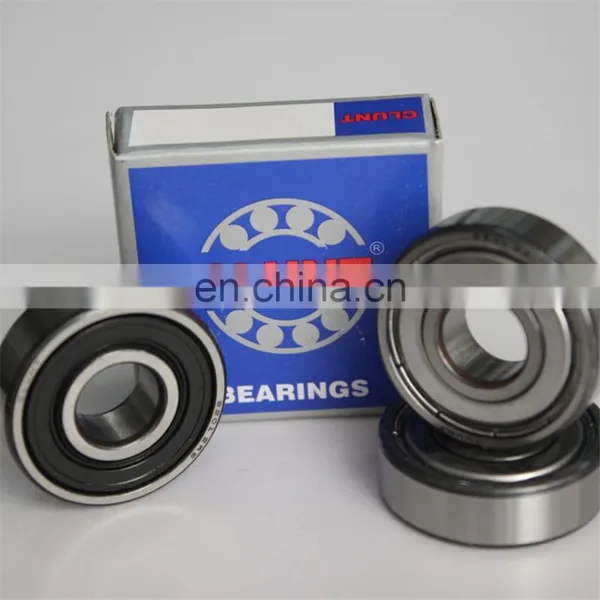

ceiling fan 15X35X11 mm Deep groove ball bearing 6202z 6202zz 202 zz
Brand: | CLUNT |
Model: | 6202 ball bearing |
Sizes: | 15*35*11mm |
Weight: | 0.044KG |
Material : | Gcr15/Gcr11/stainless steel |
FOB Price: | USD $0.1-1,00/ Set |
Minimum Order Quantity: | 10Set/Sets |
Payment Terms: | L/C,T/T ,Western Union |
Delivery Time: | 3 to 45days after order confirmed(depend on the total amount) |
Supply Ability: | 50000sets per month |
Port: | Qingdao Shanghai Ningbo Yiwu Guangzhou China |
Packaging: | 1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll 2.Plastic tube: 10pcs/tube or 5pcs/tube 3.Single box: plastic bag+single box, OEM supply 4.Single wooden box: plastic bag+single wooden box 5.Carton: or as your need. 6.Pallet: Wooden |
Application of inch taper roller bearing | Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery. |
Model number
6200 SERIES BALL BEARINGS | LIGHT | |||||||||||||
NPB | Bore | Outside Diameter | Width | Max. | Balls | Static | Dynamic | ||||||
Frac. | Inch | Tol. | Frac. | Inch | Tol. | Tol. | +.0000 | No. | Diam. | ||||
Open | Seal/Shield | ||||||||||||
10 | .3937 | -.0003 | 30 | 1.1811 | -.0004 | 9 | .3543 | .025 | 8 | 3/16 | 500 | 885 | |
12 | .4724 | -.0003 | 32 | 1.2598 | -.0005 | 10 | .3937 | .025 | 7 | 7/32 | 595 | 1055 | |
15 | .5906 | -.0003 | 35 | 1.3780 | -.0005 | 11 | .4331 | .025 | 8 | 7/32 | 675 | 1180 | |
17 | .6693 | -.0003 | 40 | 1.5748 | -.0005 | 12 | .4724 | .025 | 8 | 1/4 | 890 | 1500 | |
20 | .7874 | -.0004 | 47 | 1.8504 | -.0005 | 14 | .5512 | .040 | 8 | 5/16 | 1390 | 2220 | |
25 | .9843 | -.0004 | 52 | 2.0472 | -.0005 | 15 | .5906 | .040 | 9 | 5/16 | 1565 | 2415 | |
30 | 1.1811 | -.0004 | 62 | 2.4409 | -.0005 | 16 | .6299 | .040 | 9 | 3/8 | 2255 | 3360 | |
35 | 1.3780 | -.0005 | 72 | 2.8346 | -.0005 | 17 | .6693 | .040 | 9 | 7/16 | 3070 | 4430 | |
40 | 1.5748 | -.0005 | 80 | 3.1496 | -.0005 | 18 | .7087 | .040 | 9 | 15/32 | 3520 | 5035 | |
45 | 1.7717 | -.0005 | 85 | 3.3465 | -.0005 | 19 | .7480 | .040 | 9 | 1/2 | 4005 | 5655 | |
50 | 1.9685 | -.0005 | 90 | 3.5433 | -.0006 | 20 | .7874 | .040 | 10 | 1/2 | 4450 | 6065 | |
55 | 2.1654 | -.0006 | 100 | 3.9370 | -.0006 | 21 | .8268 | .060 | 10 | 9/16 | 5630 | 7500 | |
60 | 2.3622 | -.0006 | 110 | 4.3307 | -.0006 | 22 | .8661 | .060 | 10 | 5/8 | 6955 | 9065 | |
65 | 2.5591 | -.0006 | 120 | 4.7244 | -.0006 | 23 | .9055 | .060 | 10 | 21/32 | 7665 | 9900 | |
70 | 2.7559 | -.0006 | 125 | 4.9213 | -.0008 | 24 | .9449 | .060 | 10 | 11/16 | 8415 | 10715 | |
An Over view of Deep groove ball bearing
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Bearing structure
Deep groove ball bearing has simple structure, compared with other types of easy to achieve high manufacturing accuracy, so easy to become series mass production, lower manufacturing costs, the use of very common. Deep groove ball bearing except basic types, there are various kinds of structural change, such as: deep groove ball bearings with dust cover, deep groove ball bearings with a rubber sealing ring, deep groove ball bearings with snap groove, deep groove ball bearings have high load capacity of ball filling gap, double deep groove ball bearings.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.
Cage material
Generally use steel stamping cage or solid brass cage. When the diameter is less than 400 mm, use steel stamping cage without rear code, solid brass multipurpose holder without rear code when the diameter greater than 400 mm.
Application
The bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Packing &Delivery
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
