CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-1
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-2
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-3
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-4
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-5
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing thumbnail-6
CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-1

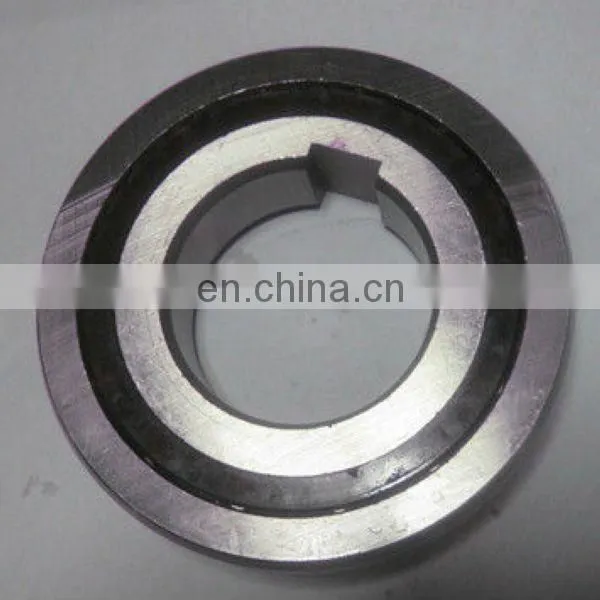

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-2

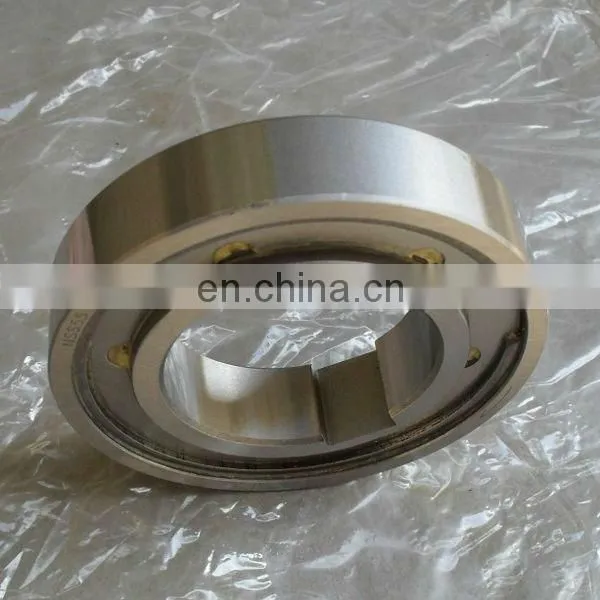

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-3

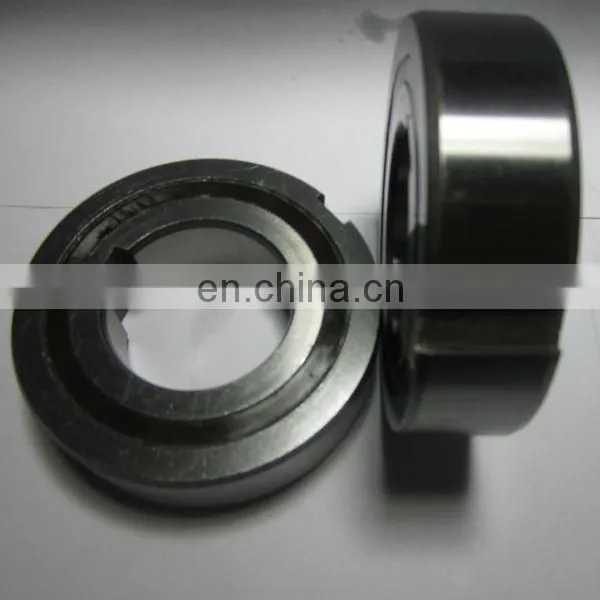

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-4

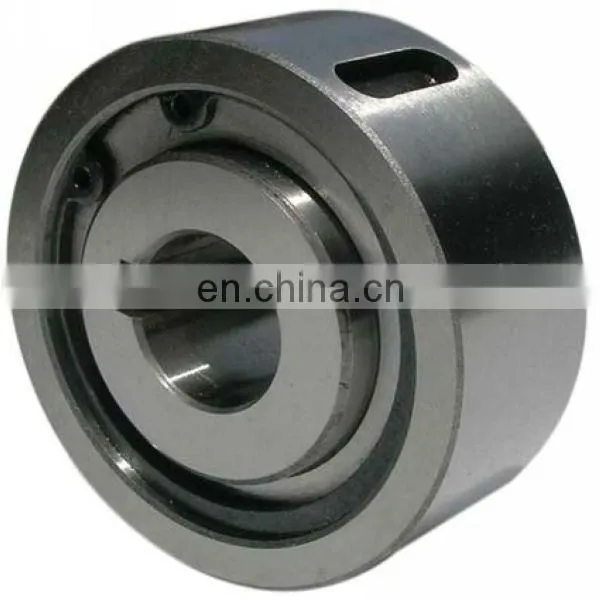

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-5

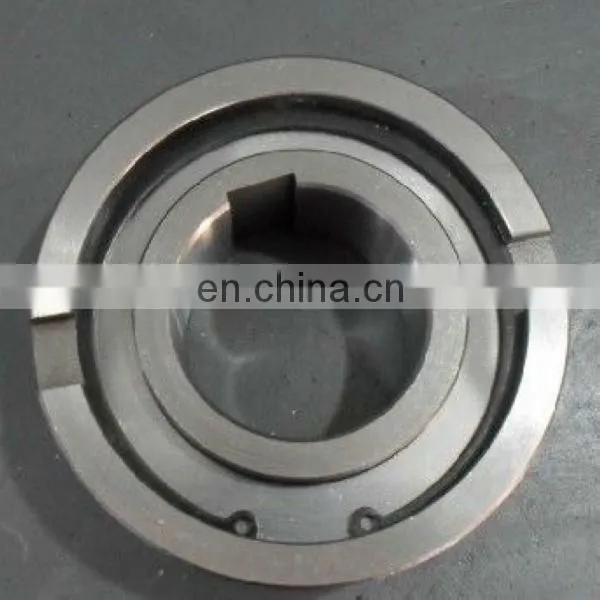

CSK20PP One Way Ball Bearing With Keyway Sprag Clutch Bearing photo-6
US$ 2.6 - 2.8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Place of Origin:
Shandong, China
Model Number:
CSK20PP
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Guangzhou Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Place of Origin Shandong, China
Model Number CSK20PP
Number of Row Single Row
Seals Type Rubber Seals
Precision Rating ABEC1 3 5 7
Outside Diameter 47,

CSK20PP one way ball bearing with keyway Sprag Clutch bearing CSK20P 20x47x17mm



CSK20PP one way ball bearing with keyway Sprag Clutch bearing

 CSK25PP One Way Bearing Details



CSK20PP one way ball bearing with keyway Sprag Clutch bearing
 Brand CLUNT
 Model CSK20PP CSK20P
 Type One way clutch bearing
 Inner Diamteter 20mm
 Outer Diamter 47mm
 Thickness  17mm
 Weight0.1kg
 Material chrome steel
 Cage steel cage
 Features CSK...P keyway on  inner ring,CSK...PP keyway on both inner and outer ring
 Width tolerance
 +/-0.05mm
 Depth tolerance 0/+0.1mm
Bearing Advantage

1).Excellent and high quality control

2).Prompt delivery

3).Competitive price

4).Small order accepted

5).Customers' drawing or samples accepted



 One way bearing Descriptions



 1.One way bearing

CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race;CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc.
The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied
snap ring, set collar, spacer, etc.

2.Specifications of CSK25PP one way bearing

Model:one way bearing

Cage:steel

Material:chrome steel

Precision:ABEC1 3 5 7

Clearance:C0 C2 C3

Vibration:V1 V2 V3 V4

Bearing:6205

Suffix designations:

No suffix after number: no keyway in races

Single P: one keyway in inner race

Double P (PP): Keyways in inner and outer races

Operating  Temperature: Sealed or Metal Shields Ranges: –20 °F to +230°F [–30 °C to +110°C]. The determining factor will be the lube and the seal material

Packing:Individual plastic bag+box

Sample:Offered

3.Features of CSK one way bearing



CSK-2RS



CSK-2RS clutches are 5mm wider than a standard 62 series bearing, as they are equipped with lip seals for washdown applications.



CSK-P



CSK-P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race. These clutches can be mounted on a shaft to k6 tolerance. The outer race must be pressed into a rigid housing to N6 tolerance.



CSK-PP



CSK-PP features a keyway on both the inner and outer race. The recommended mounting tolerances are k6 on the shaft and K6 in a rigid housing. An h6 tolerance on the shaft or H6 in the housing are also acceptable for a light press fit assembly.

4.Keyseat Sizes

TypeInner keyway size (mm)

 Width x Depth

Outer keyway size(mm)

Width x Depth

CSK83 X 0.52 X 0.5
CSK124 X 1.22 X 0.6
CSK155 X 1.22 X 0.6
CSK175 X 1.22 X 1
CSK206 X 1.63 X 1.5
CSK258 X 26 X 2
CSK308 X 26 X 2
CSK3510 X 2.48 X 2.5
CSK4012 X 3.310 X 3



5.CSK25PP one way bearing Pictures

CSK20PP one way ball bearing with keyway Sprag Clutch bearingCSK20PP one way ball bearing with keyway Sprag Clutch bearing
