Steel bearing 6207 2RS/C3 deep groove ball bearing 6207 2RS C3
Descriptions of deep groove ball bearing
Deep groove ball bearings are a self-retaining bearing with a solid outer ring, inner ring and a ball and cage assembly. They can handle not only radial forces, but also moderate axial loads in both directions. They are also suitable for high rotating speeds.
Seals |
Textured Rubber Seals |
Lubrication |
Wide temperature range (-50°F to + 300°F) |
Noise Testing |
Noise tested after lubrication |
Noise Level |
Passes Noise Vibration V3 Standards |
Precision Balls |
Matched ABMA Grade 10 or better for roundness |
Raceways |
Finely honed Super Finished for long life and low noise |
Quality Level |
Our Bearings meet or exceed ABEC 3 tolerances with a C/3 fit. |
Specifications of 6207 2RS/C3 deep groove ball bearing
| Bore diameter (mm) | Out diameter (mm) | T Size (mm) | Weight (Kg) |
|---|---|---|---|
| 35.000 | 72.000 | 17.000 | 0.290 |
Please find our detailed models below
| Item | ID | OD | Width | Chamfer | LOADING(KN) | RUN SPEED | WEIGHT | ||
| R | Dynamic | Static | Grease | Oil | KG | ||||
| mm | Cr | Cor | r/min | r/min | |||||
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 29000 | 34000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26000 | 30000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 22000 | 26000 | 0.035 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20000 | 24000 | 0.04 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18000 | 21000 | 0.068 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15000 | 18000 | 0.079 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13000 | 15000 | 0.113 |
| 6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 12000 | 14000 | 0.149 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10000 | 12000 | 0.185 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 9200 | 11000 | 0.231 |
| 6010 | 50 | 80 | 16 | 1.1 | 21.8 | 16.6 | 8400 | 9800 | 0.256 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 18000 | 21000 | 0.066 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 16000 | 18000 | 0.106 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 13000 | 15000 | 0.128 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 11000 | 13000 | 0.199 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 8700 | 10000 | 0.366 |
| 6209 | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 7800 | 9200 | 0.398 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 7100 | 8300 | 0.454 |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 23000 | 27000 | 0.053 |
| 6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 20000 | 24000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1 | 11.4 | 5.45 | 17000 | 21000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1 | 13.5 | 6.55 | 16000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
| 6305 | 25 | 62 | 17 | 1.1 | 21.2 | 10.9 | 12000 | 14000 | 0.232 |
| 6306 | 30 | 72 | 19 | 1.1 | 26.7 | 15 | 10000 | 12000 | 0.36 |
| 6307 | 35 | 80 | 21 | 1.5 | 33.5 | 19.1 | 8800 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 1.5 | 40.5 | 24 | 7800 | 9200 | 0.63 |
| 6309 | 45 | 100 | 25 | 1.5 | 53 | 32 | 7000 | 8200 | 0.814 |
| 6310 | 50 | 110 | 27 | 2 | 62 | 38.5 | 6400 | 7500 | 1.07 |

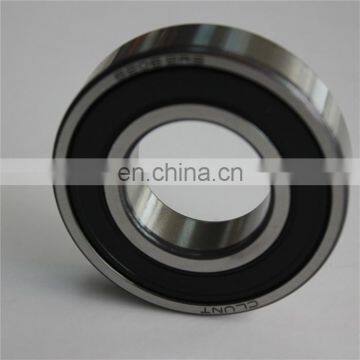

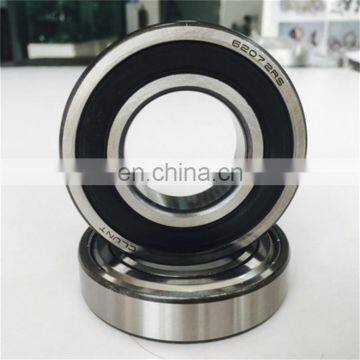

Deep groove ball bearings pictures showing
Company Profile
Jinan Kelunte Bearing Co.,Ltd was established in 2010 which is located in Fenghuangshan Electricity Industrial Park,Tian Qiao Distirct,Jinan city.Our company is a modern enterprise which combines bearing marketing and production.Our factory covers an area of 10,000 square metres and our plant covers more than 5000 square meters.Our company initroduced our own brand CLUNT.Equiped with modern prodution equipment and advanced inspection equipment, our products are mainly for the high-end market.Our main products:pillow block bearings,deep groove ball bearings,taper roller bearings,linear bearings,cylinderical roller bearings,precision machine tool spindle bearings,spherical roller bearings,ect.Our products are widely used in autombiles,high presion motors,speed reducer,vibrating screen,crusher,railway,etc.
Jinan Kelunte Bearing Co.,Ltd takes specialization as core strategy,promoting internationalizion and diversification.Our company devotes to achive domestic and international advanced level.
Jinan Kelunte Bearing C.,Ltd has been a respected and excellet enterprise in bearing industry.We will keep moving forward.
