large ball bearing 6226 bearing Generator bearing
large ball bearing 6226 bearing Generator bearing details:
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | CLUNT |
| 130 | 230 | 40 | 3 | 167 | 146 | 2,700 | 3,100 | 5.82 | 6226 |
large ball bearing 6226 bearing Generator bearing Features:
6226 bearing deep groove ball bearings are mainly used in centrifuges, axle bolts, CNC punching, cylindrical gear reducer, electric vehicle motors, valves, CNC cutting, electrodialysis equipment, electrical instrumentation, automotive lamps other equipment
Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds.
large ball bearing 6226 bearing Generator bearing operations
large ball bearing 6226 bearing Generator bearing catalog:
| TYPE | Overall dimension | Basic Load | Limiting Speeds | Weight | |||||
| d | D | B | rsmin | (Cr) | (Cor) | Grease | Oil | ||
| mm | KN | rpm | KG | ||||||
| 625 | 5 | 16 | 5 | 0.3 | 1.45 | 0.74 | 32000 | 40000 | 0.005 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 34000 | 40000 | 0.008 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.4 | 32000 | 37000 | 0.014 |
| 628 | 8 | 24 | 8 | 0.3 | 4 | 1.59 | 31000 | 36000 | 0.016 |
| 629 | 9 | 26 | 8 | 0.3 | 4.45 | 1.95 | 30000 | 35000 | 0.019 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.38 | 24000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.82 | 3.05 | 22000 | 27000 | 0.035 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 | 19000 | 24000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.58 | 4.78 | 17000 | 21000 | 0.064 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 14000 | 18000 | 0.103 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.88 | 12000 | 16000 | 0.127 |
| 6206 | 30 | 62 | 16 | 1.1 | 19.5 | 11.5 | 10000 | 13000 | 0.202 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.5 | 15.2 | 9000 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8200 | 10000 | 0.368 |
| 6209 | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7600 | 9300 | 0.416 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 7000 | 8600 | 0.463 |
| 6211 | 55 | 100 | 21 | 1.5 | 46.3 | 29 | 6300 | 7500 | 0.61 |
| 6212 | 60 | 110 | 22 | 1.5 | 47.5 | 32.5 | 6000 | 7000 | 0.78 |

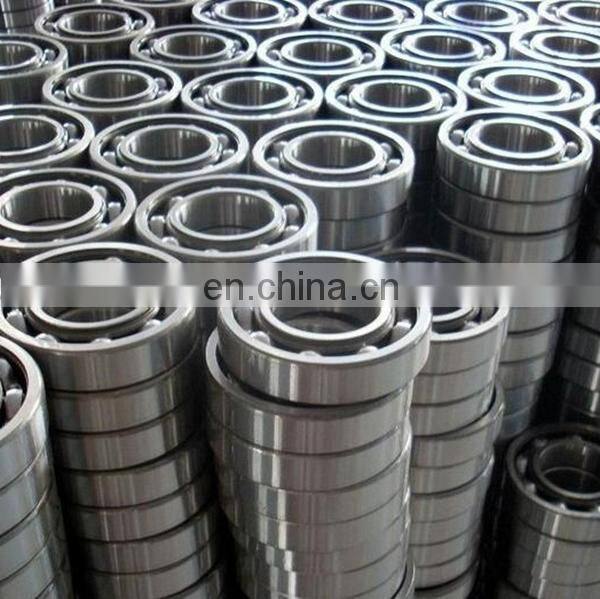

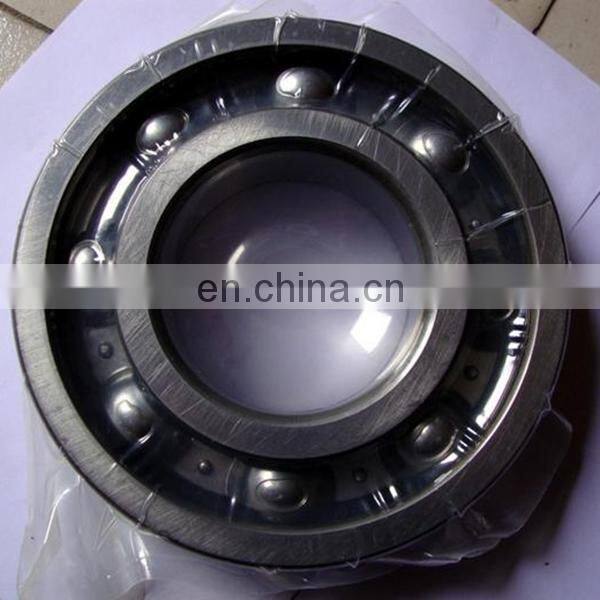

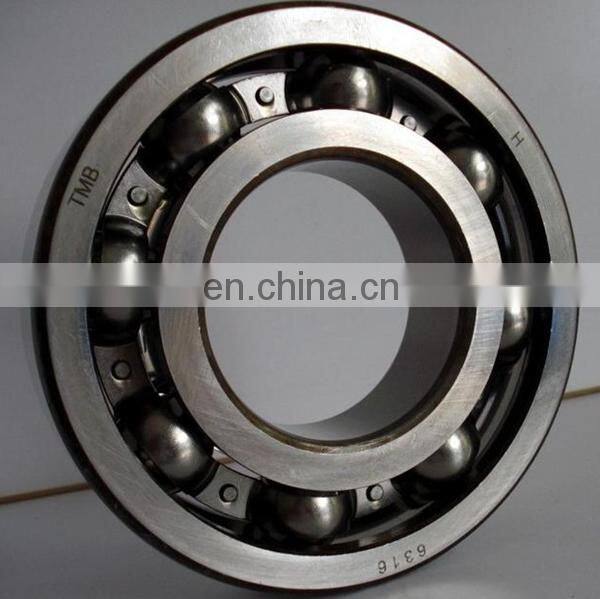

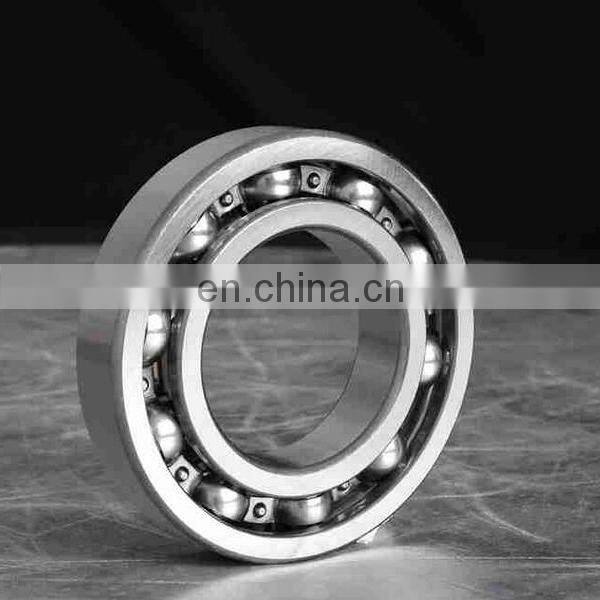

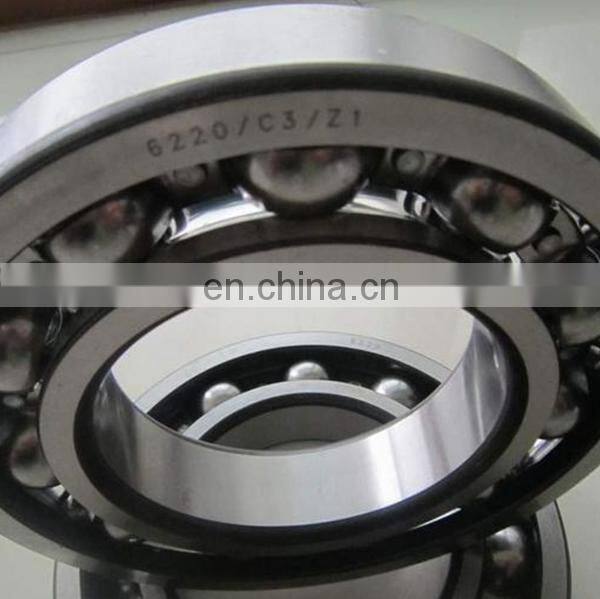

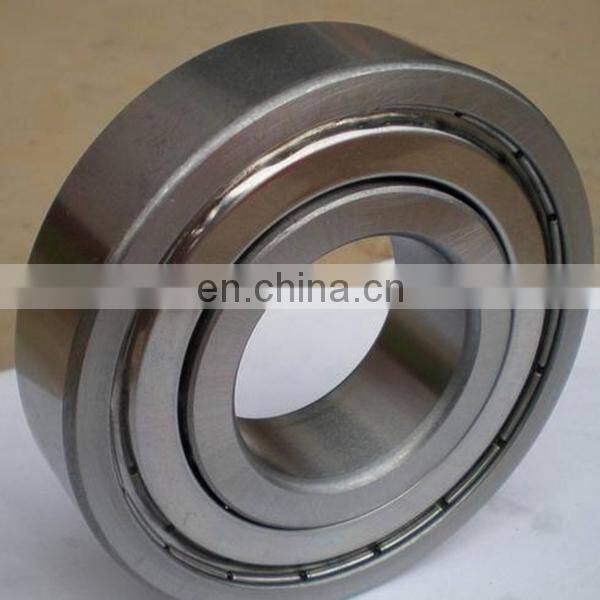

large ball bearing 6226 bearing Generator bearing pictures:

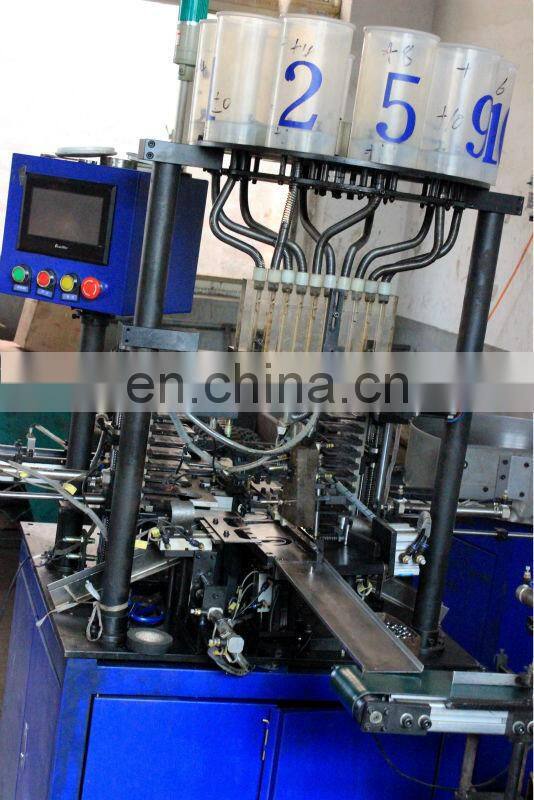

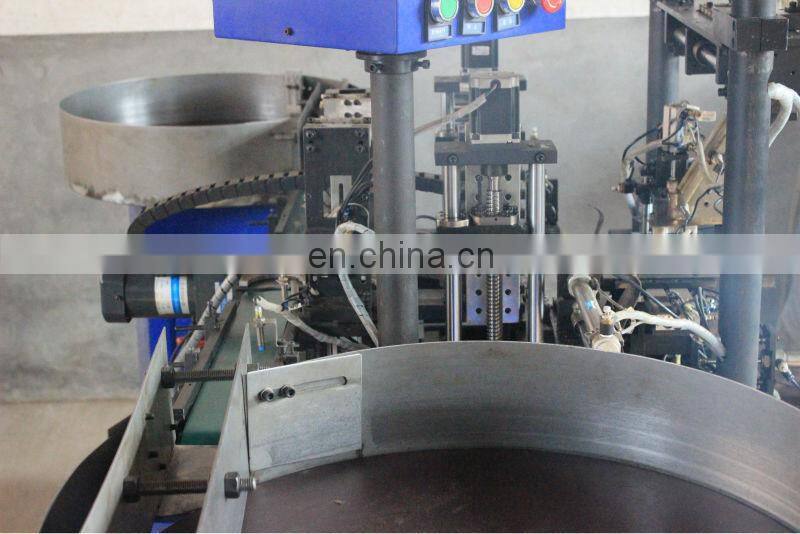

jinan kelunte bearing company’s factory:
