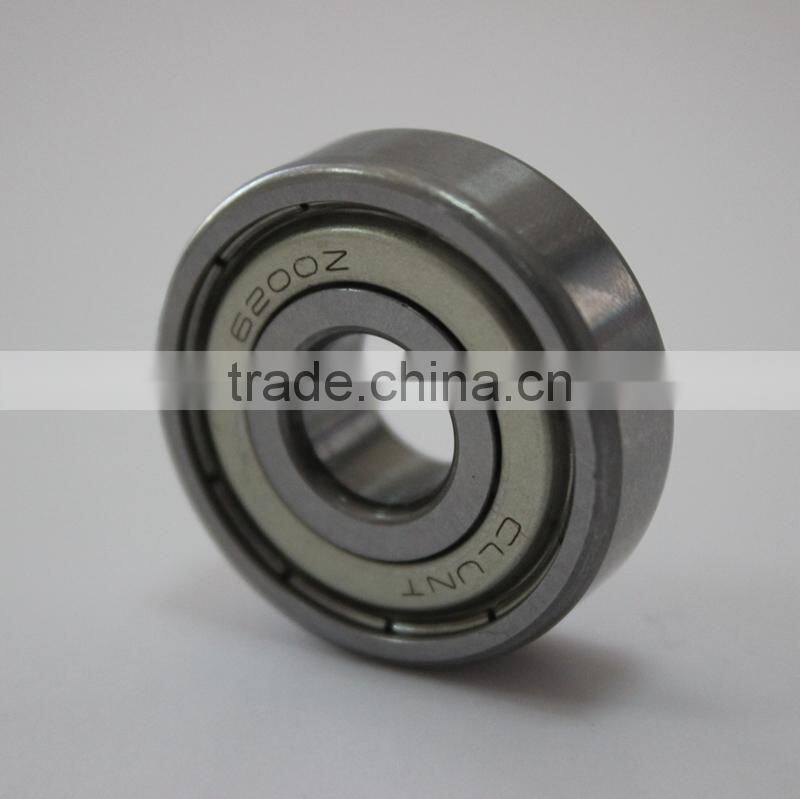

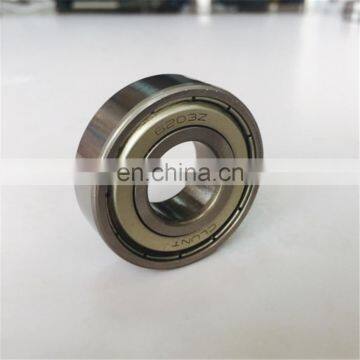

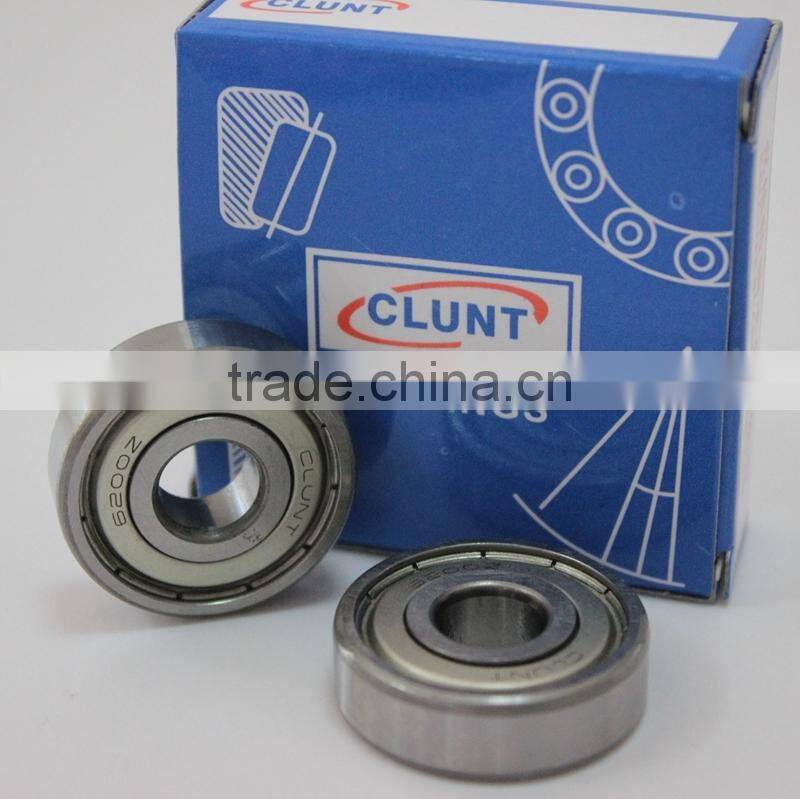

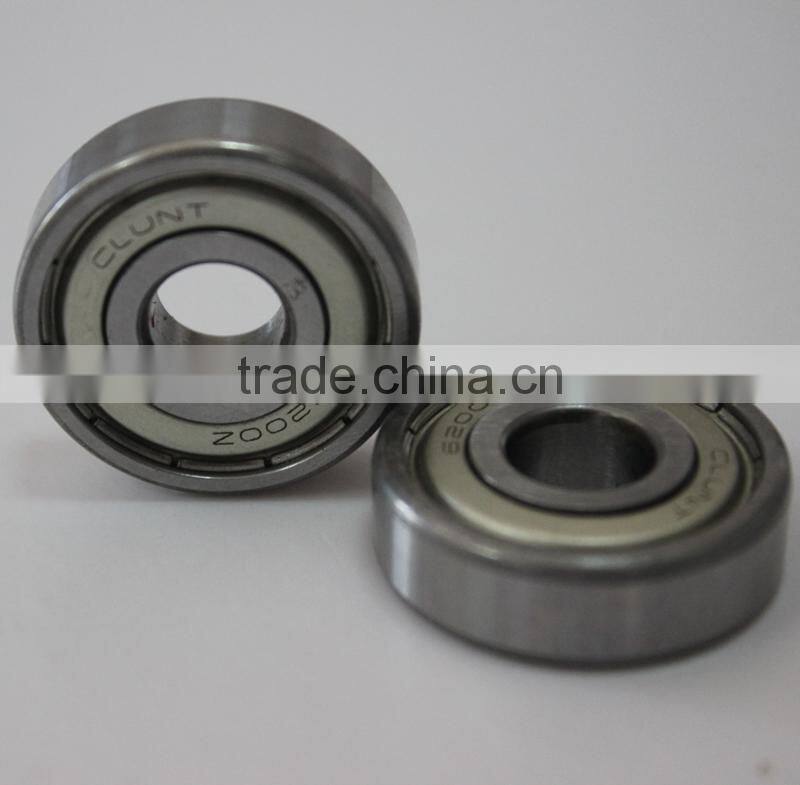

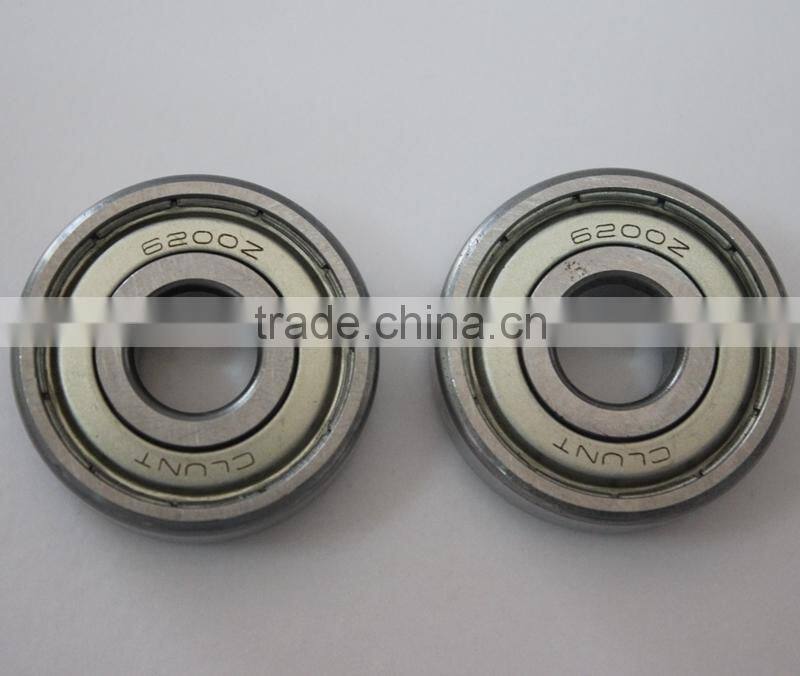

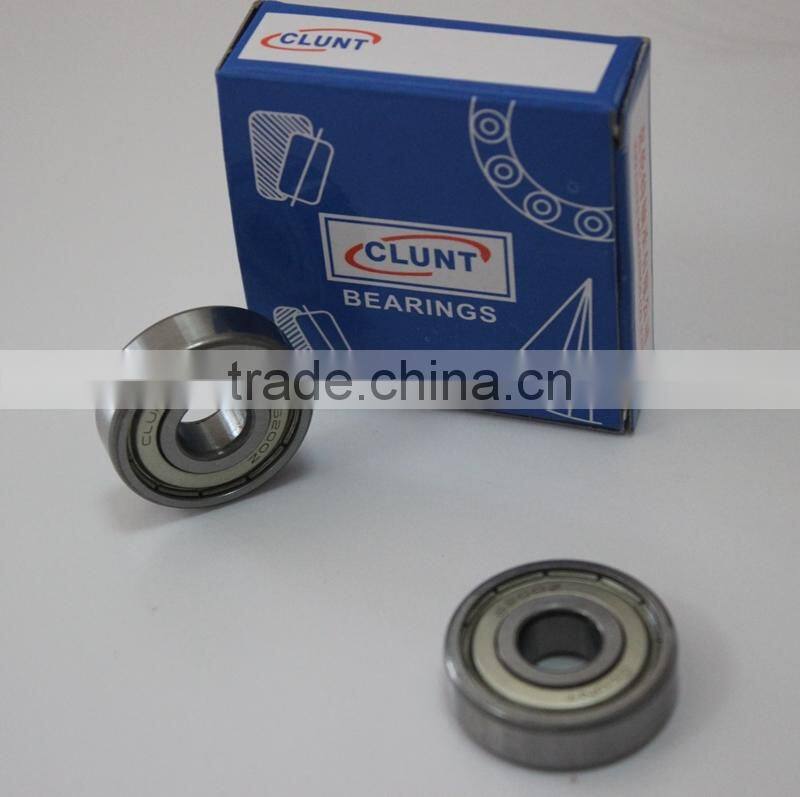

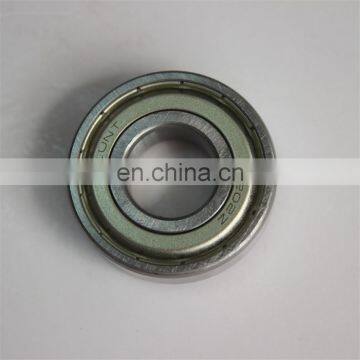

Cheap ball bearing 6200 bearing , sliding windows used , Assessed China Supplier
Brand: |
CLUNT |
Model: |
6200 ball bearing |
Sizes: |
10*30*9mm |
Weight: |
0.032KG |
Material : |
Gcr15/Gcr11/stainless steel |
FOB Price: |
USD $0.1-1,00/ Set |
Minimum Order Quantity: |
10Set/Sets |
Payment Terms: |
L/C,T/T ,Western Union |
Delivery Time: |
3 to 45days after order confirmed(depend on the total amount) |
Supply Ability: |
50000sets per month |
Port: |
Qingdao Shanghai Ningbo Yiwu Guangzhou China |
Packaging: |
1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll 2.Plastic tube: 10pcs/tube or 5pcs/tube 3.Single box: plastic bag+single box, OEM supply 4.Single wooden box: plastic bag+single wooden box 5.Carton: or as your need. 6.Pallet: Wooden |
Application of inch taper roller bearing |
Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery. |
Model number
6200 SERIES BALL BEARINGS | LIGHT | |||||||||||||
NPB |
Bore |
Outside Diameter |
Width |
Max. |
Balls |
Static |
Dynamic |
||||||
Frac. |
Inch |
Tol. |
Frac. |
Inch |
Tol. |
Tol. |
+.0000 |
No. |
Diam. |
||||
Open |
Seal/Shield |
||||||||||||
10 |
.3937 |
-.0003 |
30 |
1.1811 |
-.0004 |
9 |
.3543 |
.025 |
8 |
3/16 |
500 |
885 |
|
12 |
.4724 |
-.0003 |
32 |
1.2598 |
-.0005 |
10 |
.3937 |
.025 |
7 |
7/32 |
595 |
1055 |
|
15 |
.5906 |
-.0003 |
35 |
1.3780 |
-.0005 |
11 |
.4331 |
.025 |
8 |
7/32 |
675 |
1180 |
|
17 |
.6693 |
-.0003 |
40 |
1.5748 |
-.0005 |
12 |
.4724 |
.025 |
8 |
1/4 |
890 |
1500 |
|
20 |
.7874 |
-.0004 |
47 |
1.8504 |
-.0005 |
14 |
.5512 |
.040 |
8 |
5/16 |
1390 |
2220 |
|
25 |
.9843 |
-.0004 |
52 |
2.0472 |
-.0005 |
15 |
.5906 |
.040 |
9 |
5/16 |
1565 |
2415 |
|
30 |
1.1811 |
-.0004 |
62 |
2.4409 |
-.0005 |
16 |
.6299 |
.040 |
9 |
3/8 |
2255 |
3360 |
|
35 |
1.3780 |
-.0005 |
72 |
2.8346 |
-.0005 |
17 |
.6693 |
.040 |
9 |
7/16 |
3070 |
4430 |
|
40 |
1.5748 |
-.0005 |
80 |
3.1496 |
-.0005 |
18 |
.7087 |
.040 |
9 |
15/32 |
3520 |
5035 |
|
45 |
1.7717 |
-.0005 |
85 |
3.3465 |
-.0005 |
19 |
.7480 |
.040 |
9 |
1/2 |
4005 |
5655 |
|
50 |
1.9685 |
-.0005 |
90 |
3.5433 |
-.0006 |
20 |
.7874 |
.040 |
10 |
1/2 |
4450 |
6065 |
|
55 |
2.1654 |
-.0006 |
100 |
3.9370 |
-.0006 |
21 |
.8268 |
.060 |
10 |
9/16 |
5630 |
7500 |
|
60 |
2.3622 |
-.0006 |
110 |
4.3307 |
-.0006 |
22 |
.8661 |
.060 |
10 |
5/8 |
6955 |
9065 |
|
65 |
2.5591 |
-.0006 |
120 |
4.7244 |
-.0006 |
23 |
.9055 |
.060 |
10 |
21/32 |
7665 |
9900 |
|
70 |
2.7559 |
-.0006 |
125 |
4.9213 |
-.0008 |
24 |
.9449 |
.060 |
10 |
11/16 |
8415 |
10715 |
|
An Over view of Deep groove ball bearing
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Bearing structure
Deep groove ball bearing has simple structure, compared with other types of easy to achieve high manufacturing accuracy, so easy to become series mass production, lower manufacturing costs, the use of very common. Deep groove ball bearing except basic types, there are various kinds of structural change, such as: deep groove ball bearings with dust cover, deep groove ball bearings with a rubber sealing ring, deep groove ball bearings with snap groove, deep groove ball bearings have high load capacity of ball filling gap, double deep groove ball bearings.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.
Cage material
Generally use steel stamping cage or solid brass cage. When the diameter is less than 400 mm, use steel stamping cage without rear code, solid brass multipurpose holder without rear code when the diameter greater than 400 mm.
Application
The bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
Kelunte manufacture a full range of deep groove ball bearings. These bearings are the most common type and are used in a wide variety of applications.
- Single-Row Deep Groove Ball Bearings
-
Pressed Steel Cages
Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
For big deep groove ball bearings, machined brass cages are used.
Machined cages are also used for high speed applications.
- Extra Small Ball Bearings and Miniature Ball Bearings
-
Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can be further divided into the following five classes depending on their design details:
Standard type
Flanged outer ring
Extended inner ring
Expanded type in which one ring has a radial thickness that is larger than normal compared with the bearing width.
Thin section type in which both rings are extra thin in the radial direction. They can also be classified as: open, shielded, or sealed.
- Maximum-Type Ball Bearings
Maximum-Type ball Bearings contain a larger number of balls than normal deep groove ball bearings because of filling slots in the inner and outer rings. Because of their filling slots, they are not suitable for applications with high axial loads. BL2 and BL3 types of bearings have boundary dimensions equal to those of single-row deep groove ball bearings of Series 62 and 63 respectively. Besides the open type, ZZ type shielded bearings are also available. When using these bearings, it is important for the filling slot in the outer ring to be outside of the loaded zone as much as possible. Their cages are pressed steel.
- Magneto Bearings
The inner groove of magneto bearings is a little shallower than that of deep groove bearings. Since the outer ring has a shoulder on only one side, the outer ring may be removed. This is often advantageous for mounting. In general, two such bearings are used in duplex pairs. Magneto bearings are small bearings with a bore diameter of 4 to 20 mm and are mainly used for small magnetos, gyroscopes, instruments, etc. Pressed brass cages are generally used.
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
