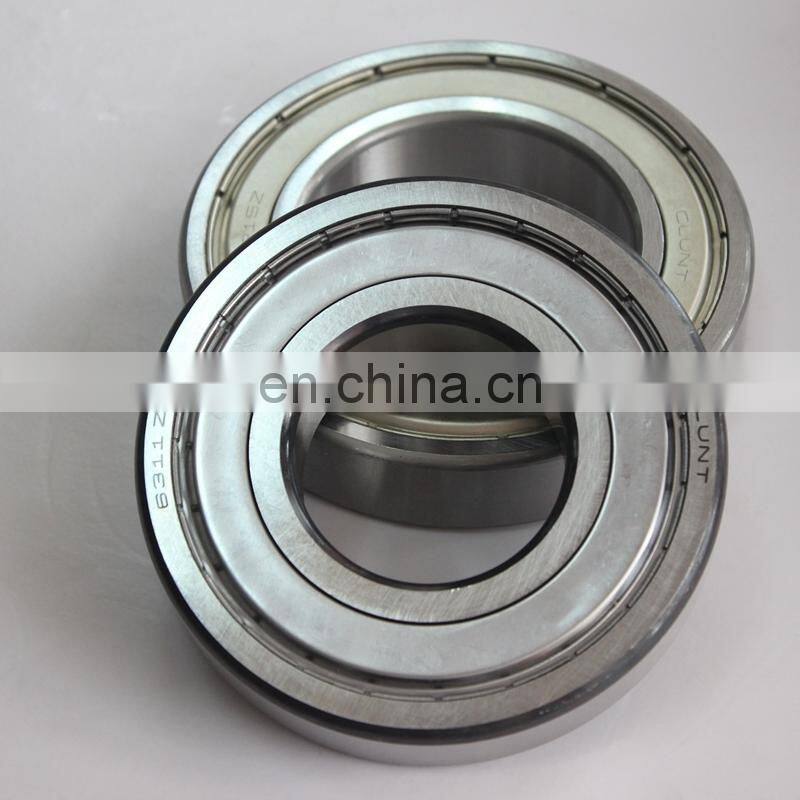

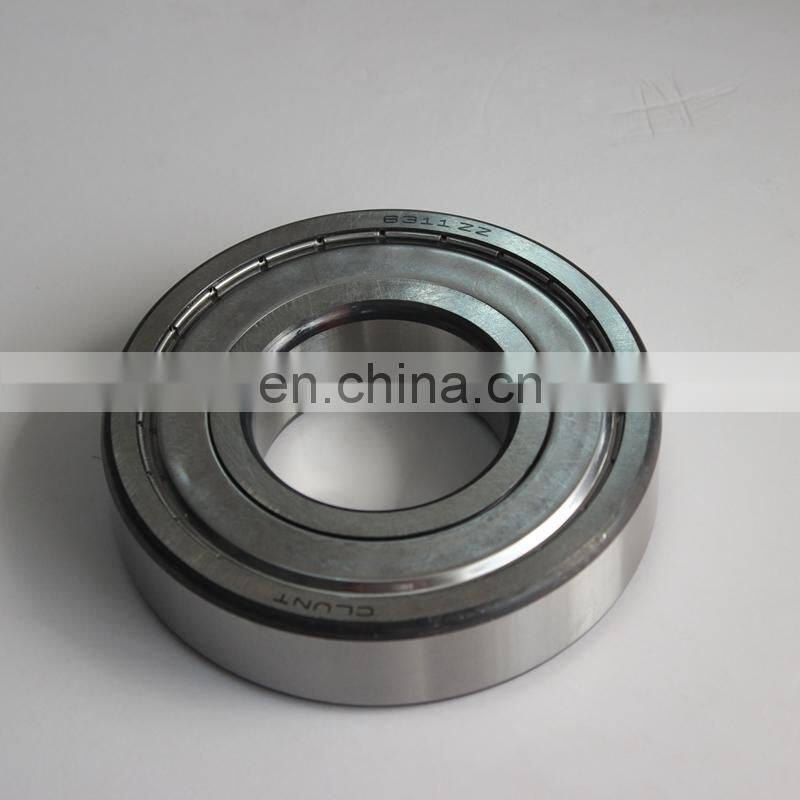

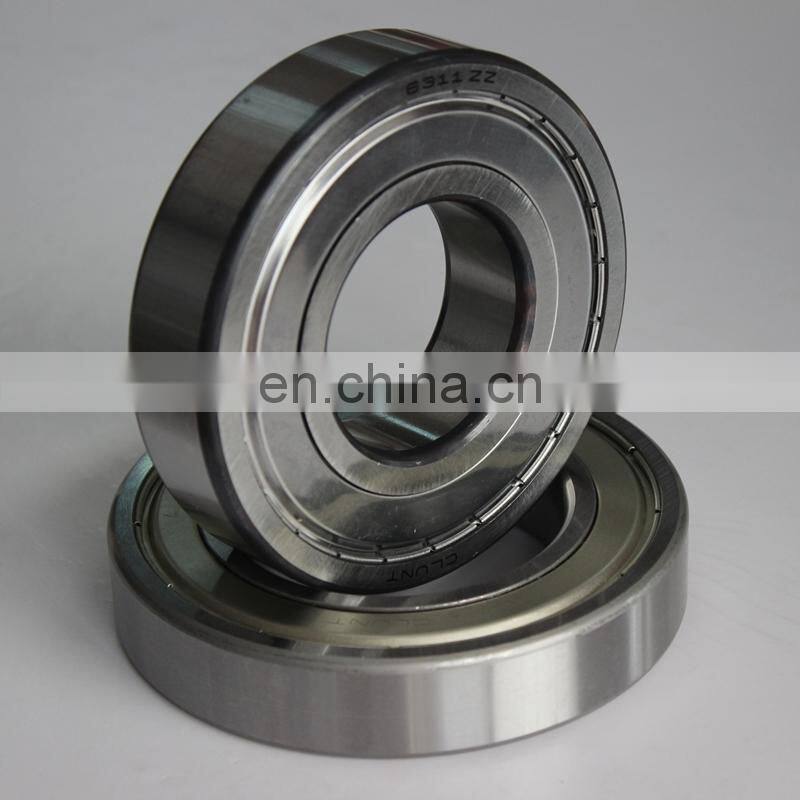

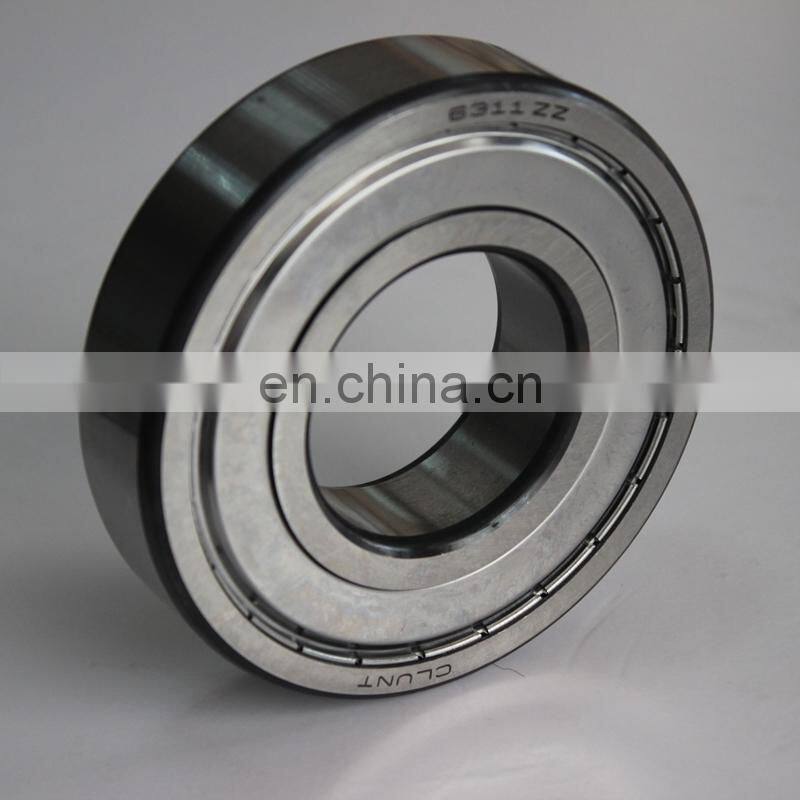

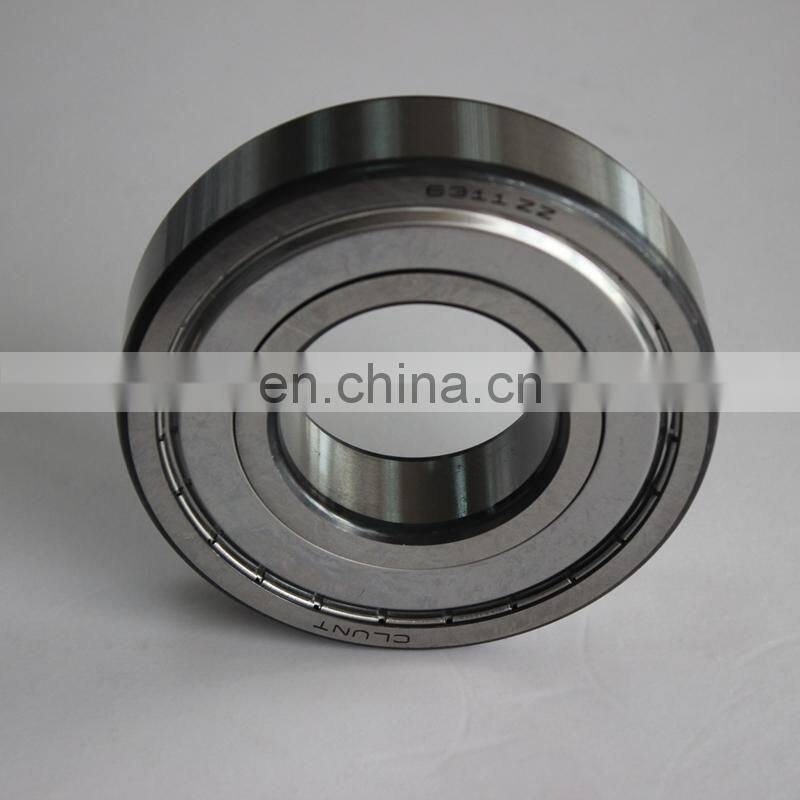

Steel cage ball bearing 6311Z 6311ZZ Deep groove ball bearing 6311 Z ZZ Made in China
Description of one way bearing Ball Bearing 6311 with nylon cage
| Attributes | Values |
| Part Number | 6311 Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 55mm |
| Outer Dia (D) | 120mm |
| Width (B) | 29mm |
| Material | 52100 Chrome steel, stainless steel and ceramic are available. |
| Dynamic Load Rating (Cr) (Newtons) | 71600 |
| Static Load Rating (Cor) (Newtons) | 45000 |
| Max Speed (Grease) (X1000 RPM) | 6 |
| Max Speed (Oil) (X1000 RPM) | 7 |
| Clearance | CO, C2 and C3 are available. |
| Weight (g) (grams) | 1350.00 |
| Note | ABEC Grades 1, 3, 5, 7, and 9 are available. |
Product Description
Deep groove ball bearings are used in a particularly wide variety of applications. Consequently, they are available in many executions and sizes.
We can supply various kinds of high quality Deep Groove Ball Bearings.
Bearing Specifications:
1) Bearing type: 6000, 6200, 6300, 6800, 6900, R and 16series
2) Bore diameter range: 4mm to 650 mm
3) Shield/closure: RS, 2RS, Z, ZZ, OPEN
4) Snap ring: N, NR
5) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7
6) Vibration level codes: V4, V3, V2, V1
7) Internal clearance codes: C0, C2, C3, C4, C5
8) Packing: Plastic tube packing or individual box packing.
Other Types Deep Groove Ball Bearings:
The standard range comprises the following types:
– single row deep groove ball bearings
– Energy Efficient deep groove ball bearings
– single row deep groove ball bearings with filling slots
– stainless steel single row deep groove ball bearings
– double row deep groove ball bearings
– single row hybrid deep groove ball bearings, see section “Engineering products – Hybrid bearings”
– single row deep groove ball bearings for high temperatures
– cam rollers, see section “Track runner bearings – Cam rollers”
– polymer ball bearings, see section “Engineering products – Polymer ball bearings”
deep groove ball bearing 6300 series:
| Bearing NO | Size(mm) | Weight(kg) | Brand | |
| 6300 | 6300ZZ | 10*35*11 | 0.0524 | CLUNT |
| 6301 | 6301ZZ | 12*37*12 | 0.0586 | CLUNT |
| 6302 | 6302ZZ | 15*42*13 | 0.082 | CLUNT |
| 6303 | 6303ZZ | 17*47*14 | 0.109 | CLUNT |
| 6304 | 6304ZZ | 20*52*15 | 0.142 | CLUNT |
| 6305 | 6305ZZ | 25*62*17 | 0.2 | CLUNT |
| 6306 | 6306ZZ | 30*72*19 | 0.34 | CLUNT |
| 6307 | 6307ZZ | 35*80*21 | 0.453 | CLUNT |
| 6308 | 6308ZZ | 40*90*23 | 0.636 | CLUNT |
| 6309 | 6309ZZ | 45*100*25 | 0.825 | CLUNT |
| 6310 | 6310ZZ | 50*110*27 | 1.05 | CLUNT |
| 6311 | 6311ZZ | 55*120*29 | 1.35 | CLUNT |
| 6312 | 6312ZZ | 60*130*31 | 1.67 | CLUNT |
| 6313 | 6313ZZ | 65*140*33 | 2.08 | CLUNT |
| 6314 | 6314ZZ | 70*150*35 | 2.55 | CLUNT |
| 6315 | 6315ZZ | 75*160*37 | 3.02 | CLUNT |
| 6316 | 6316ZZ | 80*170*39 | 3.66 | CLUNT |
| 6317 | 6317ZZ | 85*180*41 | 4.22 | CLUNT |
| 6318 | 6318ZZ | 90*190*43 | 4.91 | CLUNT |
| 6319 | 6319ZZ | 95*200*45 | 5 | CLUNT |
| 6320 | 6320ZZ | 100*215*47 | 7.2 | CLUNT |
| 6321 | 6321ZZ | 105*225*49 | 7.84 | CLUNT |
| 6322 | 6322ZZ | 110*240*50 | 9.22 | CLUNT |
| 6324 | 6324ZZ | 120*260*55 | 14.78 | CLUNT |
| 6326 | 6326ZZ | 130*280*58 | 16.52 | CLUNT |
| 6328 | 6328ZZ | 140*300*62 | 22.76 | CLUNT |
| 6330 | 6330ZZ | 150*320*65 | 26 | CLUNT |
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
1. Neutral Package: Plastic Tube + Carton + Pallet
2. Commercial Package: single CLUNT Box + Carton + Pallet
1. Payment:
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amount)
2. Delivery:
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
1.Why choose us?
Profession and reliability. Everyone likes to blow big bubbles. But we need to be honest with ourselves. We maybe not the most handsome, but we have a heart like fire. To meet the morning sunshine, to enjoy our work every day. Say what we mean and mean what we said is our words to ourselves. We work for our family.
2.How long are their lifetime?
My friend, with your gentle care,12 months to 36 months for different products.
3.How to deal with the quality problem?
Congratulation! You must be winning lottery!
You will get helps by beautiful ladies from our QC terms. There will be discount, secret gifts, of course the new bearings waiting for you.On the other hand, we have a PPAP of each shipment, so that we knowWhich shipment is bad? We will cut off production line and avoid more loss.
4.Can you take responsibility for me?
Of course, I’m happy to help you! But I just take responsibility for my products. We are not willing to see the quality issues, but if happen this problem we will deal with them according to the actual situation.
- Please offer a test report.
- If it was our fault, absolutely we can make a compensation for you, my friend!
