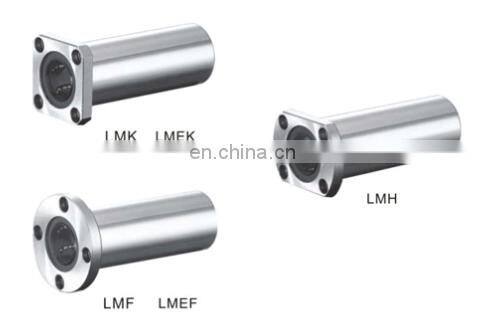

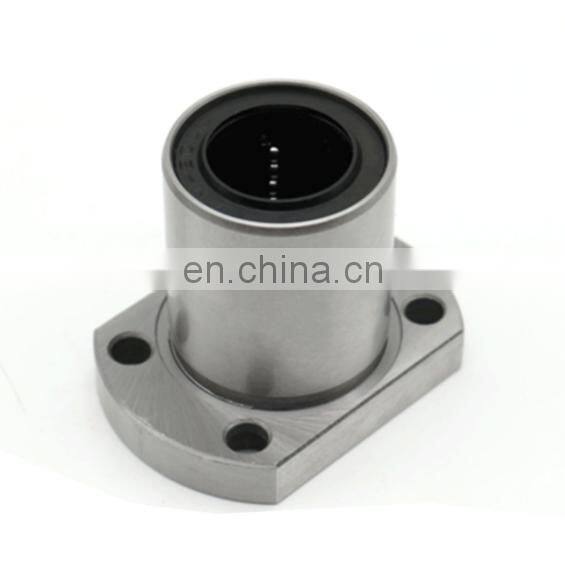

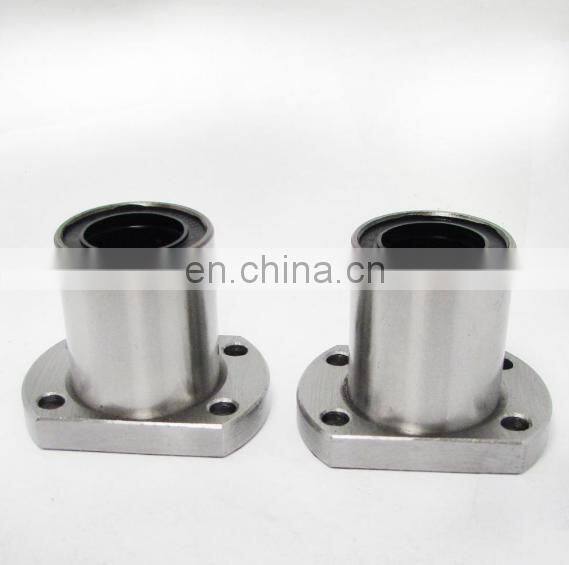

Oval Flange Bearing LMH12UU Linear Motion Ball Bearings
Drawings &Specification :
DESCRIPTION
The rubber shields on LMH12UU are designed to offer protection against the entry of some dirt and so on, as well as lighter mechanical damage. LMH12UU bearings also help to contain the lubricant / grease. LMH12UU manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service.
LM12UU consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. LMH12UU outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances.
Linear ball bearing LMH12UU
Bearing number : LMH12UU
Brand : CLUNTE
Bore Diameter (mm) : 12
Outer Diameter (mm) : 21
Other linear motion ball bearing :
|
STEEL Type |
Ball circuit |
Major dimensions and tolerance(mm) |
Basic load rating |
Weight | |||||||||||
| dr | D | L | Flange | ||||||||||||
| Df | W | t | A | F | X | Y | Z |
Dynam ic C(lbf) |
Static (CoN) lbf |
g | |||||
| LMH6UU | 4 | 6 | 12 | 19 | 28 | 18 | 5 | 20 | - | 3.5 | 6 | 3.1 | 206 | 265 | 21 |
| LMH8UU | 4 | 8 | 15 | 24 | 32 | 21 | 5 | 24 | - | 3.5 | 6 | 3.1 | 274 | 392 | 33 |
| LMH10UU | 4 | 10 | 19 | 29 | 40 | 25 | 6 | 29 | - | 4.5 | 7.5 | 4.1 | 372 | 549 | 64 |
| LMH12UU | 4 | 12 | 21 | 30 | 42 | 27 | 6 | 32 | - | 4.5 | 7.5 | 4.1 | 510 | 784 | 68 |
| LMH13UU | 4 | 13 | 23 | 32 | 43 | 29 | 6 | 33 | - | 4.5 | 7.5 | 4.1 | 510 | 784 | 81 |
| LMH16UU | 5 | 16 | 28 | 37 | 48 | 34 | 6 | 38 | 22 | 4.5 | 7.5 | 4.1 | 774 | 1180 | 112 |
| LMH20UU | 5 | 20 | 32 | 42 | 54 | 38 | 8 | 43 | 24 | 5.5 | 9 | 5.1 | 882 | 1370 | 167 |
| LMH25UU | 6 | 25 | 40 | 59 | 62 | 46 | 8 | 51 | 32 | 5.5 | 9 | 5.1 | 980 | 1570 | 325 |
| LMH30UU | 6 | 30 | 45 | 64 | 74 | 51 | 10 | 60 | 35 | 6.6 | 11 | 6.1 | 1570 | 2740 | 388 |
