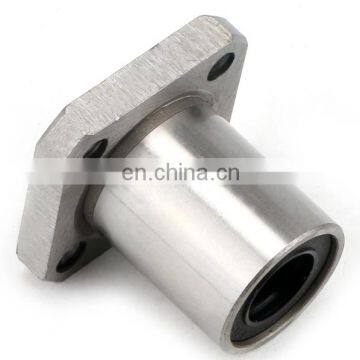

20mm Long Square Flanged Bushing Linear Motion LMEK20LUU Bearing
Drawings &Specification :
LMEK20LUU Square Flanged Linear Motion Long Ball Bushing. Inner diameter is 20mm, outer diameter is 32mm, and length is 80mm.
- Item: LMEK20LUU Ball Bushing
- Type: Flanged Linear Motion Ball Bushing
- Inner Diameter: 20mm
- Outer Diameter: 32mm
- Length: 80mm
- Dynamic load rating: 2740 N
- Static load rating: 1370 N
- Quantity: One Bearing
Other linear motion ball bearing :
Nominal |
PART NO. |
Weight |
Eccentricity |
Squareness |
Basic load rating |
|
|---|---|---|---|---|---|---|
Dynamic |
Static |
|||||
6 |
LMK6LUU |
25 |
15 |
15 |
323 |
529 |
8 |
LMK8LUU |
43 |
431 |
784 |
||
10 |
LMK10LUU |
78 |
588 |
1,100 |
||
12 |
LMK12LUU |
90 |
813 |
1,570 |
||
13 |
LMK13LUU |
108 |
813 |
1,570 |
||
16 |
LMK16LUU |
165 |
1,230 |
2,350 |
||
20 |
LMK20LUU |
225 |
20 |
20 |
1,400 |
2,740 |
25 |
LMK25LUU |
500 |
1,560 |
3,140 |
||
30 |
LMK30LUU |
590 |
2,490 |
5,490 |
||
35 |
LMK35LUU |
930 |
25 |
25 |
2,650 |
6,270 |
40 |
LMK40LUU |
1380 |
3,430 |
8,040 |
||
50 |
LMK50LUU |
3400 |
6,080 |
15,900 |
||
60 |
LMK60LUU |
4060 |
30 |
30 |
7,550 |
20,000 |
Major dimensions and tolerance | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm |
dr |
mm |
D |
mm |
L |
Flange |
||||||
Tolerance |
Tolerance |
Tolerance |
Df mm |
K mm |
t mm |
Dp mm |
X mm |
Y mm |
Z mm |
|||
6 |
0 -10 |
12 |
0 -13 |
35 |
±300 |
28 |
22 |
5 |
20 |
3.5 |
6 |
3.1 |
8 |
15 |
45 |
32 |
25 |
5 |
24 |
3.5 |
6 |
3.1 |
|||
10 |
19 |
0 -16 |
55 |
40 |
30 |
6 |
29 |
4.5 |
7.5 |
4.1 |
||
12 |
21 |
57 |
0 -300 |
42 |
32 |
6 |
32 |
4.5 |
7.5 |
4.1 |
||
13 |
23 |
61 |
43 |
34 |
6 |
33 |
4.5 |
7.5 |
4.1 |
|||
16 |
28 |
70 |
48 |
37 |
6 |
38 |
4.5 |
7.5 |
4.1 |
|||
20 |
0 -12 |
32 |
0 -19 |
80 |
54 |
42 |
8 |
43 |
5.5 |
9 |
5.1 |
|
25 |
40 |
112 |
0 -400 |
62 |
50 |
8 |
51 |
5.5 |
9 |
5.1 |
||
30 |
45 |
123 |
74 |
58 |
10 |
60 |
6.6 |
11 |
6.1 |
|||
35 |
0 -15 |
52 |
0 -22 |
135 |
82 |
64 |
10 |
67 |
6.6 |
11 |
6.1 |
|
40 |
60 |
151 |
96 |
75 |
13 |
78 |
9 |
14 |
8.1 |
|||
50 |
80 |
192 |
116 |
92 |
13 |
98 |
9 |
14 |
8.1 |
|||
60 |
0 -20 |
90 |
0 -25 |
209 |
134 |
106 |
18 |
112 |
11 |
17 |
11.1 |
|
