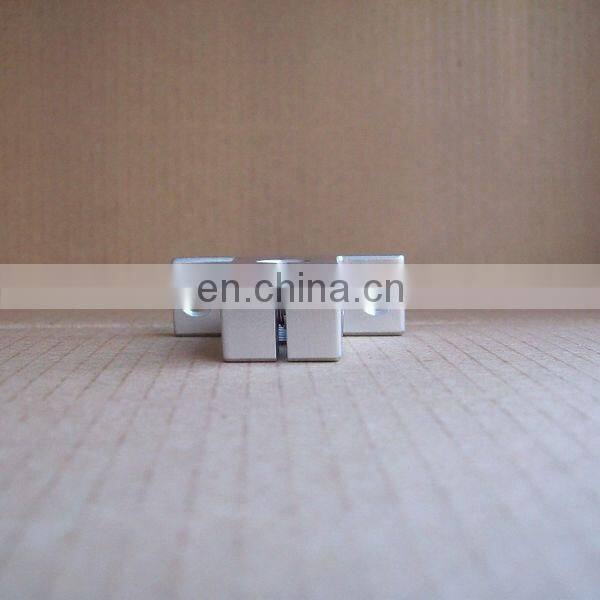

SK8 linear rail bearing support
Brif introductions of shaft supporting housing
Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type ball bushing bearings. Shaft support blocks enable clamping of shafts, type SB and eliminate the need for bolts to maintain shaft position. Shimming is suggested for high precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.
| Support Block Style | Imperial Type (in) | Metric Type (mm) |
|---|---|---|
| Sizes | .25" - 2" | 8mm - 40mm |
| Support Types | Standard Low Profile Flanged | Standard Low Profile |
| Support Materials | Aluminum Malleable Iron | Aluminum Malleable Iron |
Linear bearings
Linear bearings, manufactured with low cost, are used in limitless journey or used to work in column.As loading ball contacts the shaft at certain point, the bearing application loading capacity is quite small. With rotation of ball with a quite slight friction resistance, high-precise level movement can be obtained. Linear bearings are widely used in precise equipments such as electronic equipment, pull measuring machine,numeralization 3-D measuring equipment, etc; and slip part of industrial machines such as multi-shaft machine, punching machine, tool grinder, auto steam cutting machine, printer, card selection machine, food packing machine and so on.
Specifications of SK8 linear rail bearing support
| Bearing Code | SK8 |
| Shaft Diameter | 8 |
| H | 20 |
| E | 21 |
| W | 42 |
| L | 14 |
| F | 37.5 |
| G | 6 |
| P | 18 |
| B | 32 |
| S | 5.5 |
| Designation of clamping bolt | M4 |
| Designation of mounting bolt | M5 |
| Weight | 0.024 |

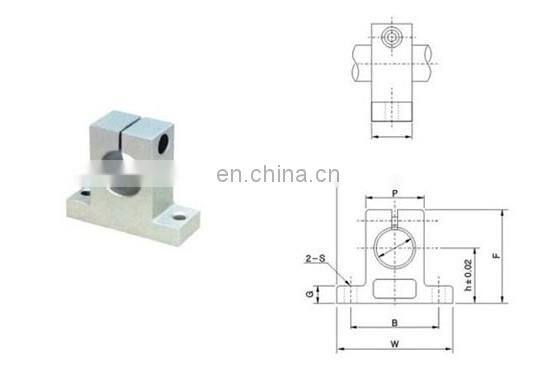

Drawing of shaft supporting housing
Features of SK8 linear rail bearing support
- Precision CNC machined
- Hex type bolt for clamping the shaft
- Silver brushed aluminum finish
- Perfect for your DIY CNC routers, mills, lathes
- For 12mm shafts
- Suits X, Y or Z axis
- No more trying to figure out how to mount your shafts!
- Item located in Melbourne so fast shipping!
- Also available in 10mm, 12mm, 16mm, 20mm and 25mm
- Please see my other listings for matching 12mm hardened shaft
- Generally you will need to purchase 2 (one for each end)
- Brand new!
- Please check out my other CNC items & we do provide combined shipping!
About Products
- SHF-B...B - Shaft Supporting Housing
- SHF...B - Shaft Supporting Housing
- PA...B - Shaft Supporting Housing
- SKW...B - Shaft Supporting Housing
- SWD-L...B - Shaft Supporting Housing
- SWD...B - Shaft Supporting Housing
- SWB-L-OP...B - Shaft Supporting Housing
- SWB-OP...B - Shaft Supporting Housing
- KBE...B - Shaft Supporting Housing
- KBB-OP...B - Shaft Supporting Housing
- SME-L...B - Shaft Supporting Housing
- TBR...B - Shaft Supporting Housing
- SME...B - Shaft Supporting Housing
- SWB-L...B - Shaft Supporting Housing
- SWB...B - Shaft Supporting Housing
- SWA-L...B - Shaft Supporting Housing
- SWA...B - Shaft Supporting Housing
- KBA-L...B - Shaft Supporting Housing
- KBA-S...B - Shaft Supporting Housing
- KBB-AJ...B - Shaft Supporting Housing
- KBB...B - Shaft Supporting Housing
- KBSB-AJ...B - Shaft Supporting Housing
- KBSB...B - Shaft Supporting Housing
- KBA-AJ...B - Shaft Supporting Housing
- KBA...B - Shaft Supporting Housing
- SMA-L...B - Shaft Supporting Housing
- SMA-S...B - Shaft Supporting Housing
- SMA-AJ...B - Shaft Supporting Housing
- SMA...B - Shaft Supporting Housing
- SI Series Linear Shaft
- SP Series Linear Shaft
- S Series Linear Shaft
- SSW-OP Series linear motion bearings
- SSW Series linear motion bearing
- SKB-OP Series linear motion bearings
- SKB Series linear motion bearings
- SLM-OP Series linear motion bearings
- SLM Series Linear Motion Bearings
- LME…LUU linear motion bearings
- LM…LUU linear motion bearings
- LME…UU / UUAJ / UUOP linear motion bearings
- LM…UU/ UUAJ/ UUOP Linear motion bearings
Model numbers shaft support housing
| Shaft support unit-SK | ||||
| Model | Shaft | Clamping | Mounting | Mass |
| no. | Dia(mm) | bolt | bolt | (g) |
| SK3 | 3 | M4 | M5 | 24 |
| SK4 | 4 | M4 | M5 | 24 |
| SK5 | 5 | M4 | M5 | 24 |
| SK6 | 6 | M4 | M5 | 24 |
| SK8 | 8 | M4 | M5 | 24 |
| SK10 | 10 | M4 | M5 | 24 |
| SK12 | 12 | M4 | M5 | 30 |
| SK13 | 13 | M4 | M5 | 30 |
| SK16 | 16 | M5 | M6 | 40 |
| SK20 | 20 | M6 | M6 | 70 |
| SK25 | 25 | M6 | M8 | 130 |
| SK30 | 30 | M8 | M10 | 180 |
| SK35 | 35 | M8 | M10 | 270 |
| SK40 | 40 | M10 | M10 | 420 |
| SK50 | 50 | M12 | M12 | 750 |
| SK60 | 60 | M12 | M12 | 1100 |
