Industrial Continuous Vacuum Lyophilizer
- Dalian
- T/T Credit Card
You May Like
-
Food Vacuum Lyophilization Machine
-
LG125 Fruit Powder Freeze Vacuum Dryer/big Capacity Freeze Dryer for Organic Freeze Dried Fruit Powder
-
LG 200 Big Capacity Freeze Dryer for Sale / Freeze Dried Chinese Date Machine/ Food Dehydrator Dryer With CE Certificate
-
LG75 Freeze Dried Fruit Machine Wholesale/ Pomegranate Fruit Freeze Drying Machine /commercial Fruit Freeze Drying Machine
-
LG50 Fruit Vacuum Freeze Drying Machine for Freeze Dried Pomegranate/Lyophilisate Machine/freeze Dried Fruit Processing Machine
-
Food Freeze Dryers Sale / Lyophilizer Freeze Dryer / Freeze Dried Pomegranate Fruit Making Machine
Product Details
| Brand Name | xinyang | Place of Origin | Liaoning, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
freeze dryer for industry

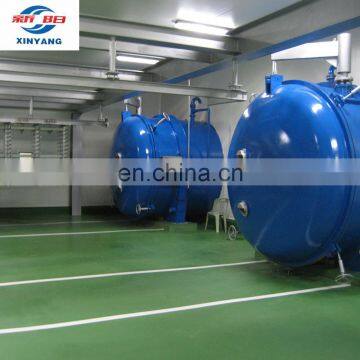

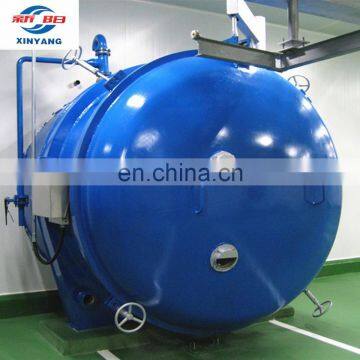

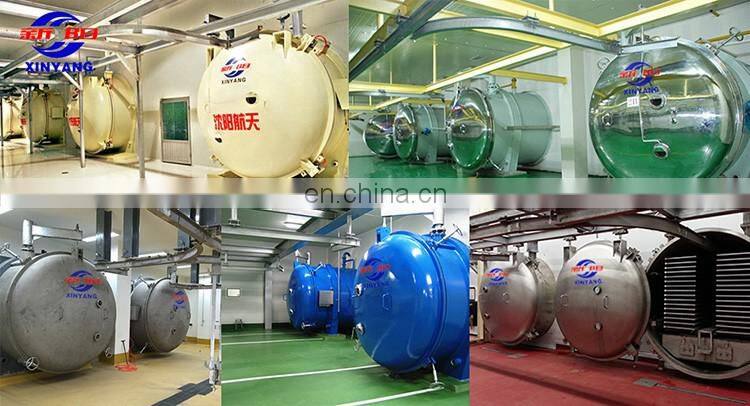

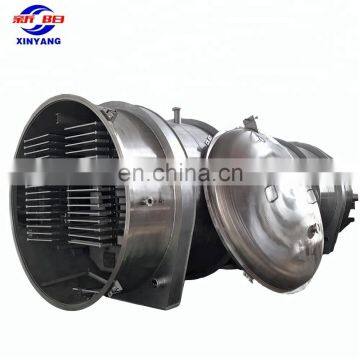

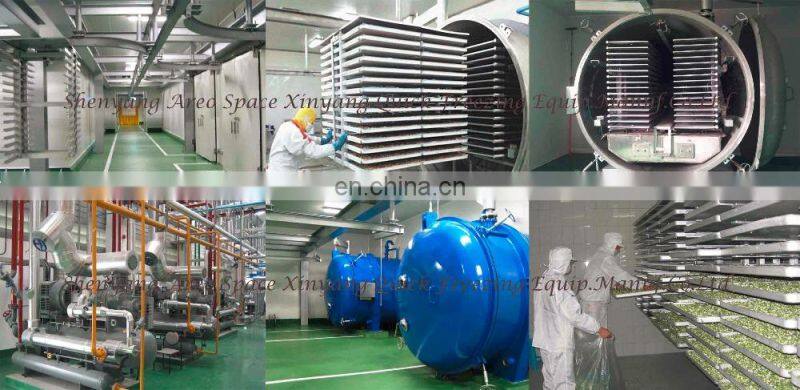

The LG200 Freeze Dryer is one of the largest industrial freeze dryers and has a 440kg/h ice capacity, a 200m2 shelf area and doors at both ends, both with observation ports. This industrial freeze dryer is ideal for large-scale commercial freeze drying applications.
The main technical data:
Xinyang LG200 Specification: | |
the steam consumption for the heating | ≥650kg / hour |
Weight (unloaded) | 25000kg (approx.) |
Chamber – Over all dimensions | 13.00m long x 2.50m wide x3.30m high (AISI 304 S/S) |
Vapour Condenser Capacity | 440 kg in a hour |

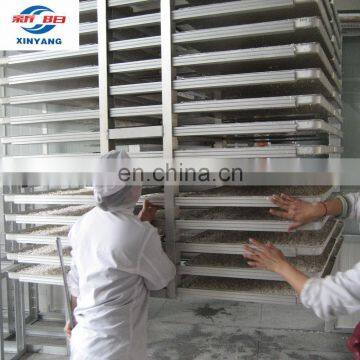

Number of shelves | 480 trays |
Usable Shelf Area (m2) | 200 m2 |
Ice Capacity (kg) | 440 kg/h |
Shelf Dimensions | 560*680*35mm |
Shelf Spacing (mm) | 35mm |
Shelf Temperature | -20oC to +60oC |
the condenser temperature | - 45C |
Low temperature model: shelf freezing to -35oC and vapour condenser temperature -45oC | |
Free distance between heating plates | 75mm |
Heating medium | Hot water |
Heating type | Double-sided radiation |
Heating medium, max. temperature | 130 C |
heating flange | ≥5 C / min speed |
the speed of cooling | 7a min (from 20C to – 40C without load) |
Cooling medium | Ammonia, freon |
Material of heating plates | Aluminum |
Sublimation(max) | 2.5kg/m2h |
Sublimation(average) | 1.5kg/m2h |
Power Requirement | 380VAC/50Hz,3phase,100KW(no including refrigerator) |
Vacuum | 133Pa (working 50pa ~ 133Pa) |
Material of vapor trap | Stainless steel |
water for bathing | automatic de-icing , no need water |
Specification Model | LG30 | LG50 | LG75 | LG100 | LG125 | LG200 | |
Heating Areas(m2) | 30 | 50 | 75 | 100 | 125 | 200 | |
Numbers of Vapor trap | Single | Double | Double | Double | Double | Double | Double |
Trapping Capacity | >400kg/batch | >66kg/hr | >110kg/hr | >165kg/hr | >220kg/hr | >275kg/hr | >440kg/hr |
Heating Medium | Water&electric | Water&Steam | Water&Steam | Water&Steam | Water&Steam | Water&Steam | Water&Steam |
Heating Mode | Double side radiation | ||||||
Temperature range of Heating plates | <95C | Normal Temp.~+130C | |||||
Vacuum Pressure (Pa) | 20~133 | ||||||
Need Refrigeration Capacity (t0=-4C,tk=-35C) (Kw) | 55 | 80 | 120 | 160 | 200 | 320 | |
Consumption of Steam (kg/h) | None | 150 | 200 | 280 | 340 | 400 | 690 |
Electric Power Supply (Kw) | 75 | 40 | 43 | 63 | 69 | 85 | 115 |
Tray Numbers | 78 | 80 | 120 | 180 | 240 | 300 | 480 |
Loading Raw Material | >390 | >400 | >600 | >900 | >1200 | >1500 | >2400 |
1.We guarantee that the commodity hereof is made of the best materials and new brand with top
workmanship, and in accordance with quality specification stipulated in product Contract and
Appendix.
2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if
there are quality problems, we will provide solution by verbal or written communication. If the
problem is unsolved, our engineers will repair for you on site as soon as possible. The
maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.
Training plan: We will provide training for those who operate and maintain the freeze-drying
machines. Trained by supplier of the equipment in the process of installation and debugging,
people can operate and solve the basic mechnical problems independently. In addition, the persons
who work in general engineering such as refrigeration, boiler, and transformer substation shall be
undertaken by skilled workers.
