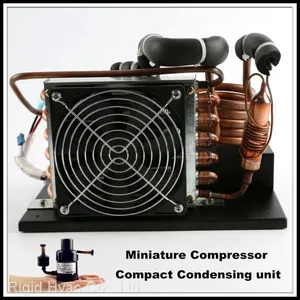

Liquid Chiller Module with Variable Speed Inverter compressor for Small Refrigeration System
Developed Mini-Chilled Water Unit is designed for Mobile & Compact Fluid Chiller.
This Compact Water Chiller Unit has very small size and low weight (2.3kgs), it can be applied in mobile or portable systems. And because of its low energy consumption, it's very suitable for small refrigeration applications, such as miniature freezer system and portable cooling system.
Power Supply: DC 48V.
Refrigerant: R134A.
Compressor: QX1403VDL (1.4cc; 48V).
Efficiency: 30% higher than ordinary copper coil evaporator.
Development: Plate Bed Evaporator replace Coil Evaporator.
Custom Cooling & Refrigeration Systems
RIGID specializes in the design of miniature refrigeration systems. We work directly with our customers to provide custom cooling solutions to meet their specific requirements. Rigid also provides solutions to meet client's challenging cooling requirements. Many of cooling systems & modules which Rigid has designed, are very well-received by customers.
RIGID DC Condensing Units' compact size and reliable performance make them ideally suited for mobile or portable cooling applications. Our patented groundbreaking miniature compressors are ideally suited for compact water chiller, cooling electronics, precision instrument, and in numerous commercial & personal appliance types, where space and weight are important.
| Technical Data | |
| Cooling Capacity | 100W~300W Adjustable |
| Heat Exchangers Material | Plate-bed Type Evaporator |
| Coolant Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Power Draw | 300 Watts |
| Voltage | 12V & 24V & 48V DC |
| Compressor | Brushless Inverter Compressor |
| Noise | |
| Weight | 5.1 lbs / 2.3kgs |
| Dimensions ( L x W x H ) | 25 x 16 x 13.5 mm ( 9.8 x 6.3 x 5.3 in ) |
| Orientation | Must operate within 30° of flat |
| Operating Ambient Temperature | 0°C to 50°C (32°F to 122°F) |
| Refrigerant | R-134a |
Key Benefits:
Stationary or portable available
Minimize weight&footprint&noise
Compact cooling unit for precise thermal control
Features:
Weight: 5.1 lbs / 2.3kgs
12V 24V 48V DC input
Inverter brushless compressor
Fully tested, simple to install unit
500Btu~1,600Btu cooling capacity
Applications:
Fluid Chiller
Water Dispenser
Portable Cooling systems
Water Cycling applications
Mini-Chilled Water System
and other mobile freezer systems
... ...
