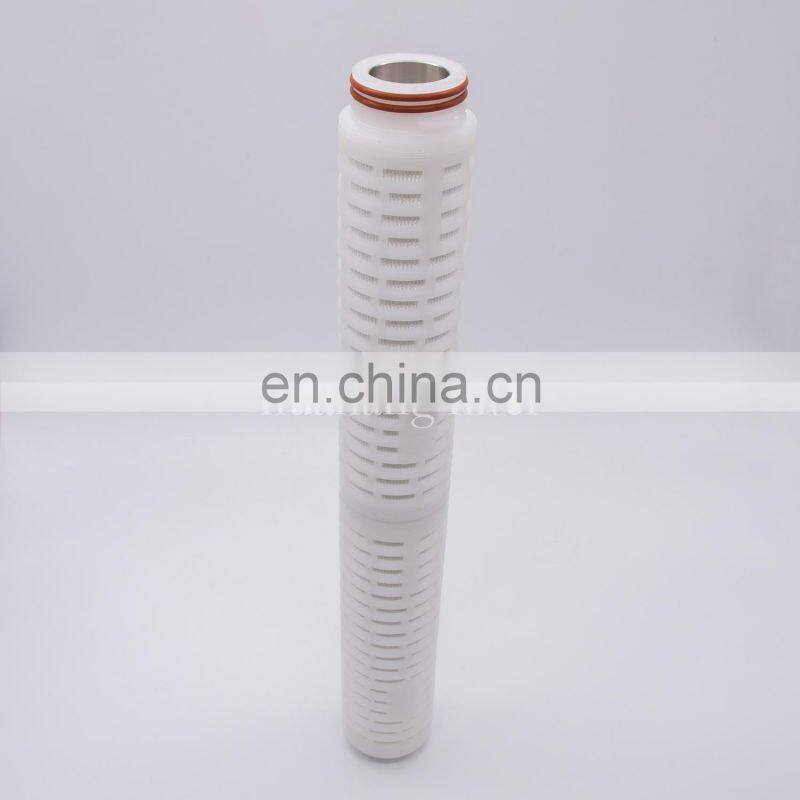

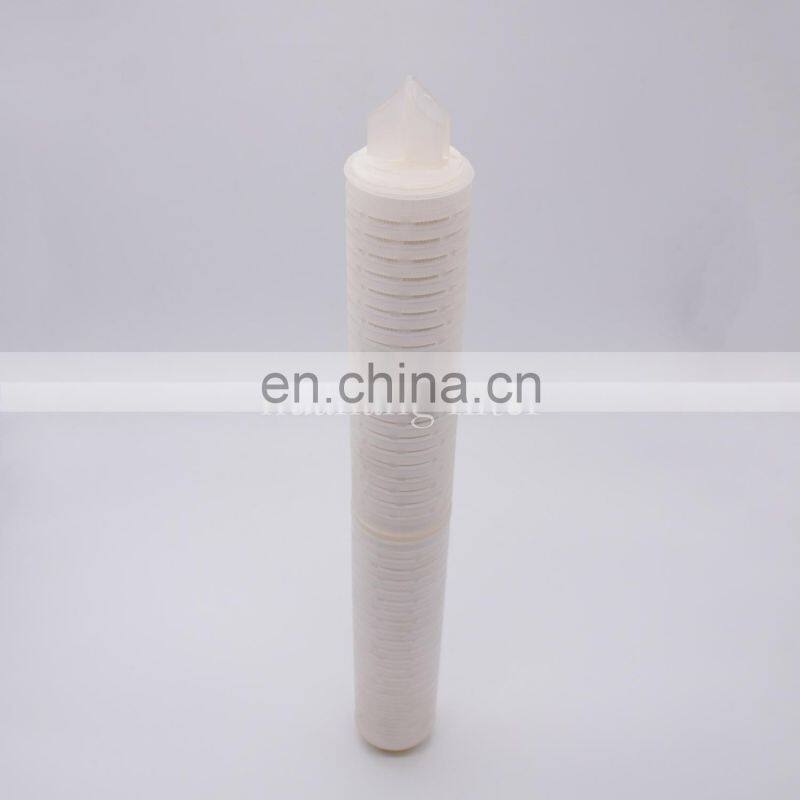

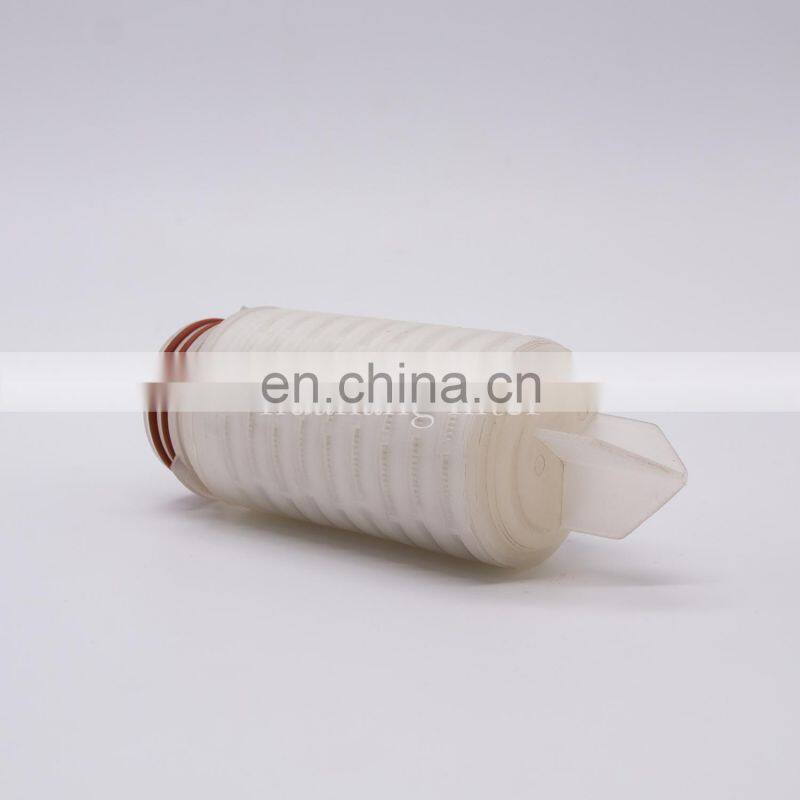

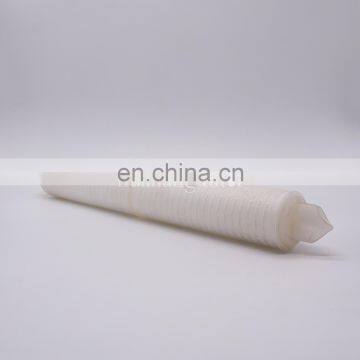

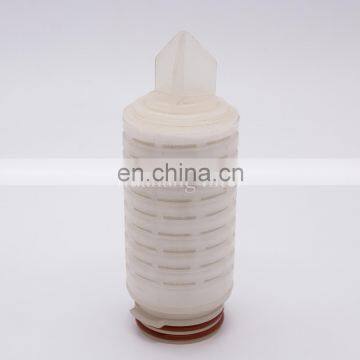

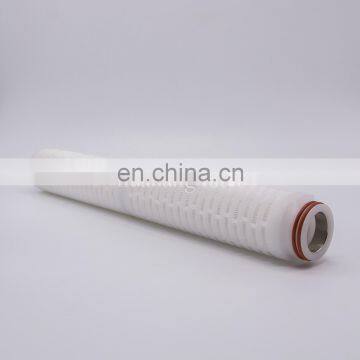

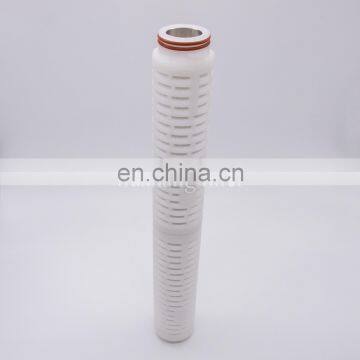

PP Pleated Cartridge Water Filters

1) Pleated design maximizes dirt-holding capacity

2) Low pressure drop, long usage life

3) Using 100% virgin polypropylene media with extensive applications

4) A wide micron rating range

• Medical industry: filtration for medical liquid, cell debris, biologicals
• Chemistry industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.
• Food industry: drinking water, mineral water, beverage, beer, wine,
• Electronic industry: pre-filtration on water system both for counter infiltration, deionized water.
• Gas filtration: compressed air, nitrogen, carbon dioxide

    Production details

Main technical parameters

Filtration precision: 0.1, 0.2, 0.45, 0.65, 0.85, 1, 3, 5, 10, 20μ

Filter Length: 250mm (10'254mm), 500mm (20'508mm), 750mm (30'762mm), 1000mm (40'1016)

Filter area: 0.5M2 (10'), 1.0M2 (20'), 1.5M2 (30'), 2.0M2 (40')

Filter jack: There are flat pressure, insert the card into three forms of type

                   Special specification is available

                   The maximum pressure difference: 0.4Mpa (25 °c, positive)

                   The maximum operating temperature: 60 °cSteam Sterilization: 121 °c, 30min

Application:

Electronic industry: pre-filtration system reverse osmosis water, deionized water pre-filtration system

Pharmaceutical Industry: Pharmaceutical, biotechnology and plasma products, filtration, compressed air and gas filtration

Food and beverage industry: mineral water, drinks, fruit juice, liquor filter

Chemical industry: organic solvents, ink filter

Oil industry: oil field water filter

Others: electroplating solution, metal cutting fluids, corrosion inhibitors and sensitive magnetic media filter

Packaging & Shipping

packing : each product is packaged outside of a plastic film, and then packed a white paper box, finally put into brown paper box.

port:  Shanghai or Qingdao

Company Information

XINXIANG HUAHANG FILTER CO., LTD

Our company specializing in all kinds of industrial filters for more than 10  years,own abundant technical force and excellent services. Our main produst are hydraulic oil filter series,air filter cartridge,water fliter cartridges. The best-selling products are substitutes for various brands of hydraulic oil filters. Our products are ISO9001, CE, SGS certified and exported to Asia, Europe, Middle East, America and other regions.

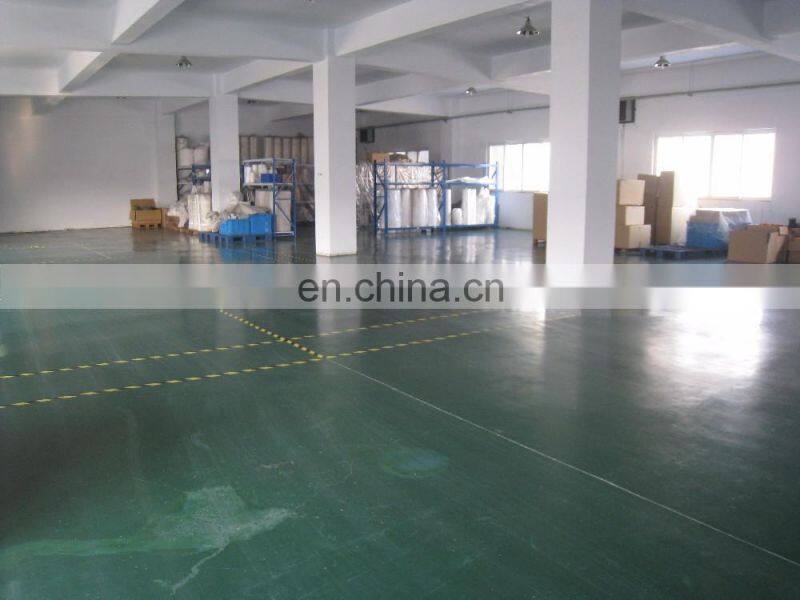

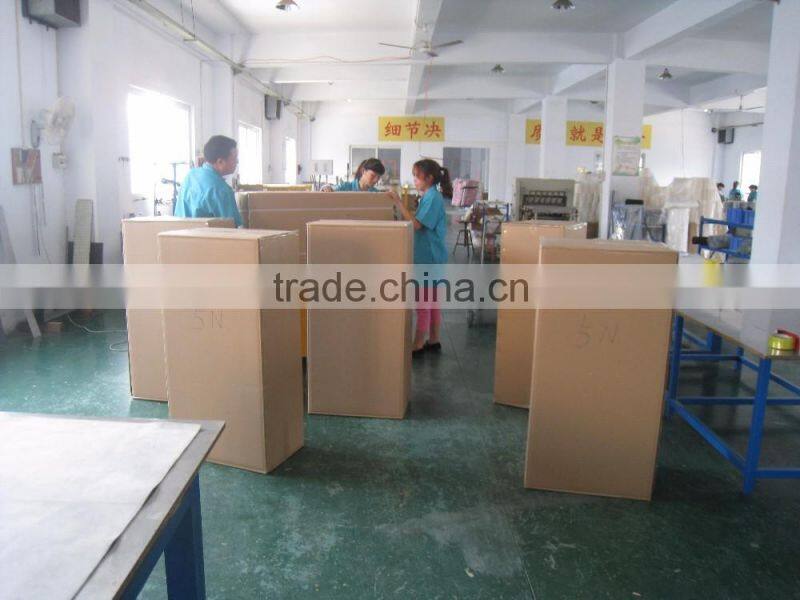

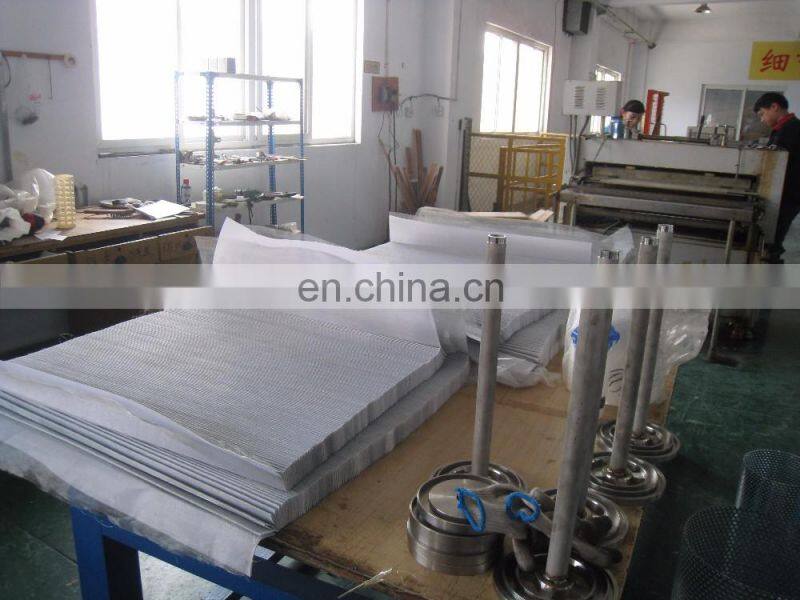

Factory
