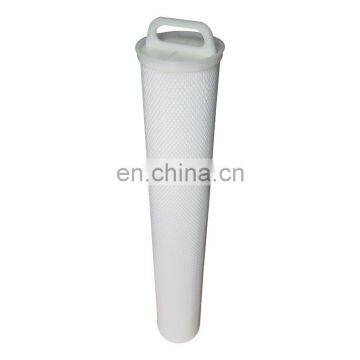

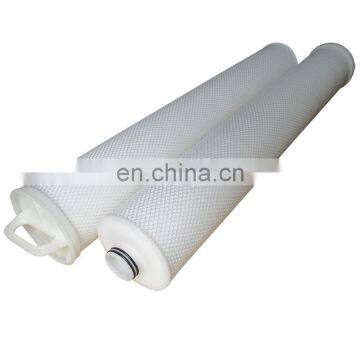

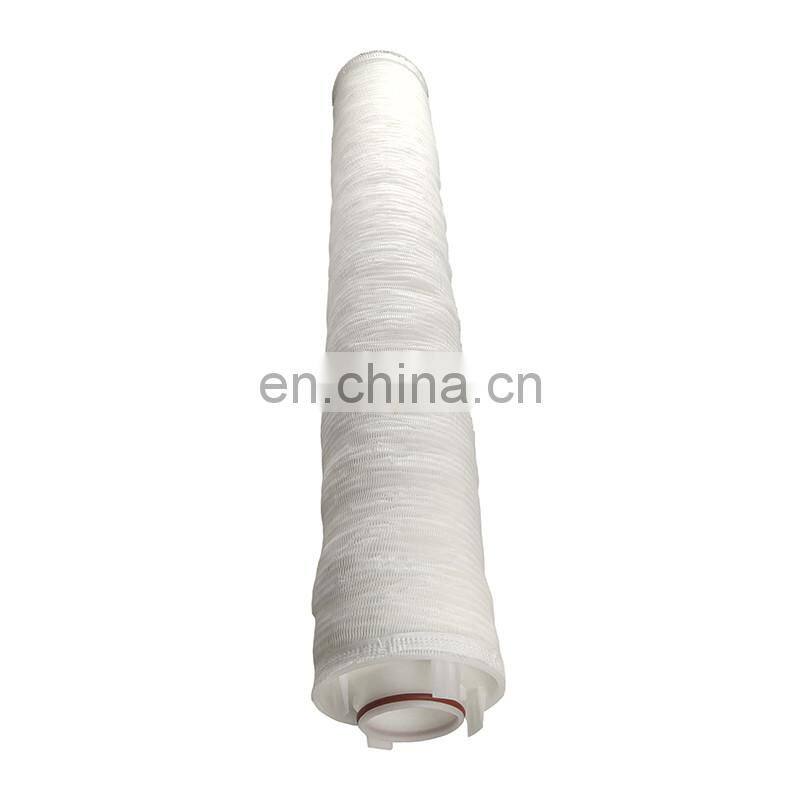

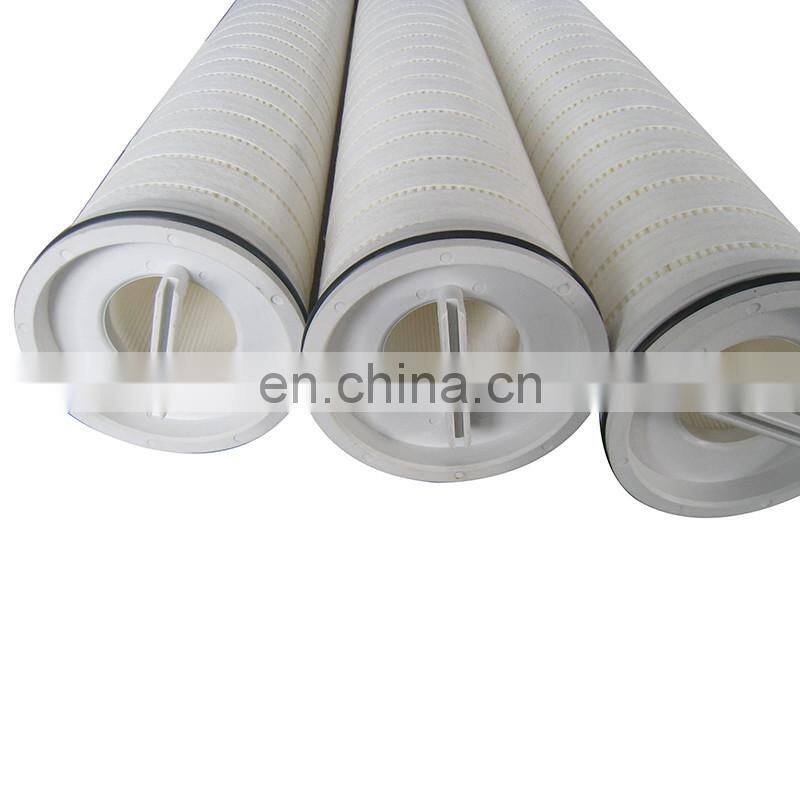

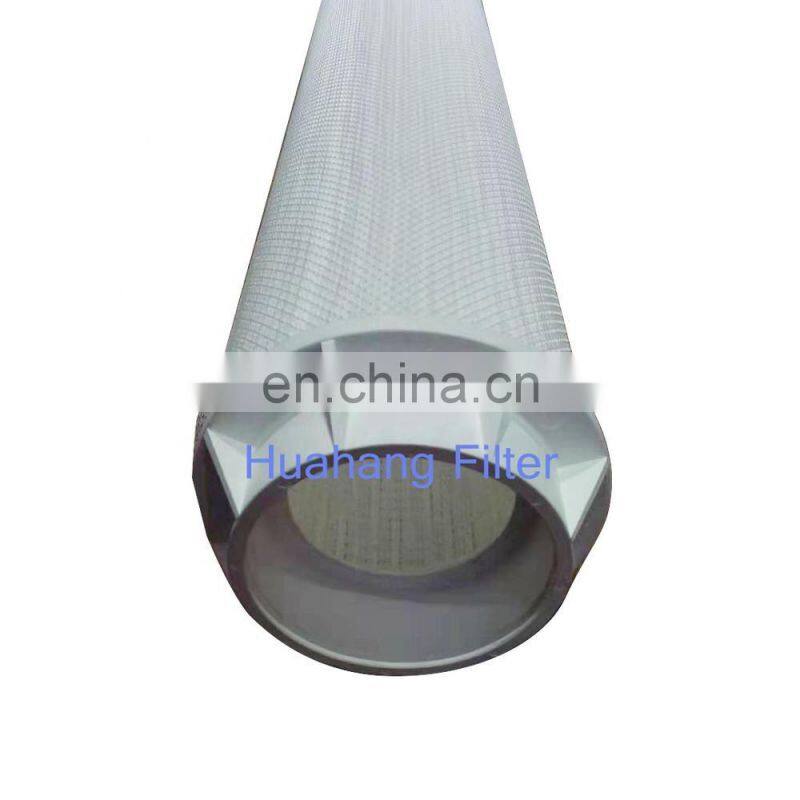

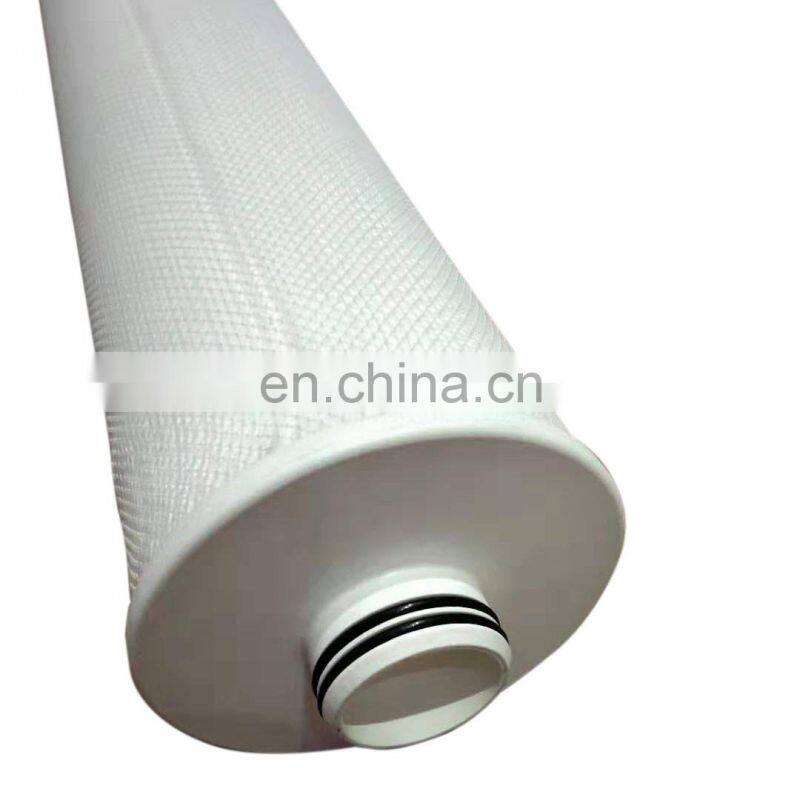

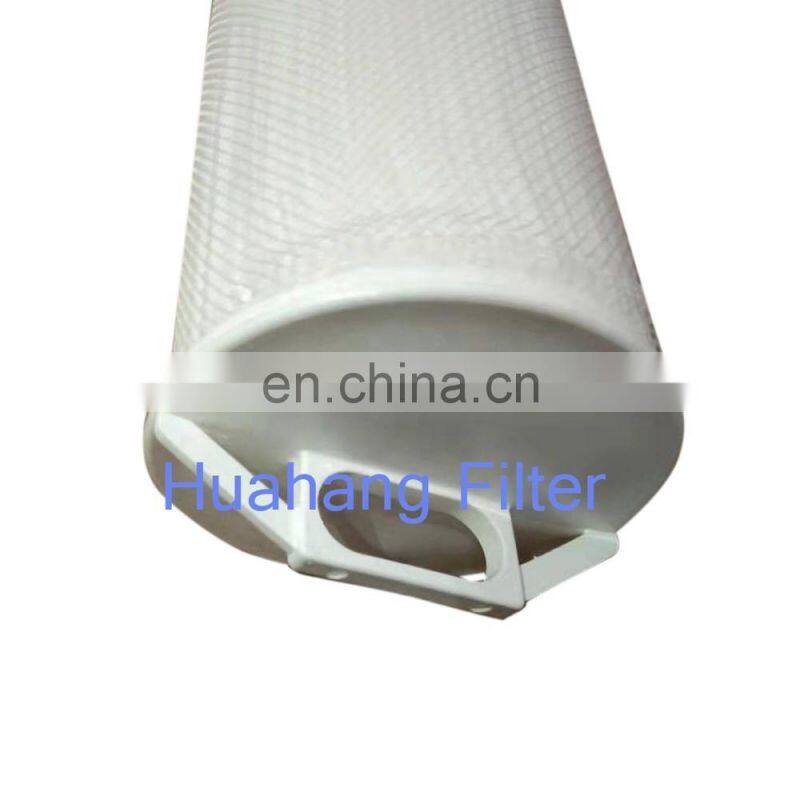

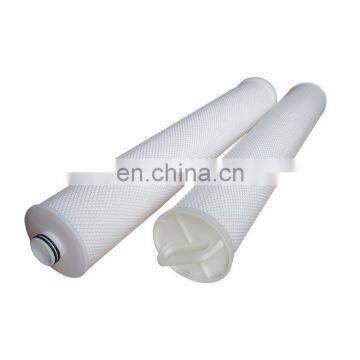

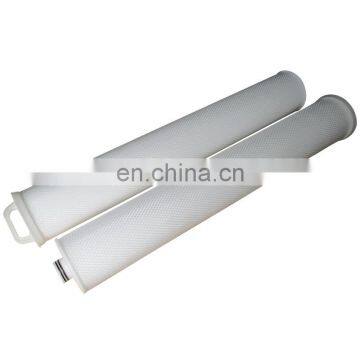

Industrial water filter cartridges HF40PP005D01 high flow filter element
Product description
Description of high flow water filter
Melt blown polypropylene microfber flter media provides high particle removal effciency for high quality fltration with broad chemical compatibility
Advantage&Features
High loading capacity for long life and lower cost fltration.
Fewer cartridges for fewer change-outs and lower labor cost.
Fewer seals, reduced risk of by pass resulting in high quality
fltration.
Extremely low disposal costs, less than a tenth of some cartridges
Details
Specifications of water filter cartridge
|
Filter Media |
Melt blown polypropylene microfber |
|
Filter Grades |
(90%) 0.5, 1, 5 and 10 µm |
|
Center Core(40’length only) |
Polypropylene,Cellulose |
|
End caps |
Glass Filled Polypropylene |
|
Support |
Polypropylene |
|
O-ring Options |
Buna-n, ePr, Silicone, Fluoroelastomer |
|
Cartridge Length |
39”, 60” |
|
Cartridge max OD |
6.5” |

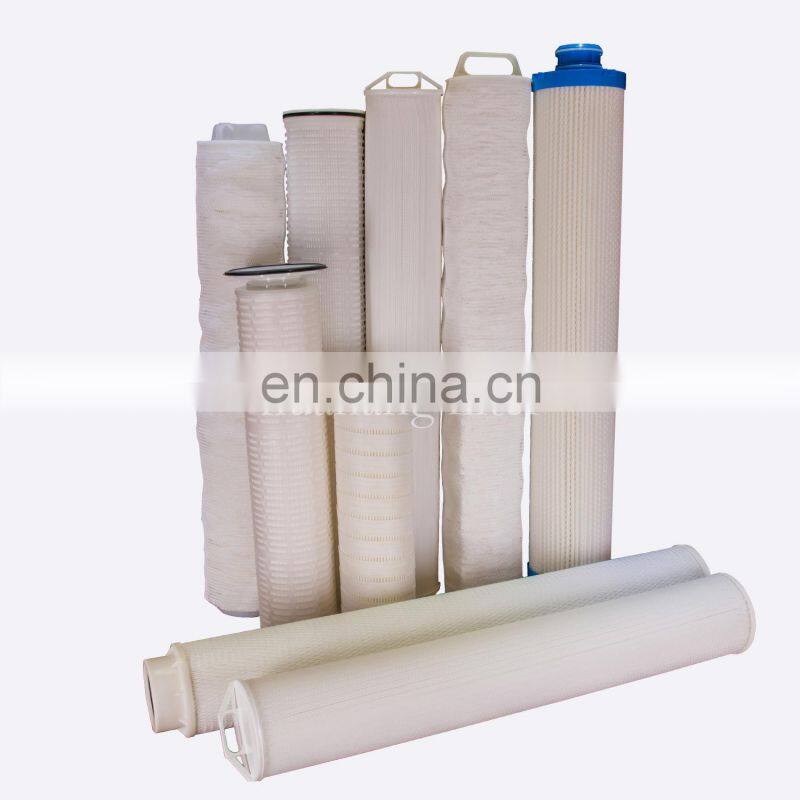

Other type replace high flow filter cartridge
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 20" (508mm) /40" (1016mm)/60" (1524mm) |
| Cartridge Max.OD: | 6.5"(165mm)/6"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 20" 660LPM |
| 40" 1300LPM | |
| 60" 1900LPM |
Parker
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 40" (1016mm) |
| Cartridge Max.OD: | 6.0"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton, |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 40" 1300LPM |
PAL
| OD | 6” (152mm) |
| Length | 20"/40"/60" |
| Micron | 0.1um~100 um |
| Maximum operating temperature | Pleated/melt-blown pp: 82℃ |
| Pleated glass fiber: 121℃ | |
| Maximum operating differential pressure | Pleated/melt-blown pp: 3.44bar@82℃ |
| Pleated glass fiber: 3.44bar@121℃ | |
| Suggestion design flow | 40": ≤15m3/h |
| 60": ≤25m3/h |
