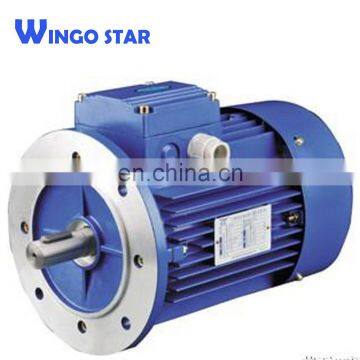

Product Introduction:
The installation dimension and power level of Y2 series motors accord with the IEC standard, which is consistent with the German DIN42673 standard. As well as the Y series motors, the protection level of the series motors is IP54, and the cooling method is IC41l, continuous working system (S1). F grade insulation is adopted and the temperature rise is evaluated by B level (except 315L2-2, 4355 all specifications are evaluated according to F grade), and the load noise index is required.
The rated voltage of Y2 series motor is 380V, and the rated frequency is 50Hz. Power 3kwt for the following Y connection, other power are delta connection method. The operating location of the motor is not more than 1000m, and the ambient air temperature varies with the season, but it does not exceed 40 degrees C, and the lowest ambient air temperature is -15 C.
Brief introduction for products:
Basic Data | ||
No. | Brand Name | Wingo Star |
1 | Model Number | Y,Y2, IE3,MS,YS,YVF,JR,YZR,YEJ.YCJ |
2 | Type | Three Phase Electric Motor |
3 | Structure | Asynchronous Motor |
4 | Place of Origin | Hebei, China (mainland) |
5 | Insulation Class | Class B/F/H |
6 | Frequency | 50HZ,60HZ |
7 | Efficiency | IE2 & IE3 |
8 | Output Power | 0.18KW-355KW or on request |
9 | Phase | Three Phase |
10 | Pole | 2P, 4P, 6P, 8P, 10P, 12P |
11 | Wire | 100% copper |
12 | Protection Class | IP44/IP54 |
13 | Cooling Method | IC411,IC416,IC0041,IC01,IC611,ICW81A |
14 | Duty: | S1 (continuous) |
15 | Certification | ISO, SABS, CE |
16 | Protect Feature | Totally Enclosed |
17 | AC Voltage | 380V, 600V or on request |
18 | Ambient temperature | -15℃≤0≤40℃ |
19 | Altitude: | Not exceed 1000m |
20 | Mounting Type | B3 B5 B35 B14 Etc |
21 | Standard | Confirm to IEC international standard |
22 | Installation | we will send detailed instructions together with the Motors |
23 | Packaging Details | Packed with export requirement protect the motors and convenient for transport. |
24 | Delivery Details | 25-30 Days |
