Automatic window 12v high torque dc worm gear motor ET-WGM46
- 4000 Piece / Pieces per Month
- shenzhen and hk
- T/T Credit Card
You May Like
-
High torque customized shaft 40W DC Brushed Planetary Gear motor 12v
-
mini motor 12 volt planetary gear motor 16mm diameter
-
12v dc geared motor gearmotor for feeders
-
dc brushless gear reduction gearbox motor 12v
-
High speed dc Planetary gear motor DC BLDC brushless motor
-
12v 8mm shaft dc geared gear motor 30rpm Brushless DC Motor
Product Details
| Brand Name | ETONM | Place of Origin | Guangdong, China | |
| Model Number | ET-WGM46 |
Product Description
ET-WGM46=== Automatic window 12v high torque dc worm gear motor ET-WGM46
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 3~24VDC -Speed: 0.8~40rpm -Torque: 1~40kg.cm | -Carbon Brushes -Precise Metal Gears -CW/CCW Running -Low noise | -Home and office Automation |

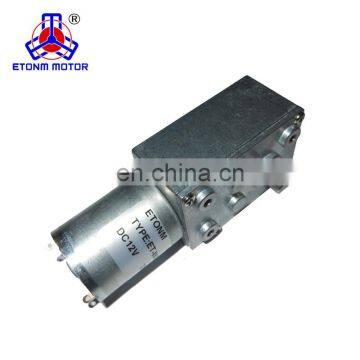

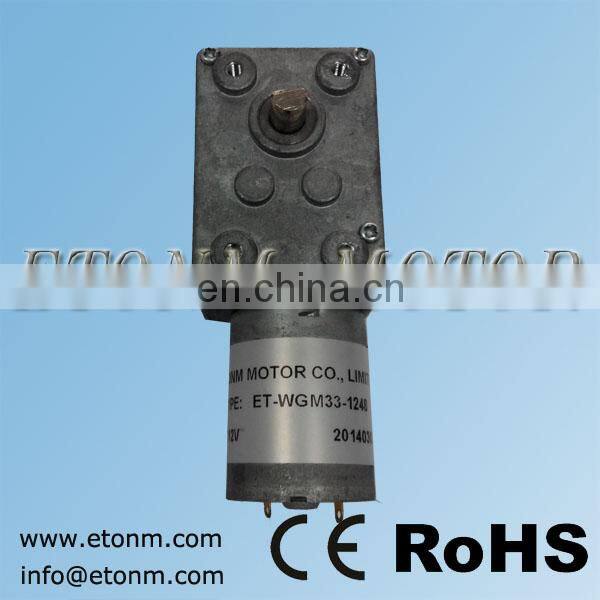

Motor pictures:
Motor ratio:
| Gear Ratio Stage | 3 | 4 | 5 |
| Gear Ratio | 205 | 317 | 1587 |
| 700 | 2450 | ||

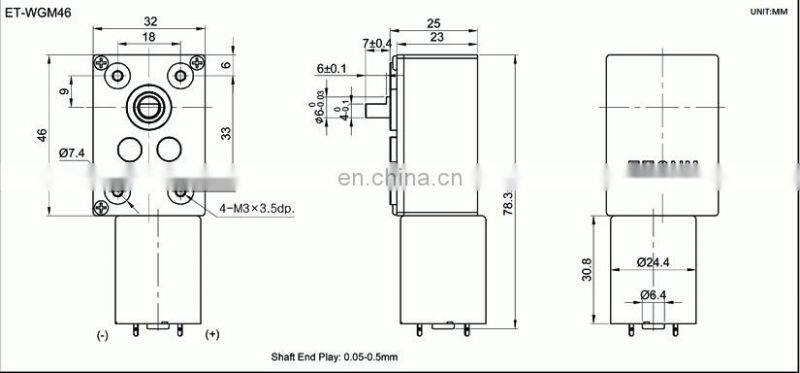

Motor Drawing:
Motor datasheet:
| Model | Voltage(VDC) | No Load Speed(r/min) | Rated Speed(r/min) | Rated Torque(kg.cm) |
| ET-WGM46-1230 | 12 | 30 | 24 | 2.7 |
| ET-WGM46-1219 | 12 | 19 | 15.8 | 4.0 |
| ET-WGM46-128.5 | 12 | 8.5 | 7 | 8.5 |
| ET-WGM46-123.8 | 12 | 3.8 | 3 | 18 |
| ET-WGM46-122.5 | 12 | 2.5 | 2 | 27 |
Packing:
1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Shipping:
10-15 days after received your payment. Usually we use DHL and Fedex.
We are can make it according to your requirements.
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Production Capacity:
5000pcs gear motors per day, 10k piece dc motor per day.
Our Advantage:
1.High efficiency up to 80%-90%.
2.Low noise, long life, small volume.
3.High Reliability.
4.Customized.
Main Equipment:
Winding Machine, Dynamic Balance Machine, Spot-welder Machine, Knurling Machine, Automatically butts Welding Machine, Magnetizing Machine, Precision Lathe, Grinding Machine, Milling Machine, Lathe, Punth....
Quality Control:
Main customers:
1.Siemens 2.Sepura 3.Jaccuzi 4.MAUER Locking 5. CES Locking 6.Hanna 7.Hardi 8.TRIMARK Automatic 9.Hanna Instruments
we can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
Q: Can you make a motor customized?
Yes, we can and we welcome that.
Q: What is teh deliverly time of sample and the cargo?
For samples, generally it needs 3-5 working days with regular specification, and 15-20 working days for the cargo; If not, then it needs about 7-10 working days for samples with special specification, 25 working days for the cargo.
Q:What is your MOQ?
Generally, if it is for dc gear motor, then the MOQ is 1k; while 5k for the dc motor. But our company have policy to support first trial order with small quantity.
Q:Do you have motors in stocks?
NO, all the motor is made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
For small amount like samples, we would like the paypal; and TT for the big order. We also accept 50% deposit, balance paid before the shipping .
Q:What is the shipping method?
For samples and small orders, we recommend the Express, like DHL, FEdEX and TNT. It is very fast, safe and relatively cheap; We go with FOB/CIF/CFR terms if shippment by sea and air.
Q:What information do you need if we need a recommendation on motor?
We need to know the basic specification of the motor:Dimesnion, Application, Voltage, Speed and Torque. If you have samples, it would be better you send us your samples. We can test and find them out.
