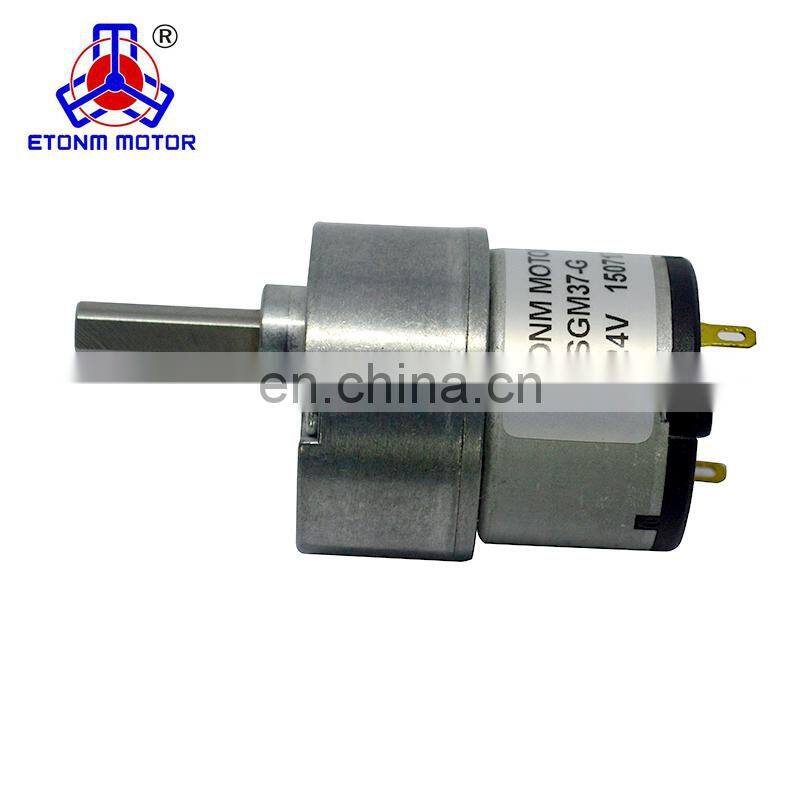

ET-SGM37G==== low noise 37mm gear motor 24v
Etonm Motor entered Micro Motor Industry since 2001, designed and developed series of DC Gear Motor (Gearhead Motor, Geared motor, Geard motor), there are ET-SGM12, ET-SGM16, ET-SGM20, ET-SGM25, ET-SGM27, ET-SGM37, Each serie has several types.
1. Gear ratio from 10/1 to 90/1.
2. Motor with stainless steel shaft.
3. Gearbox diameter is 37mm.

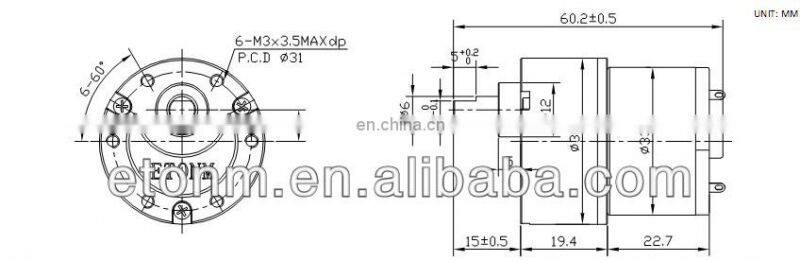

4.Advantage: motor with samll dimension(find the motor's drawin).
| Model | Voltage(V) | No Load Speed(r/min) | Rated Speed(r/min) | Rated Torque(kg.cm) | Stall Torque(kg.cm) |
| ET-SGM37G-06330 | 6 | 330 | 260 | 0.19 | 0.8 |
| ET-SGM37G-06110 | 6 | 110 | 86 | 0.5 | 2.4 |
| ET-SGM37G-0636 | 6 | 36 | 25 | 2.2 | 7 |
| ET-SGM37G-24600 | 24 | 600 | 495 | 0.25 | 1 |
| ET-SGM37G-24200 | 24 | 200 | 154 | 0.62 | 3 |
| ET-SGM37G-2466.6 | 24 | 66.6 | 48 | 2.5 | 9 |
- ATM
- Coin Slector
- Coin Feeder
- Vending machine
- Robotics
- Towel Dispenser
- Soft Paper Dispenser
- Automatic Closetool
- Sanitary Bin
- Household Electronic Appliance
Packing: Usually we use foam box, cartain to pack the motors.
Shipping: Sample in 3-7 working days, cargo in 7-25 working days by sea or by air both OK.
Port: SZ or HK
Terms: EXW, FOB, CIF...
We can customize the motor according to customer's project, If you have any question about the motor, please feel free to contact us, your inquiry will be welcomed.
